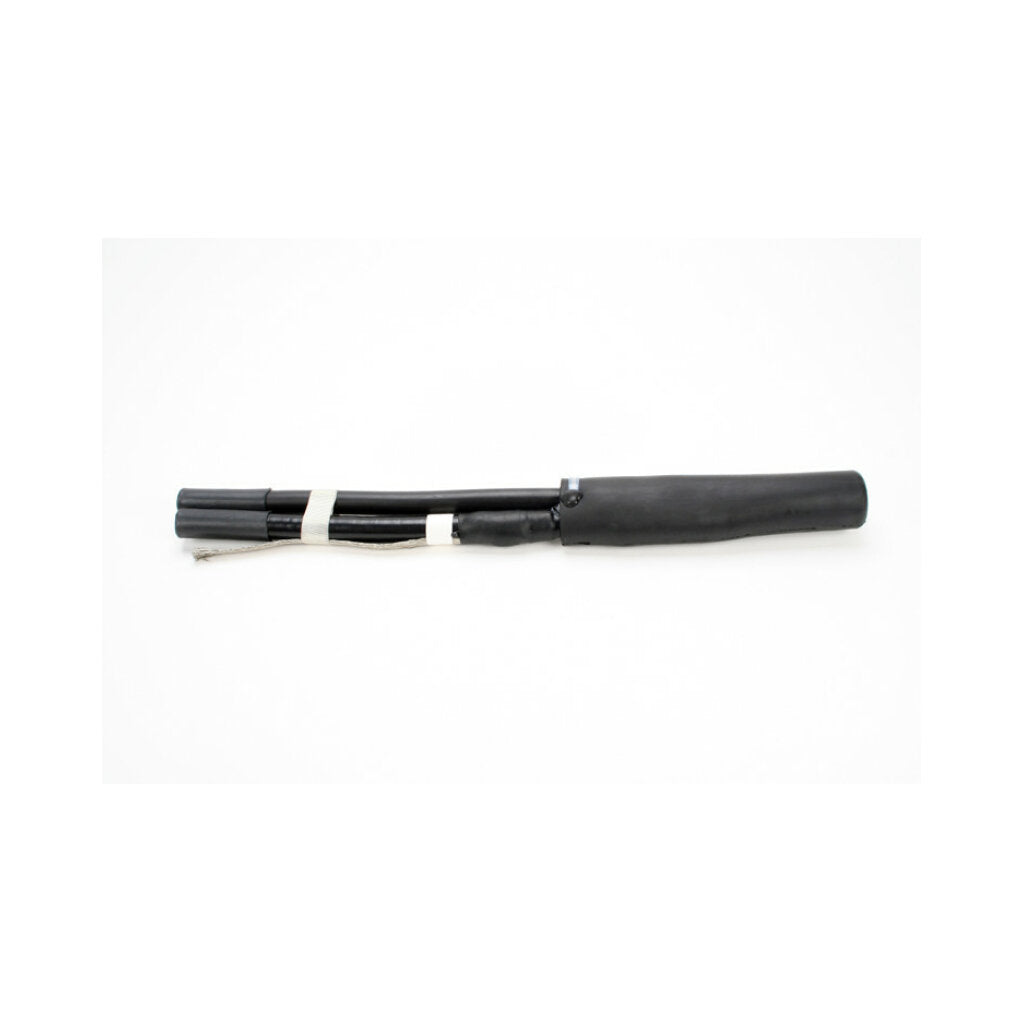

Dimensions and Specifications
Conductor Sizes (Imperial)
1000 kcmil
Inner Diameter Of Boot To Size Of Cables
1.60 in
Inner Diameter Of Boot To Size Of Cables (Metric)
40.6 mm
Insulation Outside Diameter
0.53-0.88 Inch
Insulation Outside Diameter Range
0.53-0.88 in
Insulation Outside Diameter Range (Metric)
13.5-22.4 mm
Maximum Bolt Length
1-1/4 in
Maximum Bolt Length (Metric)
31.8 mm
Maximum Conductor Size (Imperial)
1000 kcmil
Maximum Conductor Size (Metric)
500 mm²
Maximum Feeder Lead Size
250 kcmil
Maximum Lug Length
4 in
Maximum Lug Length (Metric)
101.6 mm
Maximum Motor Lead Size
250 kcmil
Maximum Operating Voltage
8 kV
Minimum Conductor Size (Imperial)
500 kcmil
Minimum Conductor Size (Metric)
240 mm²
Typical Splice Length
35 in
Typical Splice Length (Metric)
889 mm
Voltage
5 kV - 8 kV
Voltage Application
Medium Voltage
Maximum Conductor Size Imperial
1000 kcmil
Maximum Conductor Size Metric
500 mm²
Minimum Conductor Size Imperial
500 kcmil
Minimum Conductor Size Metric
240 mm²
