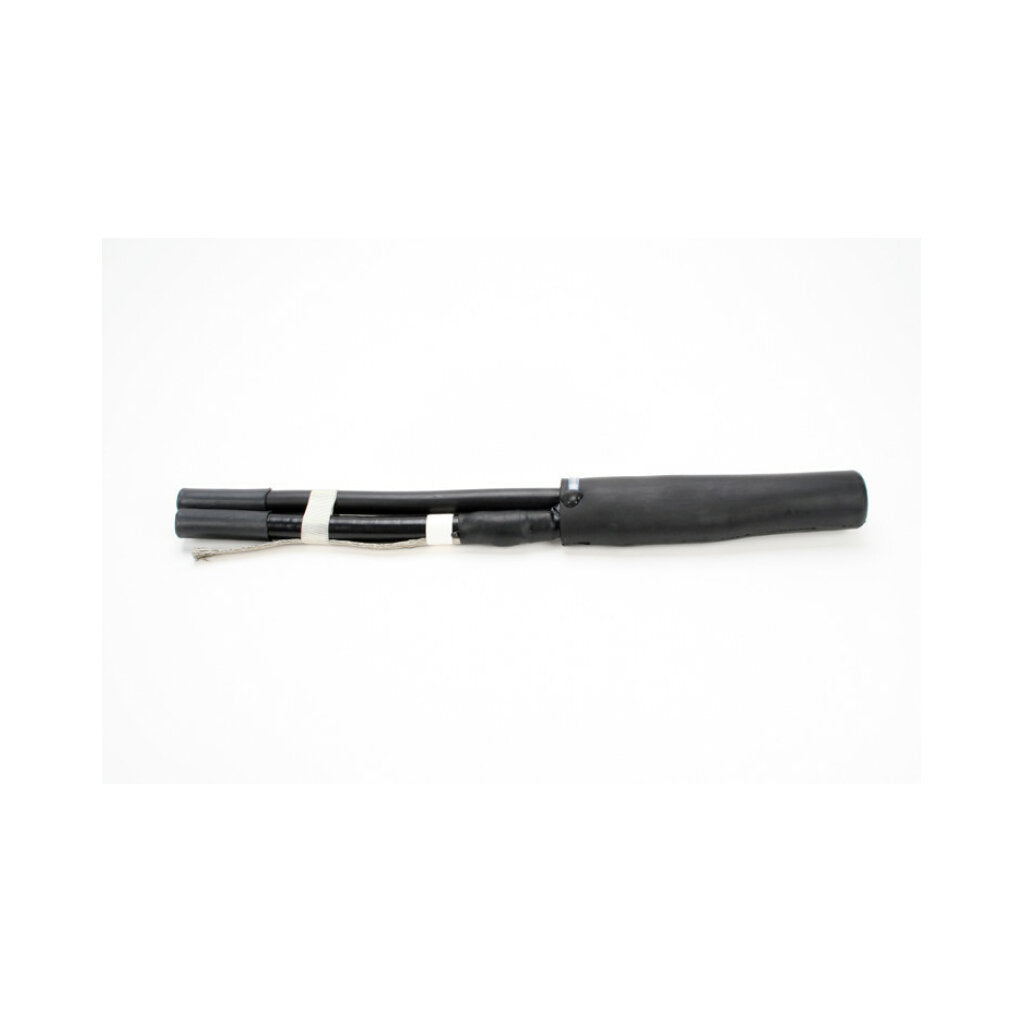

Dimensions and Specifications
Conductor Sizes (Imperial)
350 kcmil
Inner Diameter Of Boot To Size Of Cables
2.06 in
Inner Diameter Of Boot To Size Of Cables (Metric)
52.3 mm
Insulation Outside Diameter
0.75-1.12 Inch
Insulation Outside Diameter Range
0.75-1.12 in
Insulation Outside Diameter Range (Metric)
19.1-28.4 mm
Maximum Bolt Length
1-1/2 in
Maximum Bolt Length (Metric)
38.1 mm
Maximum Conductor Size (Imperial)
400 kcmil
Maximum Conductor Size (Metric)
185 mm²
Maximum Feeder Lead Size
500 kcmil
Maximum Lug Length
5-1/2 in
Maximum Lug Length (Metric)
139.7 mm
Maximum Motor Lead Size
500 kcmil
Maximum Operating Voltage
8 kV
Minimum Conductor Size (Imperial)
118 kcmil
Minimum Conductor Size (Metric)
60 mm²
Typical Splice Length
33 in
Typical Splice Length (Metric)
838 mm
Voltage
5 kV - 8 kV
Voltage Application
Medium Voltage
Maximum Conductor Size Imperial
400 kcmil
Maximum Conductor Size Metric
185 mm²
Minimum Conductor Size Imperial
118 kcmil
Minimum Conductor Size Metric
60 mm²
