Dimensions and Specifications
Barrel Inside Diameter
0.090 Inch
Maximum Conductor Size (Imperial)
14 AWG
Maximum Conductor Size (Metric)
2.08 mm²
Maximum Insulation Outer Diameter (Imperial)
0.17 in
Maximum Insulation Outer Diameter (Metric)
3.7 mm
Maximum Insulation Outside Diameter
0.145 in
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
221 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Minimum Conductor Size (Imperial)
16 AWG
Minimum Conductor Size (Metric)
1.31 mm²

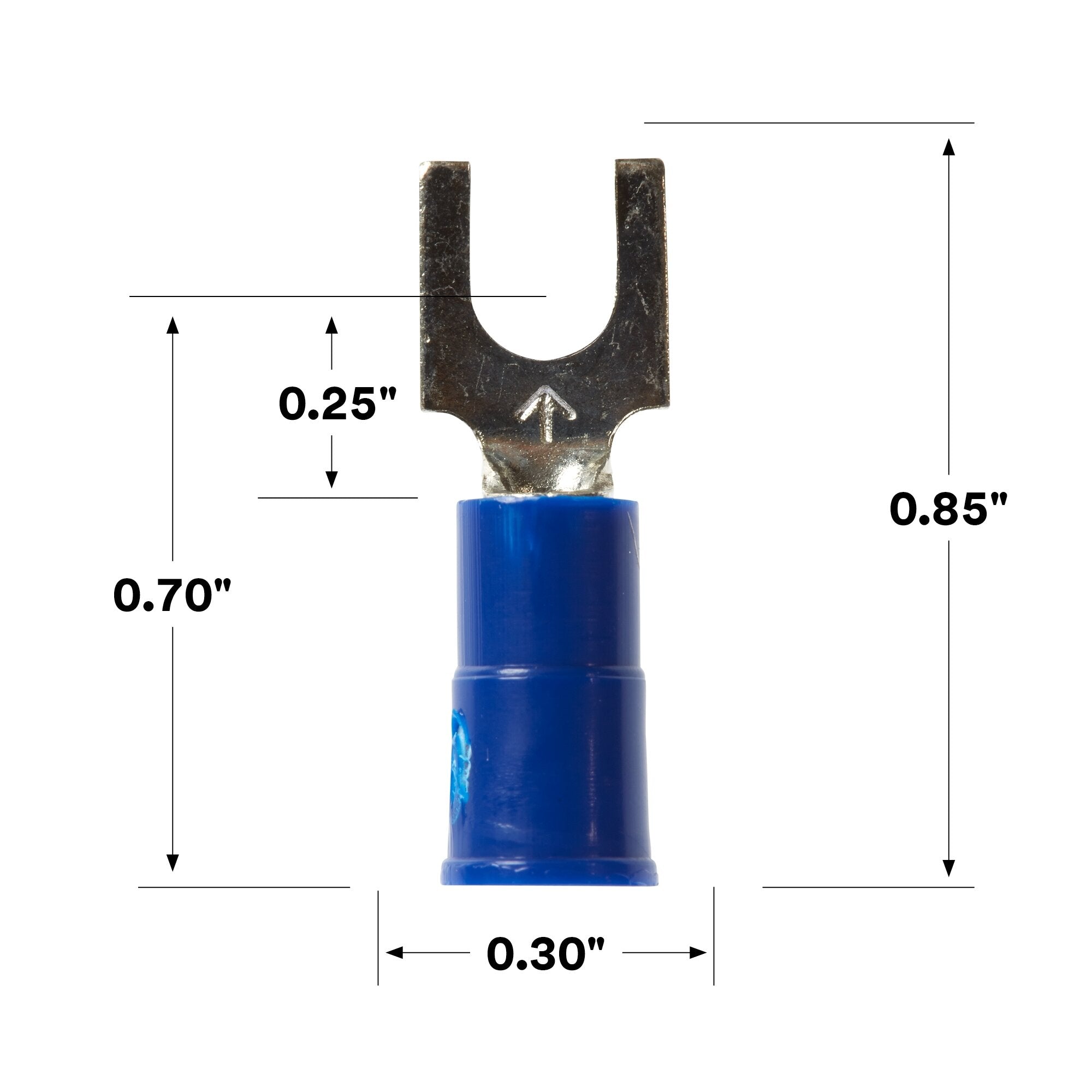

Overall Length (Imperial)
0.85 in
Overall Length (Metric)
21.59 mm
Overall Width (Imperial)
0.3 in
Overall Width (Metric)
7.62 mm
Stud Size
#8
Maximum Conductor Size Imperial
14 AWG
Maximum Conductor Size Metric
2.08 mm²
Maximum Insulation Outer Diameter Metric
3.7
Minimum Conductor Size Imperial
16 AWG
Minimum Conductor Size Metric
1.31 mm²
Overall Length Imperial
0.85
Width
0.09 yd
0.08 m
Height
0.12 yd
0.11 m
Length
0.04 yd
0.04 m
Volume
21.94 cubic inch
359.53 cm3
Weight
3.49 oz
98.8 g
