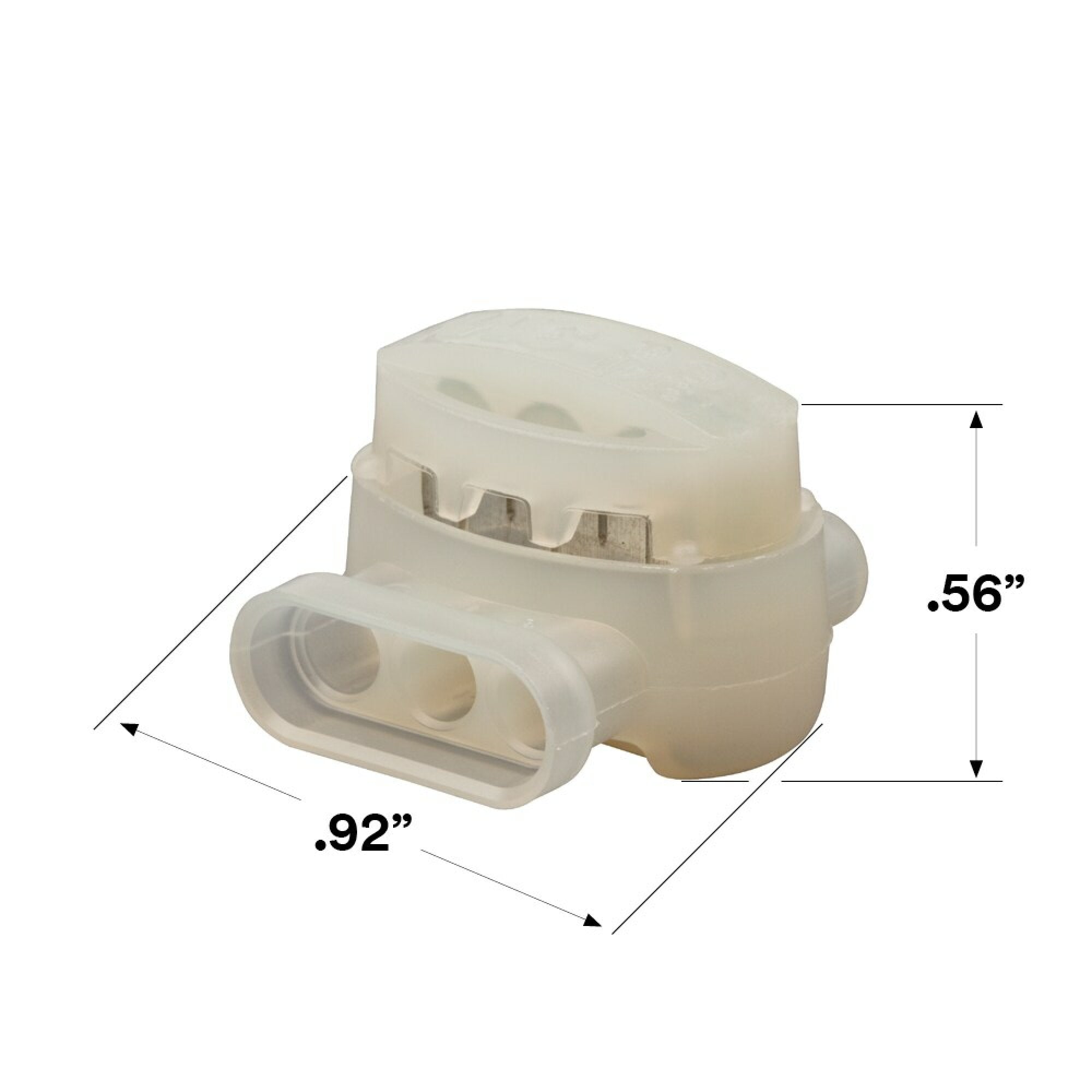

Dimensions and Specifications
Conductor Sizes (Imperial)
22 AWG
Conductor Sizes (Metric)
2.5 mm²
Insulation Outer Diameter (Imperial)
0.15 in
Maximum Conductor Size (Imperial)
14 AWG
Maximum Conductor Size (Metric)
2.5 mm²
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
221 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
.34 mm²
Run Maximum Insulation Outer Diameter (Imperial)
0.155 in
Run Maximum Insulation Outer Diameter (Metric)
3.9 mm
Tap Maximum Insulation Outer Diameter (Imperial)
0.155 in
Tap Maximum Insulation Outer Diameter (Metric)
3.9 mm
Voltage Application
Low Voltage
Conductor Sizes Imperial
22 AWG
14 AWG
Maximum Conductor Size Imperial
14 AWG
Maximum Conductor Size Metric
2.5
Minimum Conductor Size Imperial
22 AWG
Minimum Conductor Size Metric
.34 mm²
