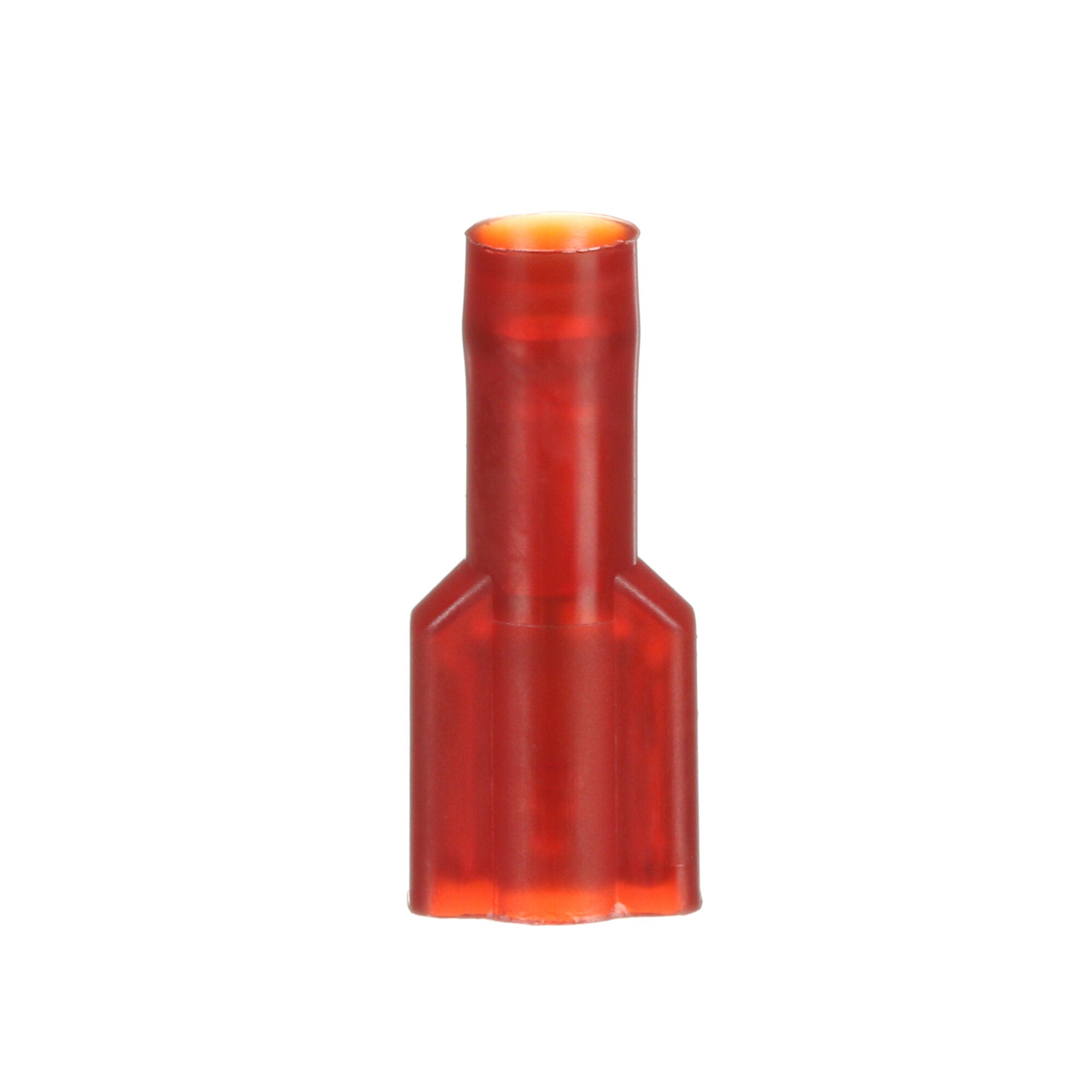

Dimensions and Specifications
Barrel Inside Diameter
0.080 Inch
Barrel Length (Imperial)
0.25 Inch
Connection Width (Imperial)
0.25 in
Connection Width (Metric)
6.35 mm
Diameter (D)
0.23 Inch
Mates With Female Width
0.250 Inch
Mates With Male Tab Width (W')
0.25 Inch
Maximum Conductor Size (Imperial)
18 AWG
Maximum Conductor Size (Metric)
1 mm²
Maximum Insulation Outer Diameter (Imperial)
0.145 in
Maximum Insulation Outer Diameter (Metric)
3.7 mm
Maximum Insulation Outside Diameter
0.145 in
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
221 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
.34 mm²
Overall Diameter (Imperial)
0.23 in
Overall Length (Imperial)
0.86 in
Overall Length (Metric)
21.84 mm
Overall Width (Imperial)
0.37 in
Pad Width
0.25 in
Tab Width
0.250
Barrel Length Imperial
0.25 Inch
Conductor Sizes Imperial
22 - 18 AWG
Maximum Insulation Outer Diameter Metric
3.7
Overall Length Imperial
0.86
Width
3.63 in
9.21 cm
Height
5.13 in
13.02 cm
Length
9.38 in
23.81 cm
Volume
174.17 cubic inch
2854.13 cm3
Weight
32 oz
907.18 g
