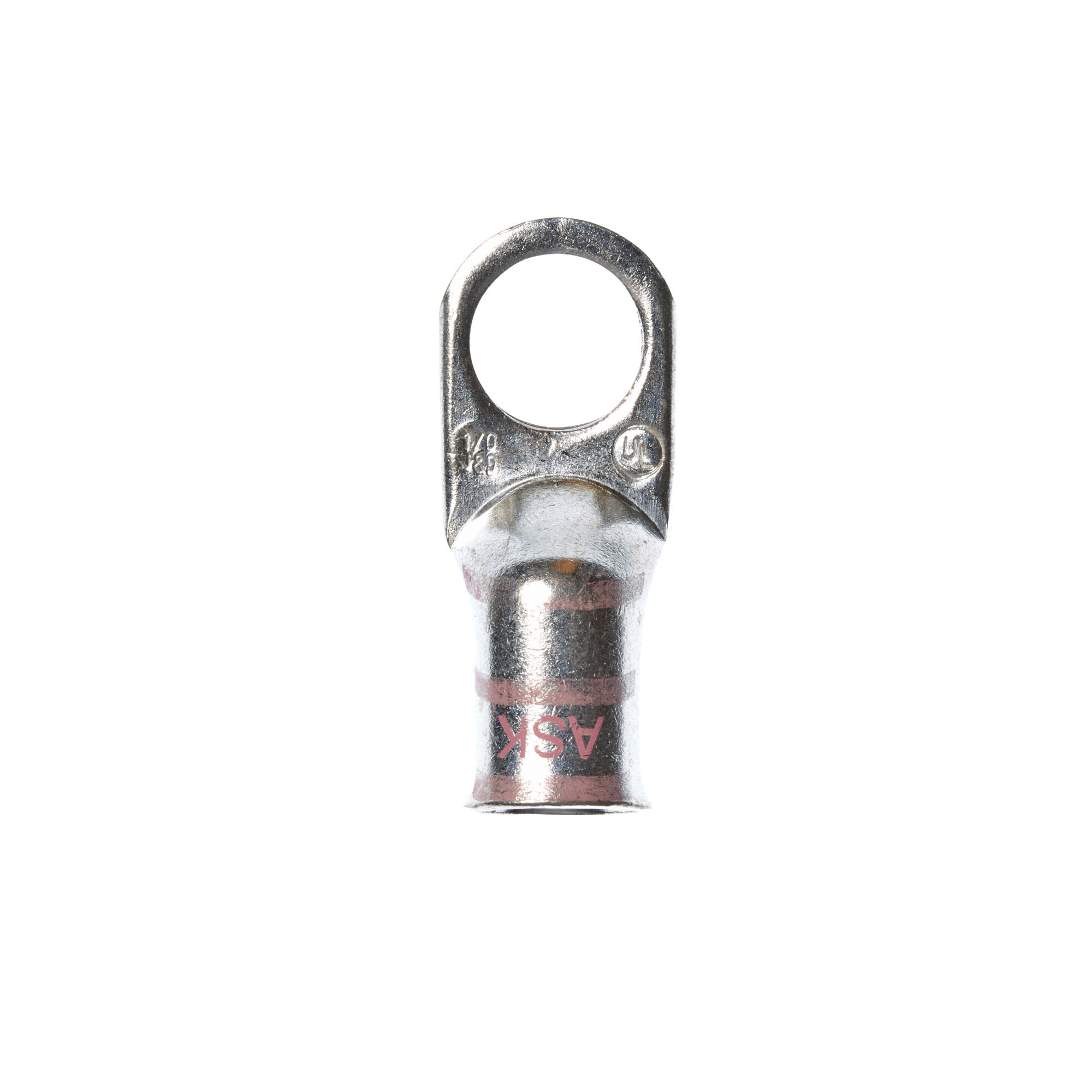

3M Scotchlok Large Gauge Ring Tongue, Copper Non-Insulated SeamlessMC1/0-12RX

by 3M
Original price $565.99 - Original price $565.99
Original price
$565.99
$565.99 - $565.99
Current price $565.99
Free shipping
3M Scotchlok Non-Insulated Copper Seamless Compression Lug Ring Tongue has a non-insulated, seamless barrel and ensures an ideal fit while offering reliable and safe performance. Copper construction offers good conductivity and a tin-plated finish resists... Read more
This product is made to order. Please allow 10 days for production.

Overview

3M

3M Scotchlok Large Gauge Ring Tongue, Copper Non-Insulated SeamlessMC1/0-12RX

3M Scotchlok Non-Insulated Copper Seamless Compression Lug Ring Tongue has a non-insulated, seamless barrel and ensures an ideal fit while offering reliable and safe performance. Copper construction offers good conductivity and a tin-plated finish resists corrosion.3M™ Scotchlok™ Non-Insulated Copper Seamless Compression Lug Ring Tongue provides electrical connection to a pre-stripped end of a stranded wire. UL Listed and RoHS 2011/65/EU Compliant.
  • Non-insulated, seamless barrel ensures a secure fit and offers reliable performance
  • Offers electrical connection to a pre-stripped end of a stranded wire
  • Made of copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire
  • UL Listed and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
Scotchlok™
Barrel Style
Seamless
Terminal Style
Compression Lugs
Country Of Origin
United States
Lead Time
10 days
California Residents
Dimensions and Specifications
Barrel Inside Diameter
0.41 Inch
Maximum Conductor Size (Imperial)
1/0 AWG
Maximum Conductor Size (Metric)
53.5 mm²
Minimum Conductor Size (Imperial)
1/0 AWG
Minimum Conductor Size (Metric)
53.5 mm²
Minimum Stud Diameter (Imperial)
0.5 in
Minimum Stud Diameter (Metric)
12.7 mm
Overall Length (Imperial)
1.84 in
Overall Width (Imperial)
0.75 in
Stud Size
1/2 Inch
Maximum Conductor Size Imperial
1/0 AWG
Maximum Conductor Size Metric
53.5
Minimum Conductor Size Imperial
1/0 AWG
Minimum Conductor Size Metric
53.5 mm²
Overall Length Imperial
1.84
Other Details
Clearance (C)
0.42 Inch
Units Per Case
100.0
Material and Composition
Insulation Material
Non-insulated
Color and Appearance
Color Code
Pink
Packaging and Shipping
Case Quantity
100
