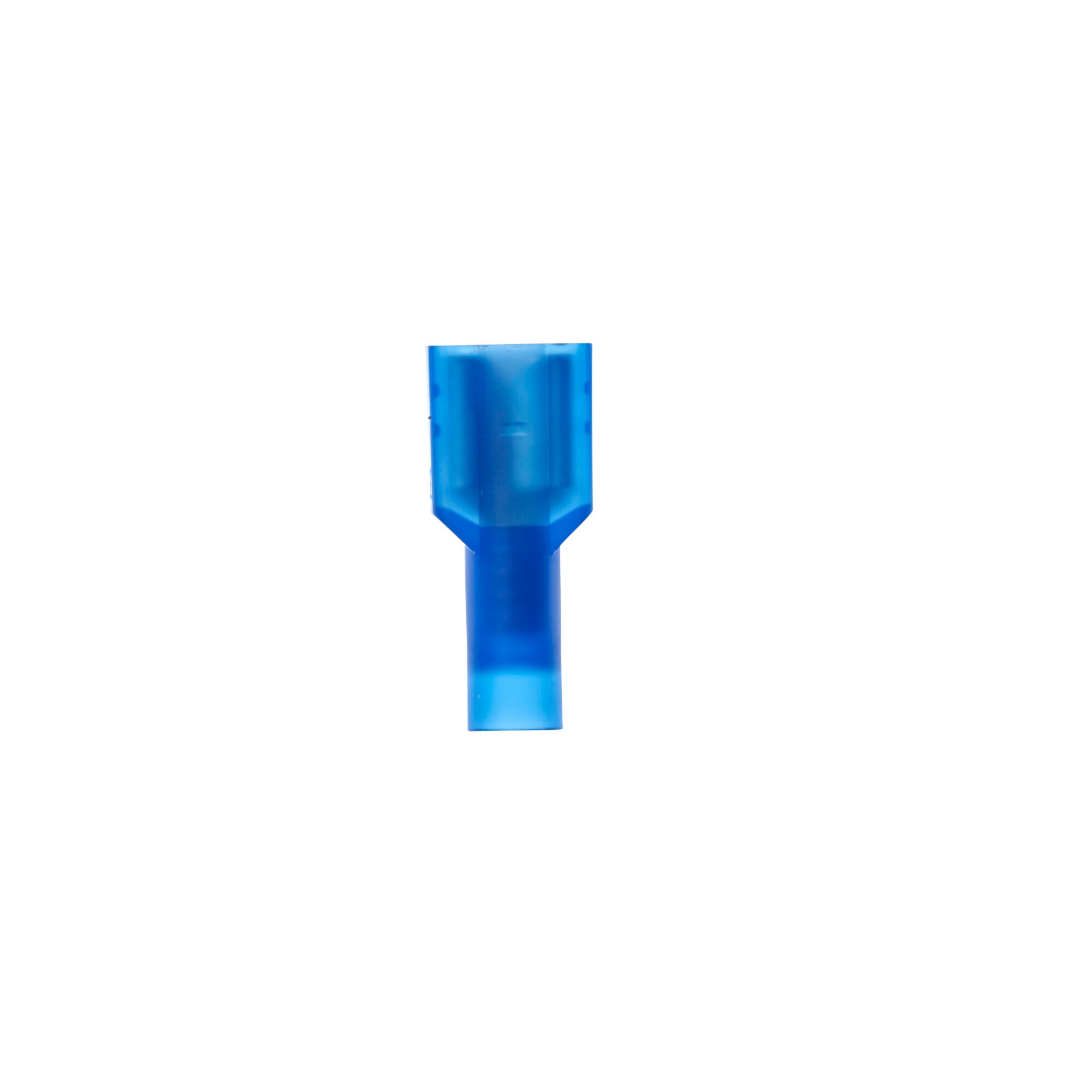

Dimensions and Specifications
Barrel Inside Diameter
0.085 Inch
Barrel Length (Imperial)
0.25 Inch
Connection Width (Imperial)
0.25 in
Connection Width (Metric)
6.35 mm
Diameter (D)
0.3 Inch
Male Tab Width (W')
0.25 Inch
Maximum Conductor Size (Imperial)
14 AWG
Maximum Conductor Size (Metric)
2.5 mm²
Maximum Insulation Outer Diameter (Imperial)
0.17 in
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Minimum Conductor Size (Imperial)
16 AWG
Minimum Conductor Size (Metric)
1.5 mm²
Operating Temperature Range (Celsius)
-40 °C to 105 °C
Overall Diameter (Imperial)
0.3 in
Overall Length (Imperial)
0.95 in
Overall Width (Imperial)
0.44 in
Pad Width
0.25 in
Tab Width
0.187
Barrel Length Imperial
0.25 Inch
Conductor Sizes Imperial
16 - 14 AWG
Overall Length Imperial
0.95
