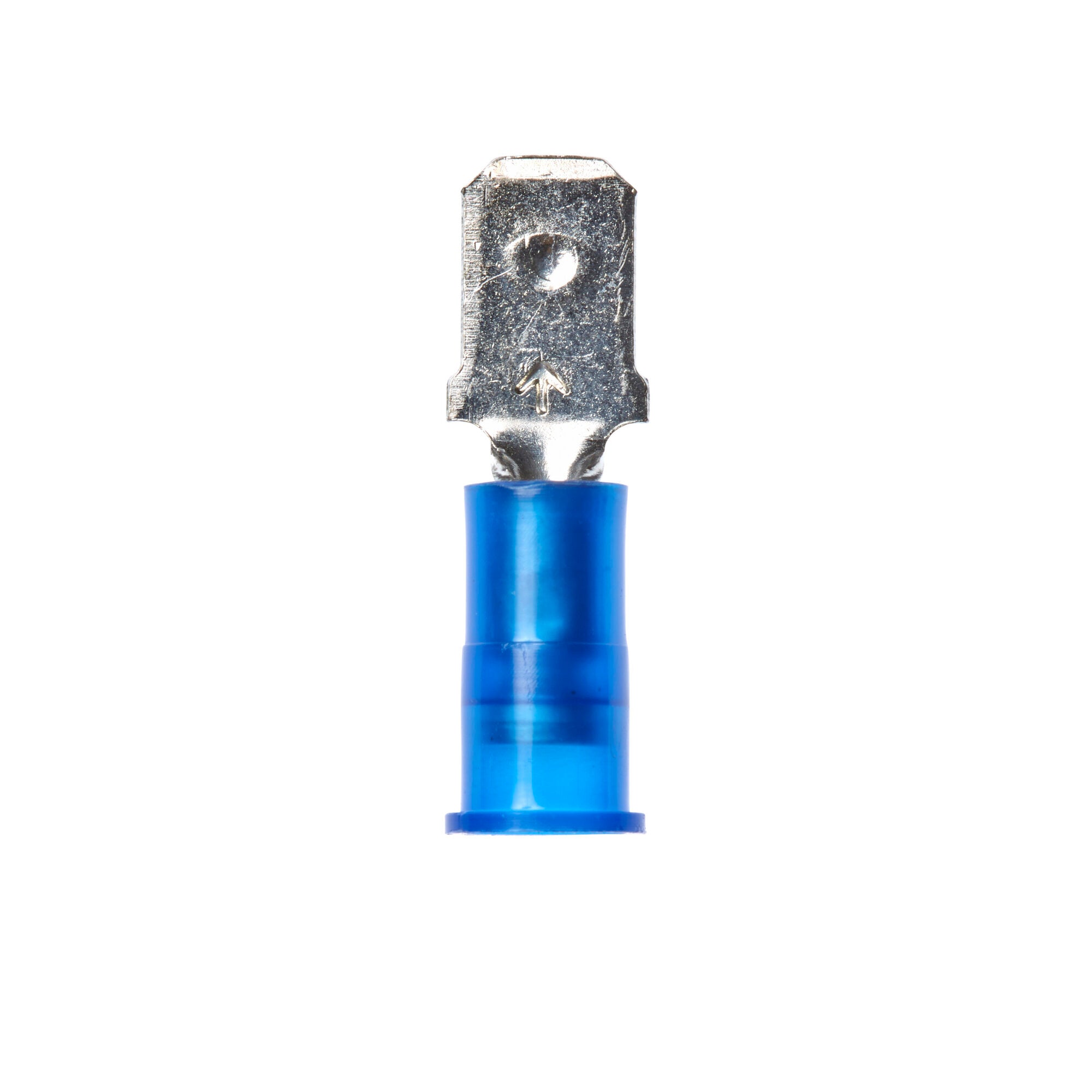

3M Scotchlok Male Disconnect, Nylon Insulated w/Insulation GripMNG14-250DMK

by 3M
No reviews
Original price $320.99 - Original price $320.99
Original price
$320.99
$320.99 - $320.99
Current price $320.99
Free shipping
3M Fork Terminal has a wider tongue for use on free-standing studs. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated... Read more
This product is made to order. Please allow 8 days for production.

Overview

3M

3M Scotchlok Male Disconnect, Nylon Insulated w/Insulation GripMNG14-250DMK

3M Fork Terminal has a wider tongue for use on free-standing studs. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.3M™ Fork Terminal withstands a maximum temperature of 347 degrees F (175 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Wider tongue design for use on free-standing studs
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
Scotchlok™
Barrel Style
Insulation Grip
Connection Type
Wire
Disconnect Type
Male
Terminal Style
Standard
Terminal Type
Disconnect
Country Of Origin
United States
Lead Time
8 days
California Residents
Dimensions and Specifications
Barrel Inside Diameter
0.085 Inch
Barrel Length (Imperial)
0.25 Inch
Bullet Diameter
0.156
Connection Width (Imperial)
0.25 in
Connection Width (Metric)
6.35 mm
Male Tab Width (W')
0.25 Inch
Maximum Conductor Size (Imperial)
14 AWG
Maximum Conductor Size (Metric)
2.5 mm²
Maximum Insulation Outer Diameter (Imperial)
0.17 in
Maximum Insulation Outer Diameter (Metric)
3.7 mm
Maximum Insulation Outside Diameter
0.145 in
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
221 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Minimum Conductor Size (Imperial)
16 AWG
Minimum Conductor Size (Metric)
1.5 mm²
Overall Diameter (Imperial)
0.23 in
Overall Length (Imperial)
0.94 in
Pad Width
0.25 in
Voltage Application
Low Voltage
Barrel Length Imperial
0.25 Inch
Conductor Sizes Imperial
16 - 14 AWG
Maximum Insulation Outer Diameter Metric
3.7
Overall Length Imperial
0.94
Other Details
CSA File Number
LR22190
Fastener Orientation
Male
Flame Retardant
No
Grease Filling Against Corrosion
No
UL File Number
E70512
Units Per Case
1000.0
Material and Composition
Insulation Material
Nylon
Material
Plastic
Color and Appearance
Insulation Color
Blue
Product Color
Blue
Packaging and Shipping
Packaging
1000 per bulk box
