3M Scotchlok Pin Vinyl Insulated, MVU18-47PX-A

by 3M
$378.91
No Reviews
Available to Order
3M Scotchlok Pin Vinyl Insulated, MVU18-47PX-A
3M Scotchlok Pin Vinyl Insulated, MVU18-47PX-A

3M Scotchlok Pin Vinyl Insulated, MVU18-47PX-A

by 3M
$378.91
No Reviews
Available to Order
(0 in cart)
100% Secure payments

Your details are protected and safe with us.

You may also like

About this item

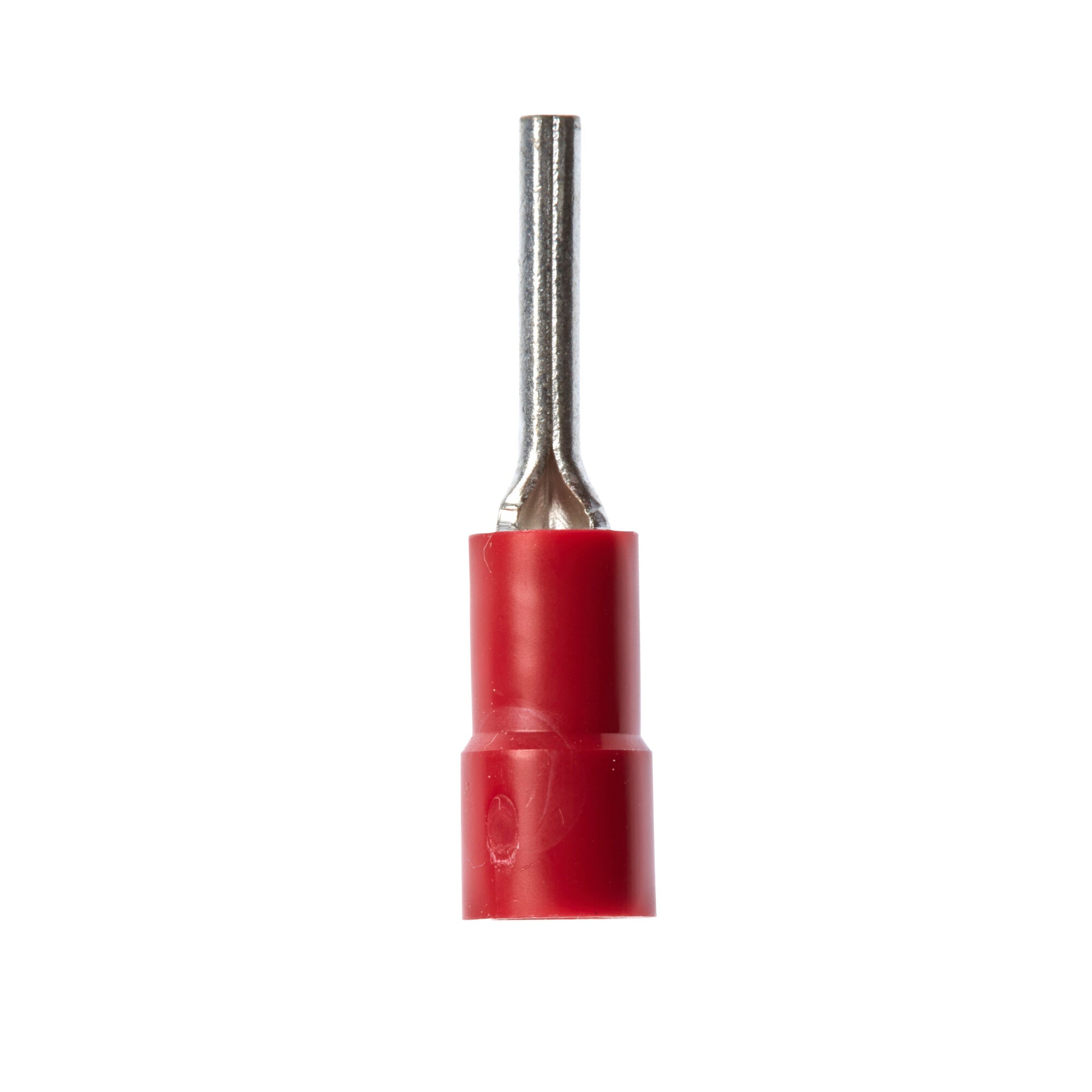

3M Scotchlok Pin Vinyl Insulated, MVU18-47PX-A

3M

Features

Downloads

No files available.

Key points

  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Provides quick connection for set screws or clamps that are used to make electrical contact
  • Made of copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 167 degrees F (75 degrees C)
These 3M Scotchlok Color-Coded Pin Terminals deliver dependable performance for building wire work rated up to 600V and for fixtures, luminaires and signs rated 1000V or lower. Their tin plating defends against corrosion damage, while the copper structure furthers excellent conductivity. The red vinyl exterior protects against temperatures up to 167 degrees F (75 degrees C).3M™ Pin Terminal is color-coded for quick and easy identification of the wire size required. The butted-seam barrel is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
