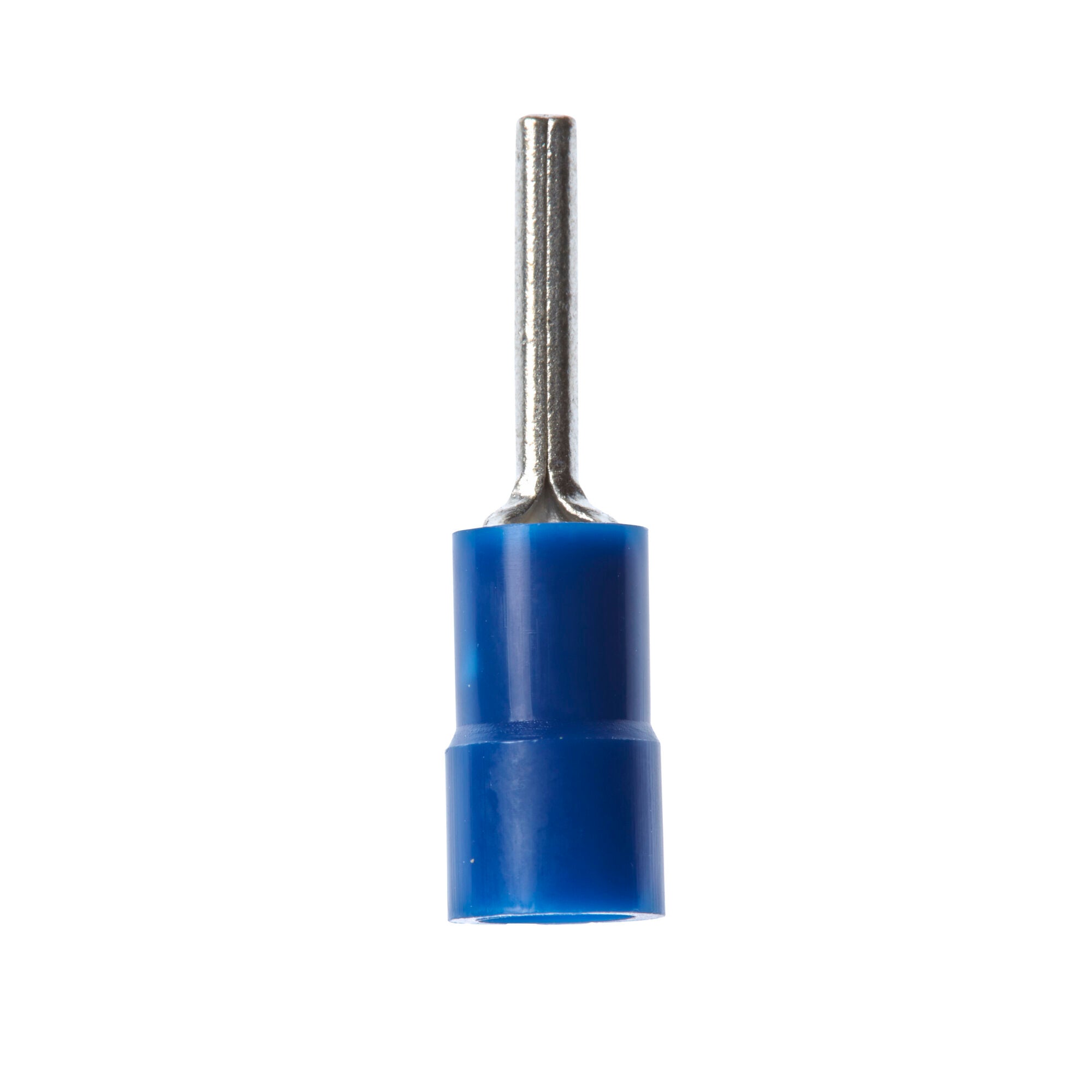

3M Scotchlok Pin Vinyl Insulated, MVU14-47PX-A

by 3M
$82.81
No Reviews
Available to Order
3M Scotchlok Pin Vinyl Insulated, MVU14-47PX-A
3M Scotchlok Pin Vinyl Insulated, MVU14-47PX-A

3M Scotchlok Pin Vinyl Insulated, MVU14-47PX-A

by 3M
$82.81
No Reviews
Available to Order
(0 in cart)
100% Secure payments

Your details are protected and safe with us.

You may also like

About this item

3M Scotchlok Pin Vinyl Insulated, MVU14-47PX-A

3M

Features

Downloads

No files available.

Key points

  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Provides quick connection for set screws or clamps that are used to make electrical contact
  • Made of copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 167 degrees F (75 degrees C)
3M Scotchlok Color-Coded Pin Terminals are dependable performers used where set screws or clamps provide connectivity. Their butted-seam barrels hold wires tight when crimped, and polyvinyl chloride insulators provide stress relief for long-lasting connections. Tin plating offers corrosion resistance, and theyre UL listed, CSA Certified and RoHS 2011/65/EU Compliant.3M™ Pin Terminal is color-coded for quick and easy identification of the wire size required. The butted-seam barrel is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
