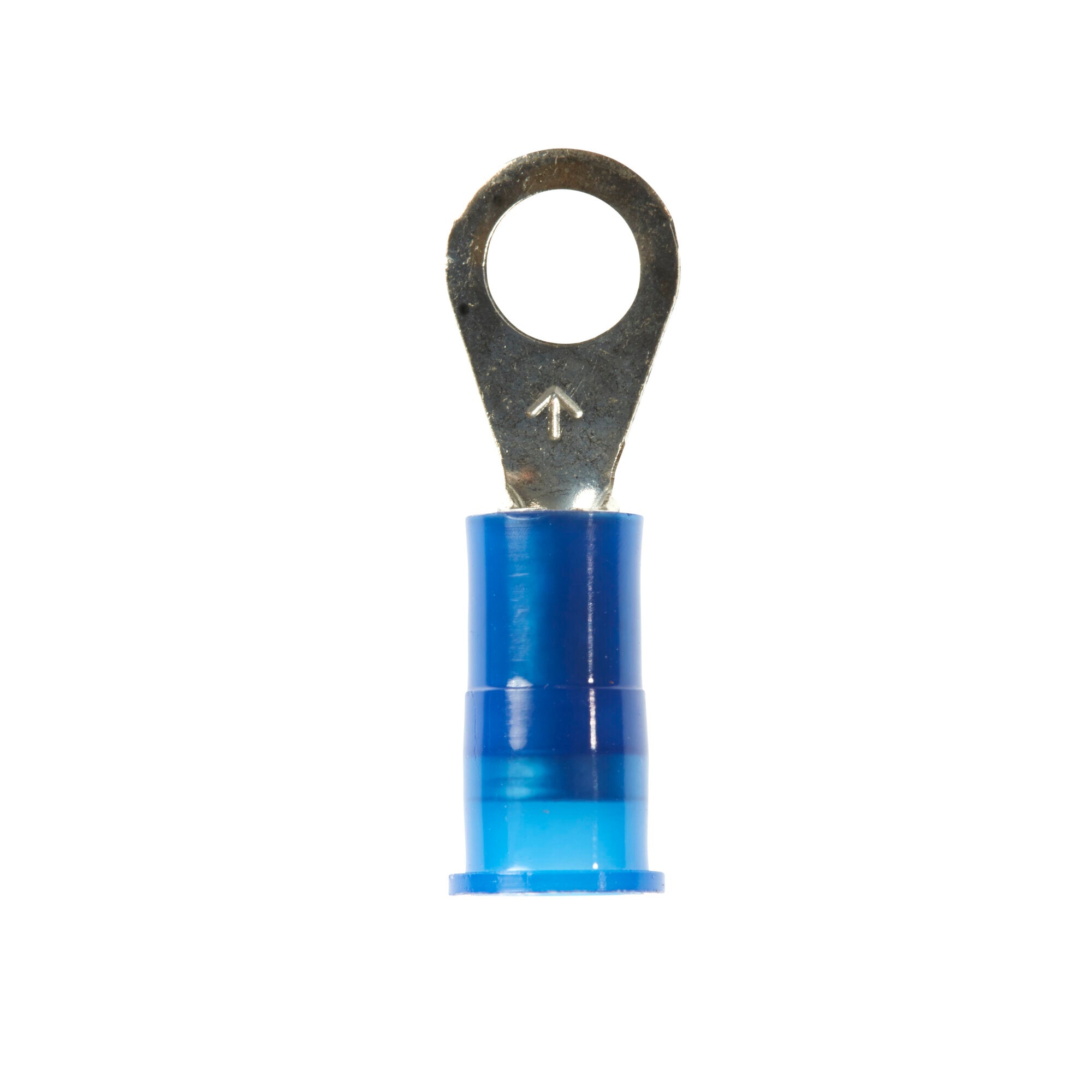

3M Scotchlok Ring Nylon Insulated, MNG14-10R/LX

Features

Safe and reliable, 3M Scotchlok Color-Coded Large Ring Tongue Terminals are made of electrolytic copper for great conductivity and coated in tin to resist corrosion. The butted-seam barrels are insulated with nylon and covered with seamless brass sleeves for accurate wire positioning. These terminals work in temperatures ranging from -40 to 221 degrees F (-40 to 105 degrees C).3M™ Ring Tongue Terminal is color-coded for quick and easy identification of the wire size required. The butted-seam barrel is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

• Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
• Funnel-designed, seamless brass sleeve offers easy insertion of wires
• Standard-style ring tongue fits around the stud
• Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
• Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
• 600V-rated for building wire and 1000V for signs, fixtures or luminaires
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
