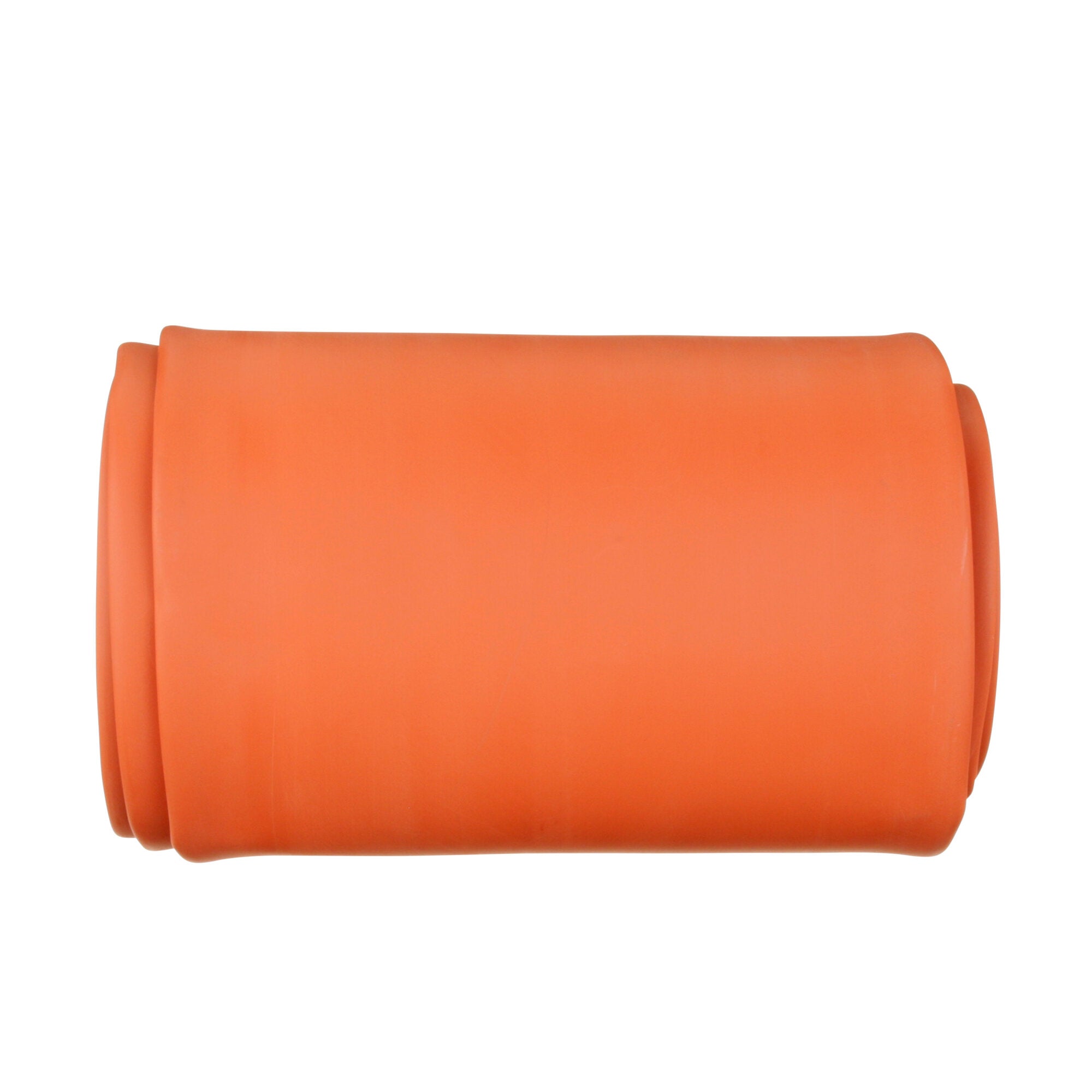

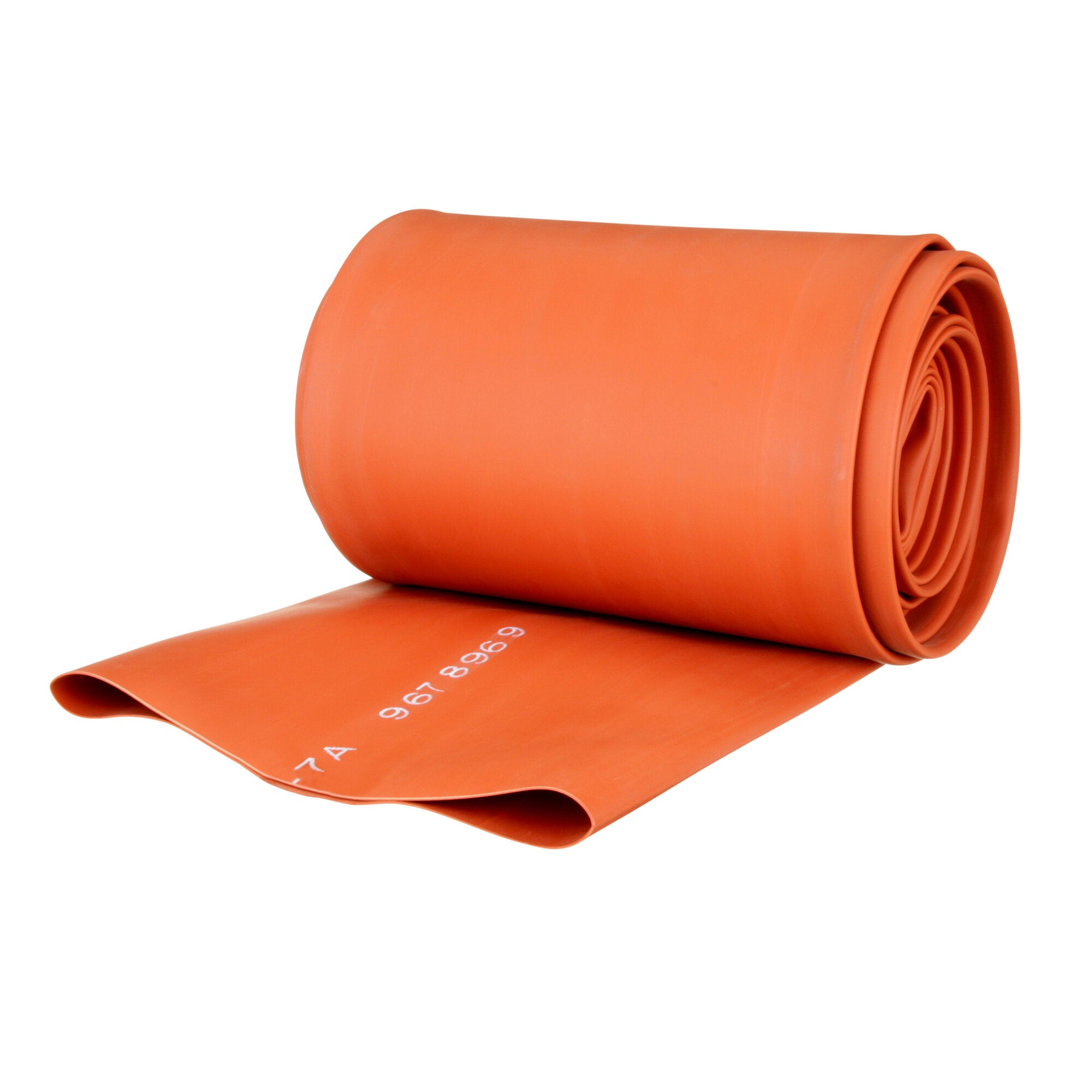

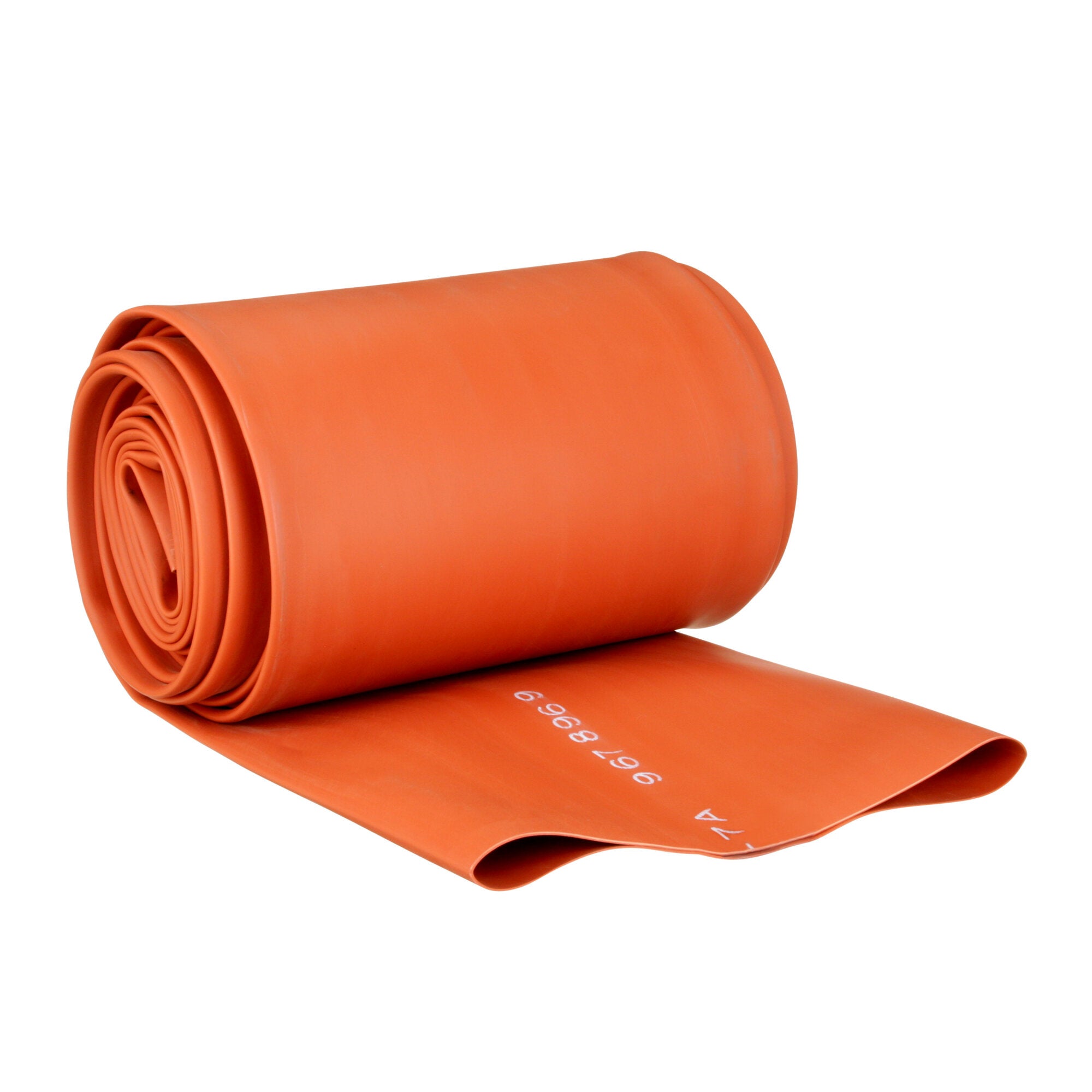

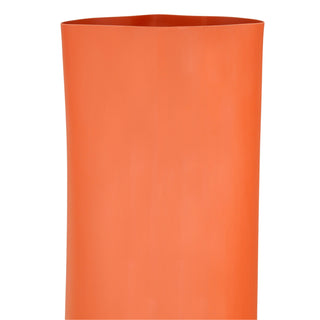

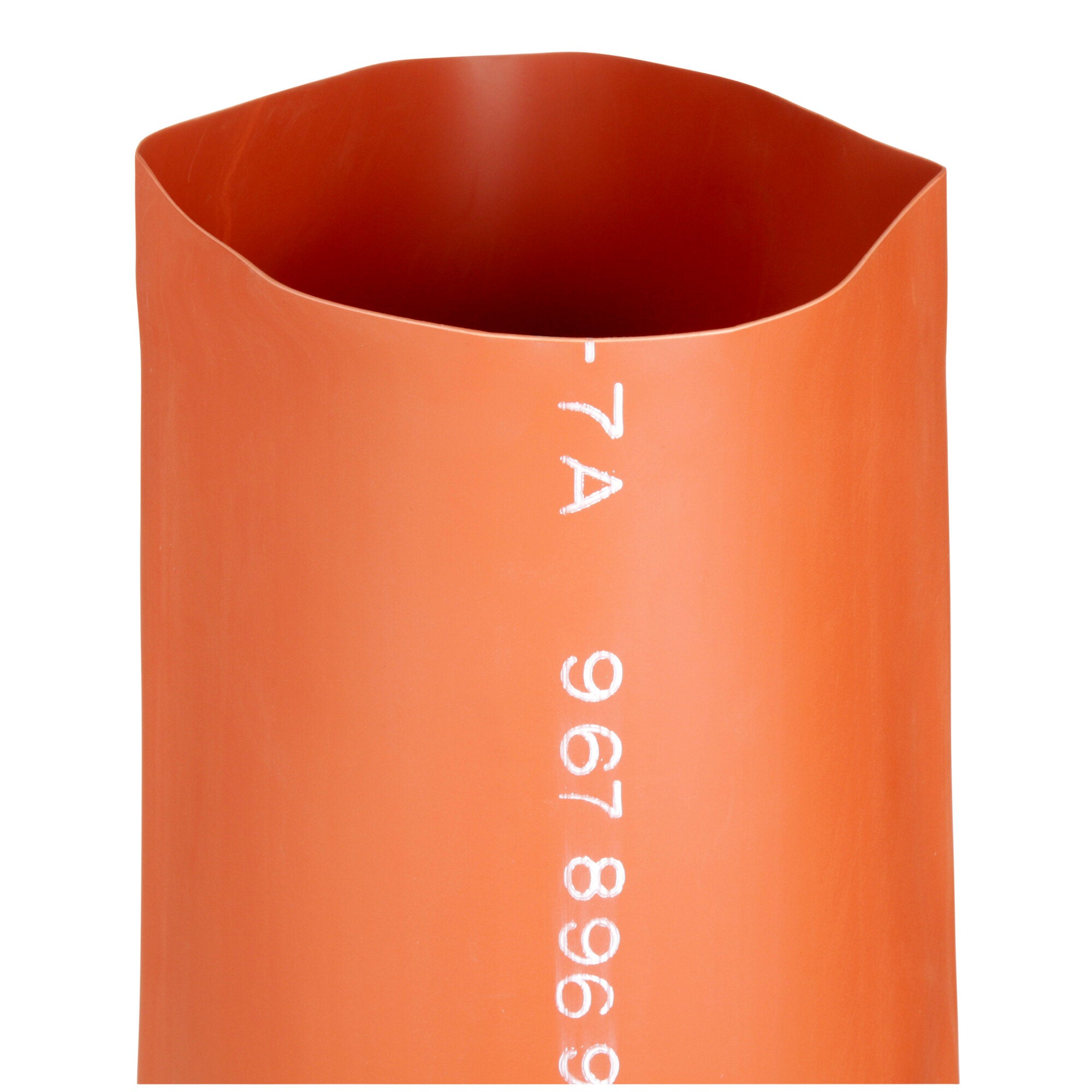

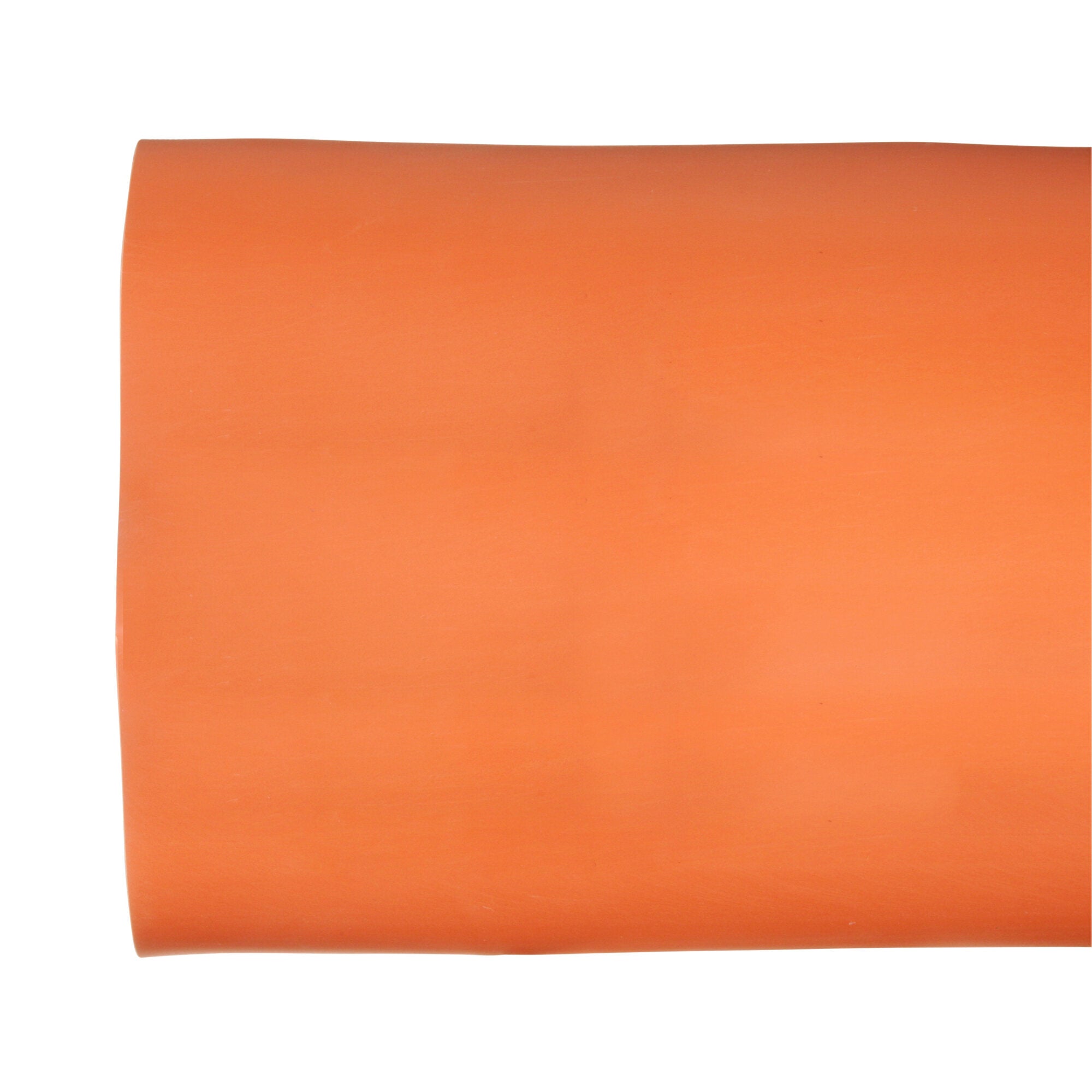

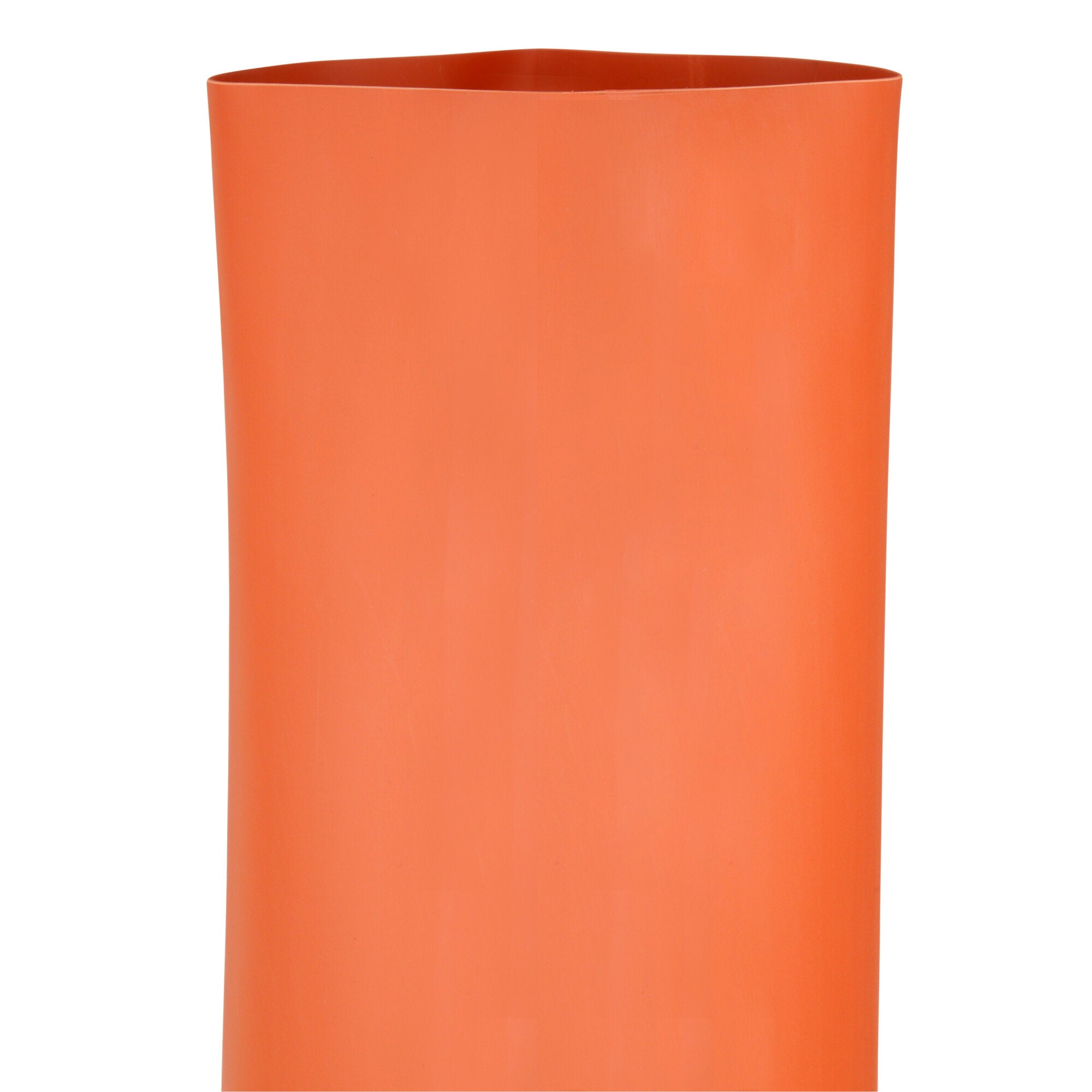

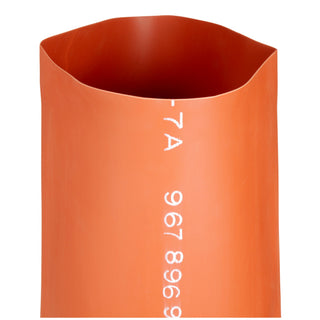

3M Bus Bar Tubing BBI-7A-50', O.D. 8.28 - 13.00 in

3M Bus Bar Tubing BBI-7A-50', O.D. 8.28 - 13.00 in

by 3M
No reviews
$2,450.99 - $2,450.99
$2,450.99
$2,450.99 - $2,450.99
$2,450.99
Free shipping
Extended Handling May Be Required
Boost tracking resistance on square, rectangular and round bus bars with our 3M Bus Bar Heat Shrink Tubing BBI-7A. Offering additional resistance to splits, flames and solvents, this tubing creates a tight-fitting seal on applications... Read more
Please allow 2 days for production.

Overview

3M

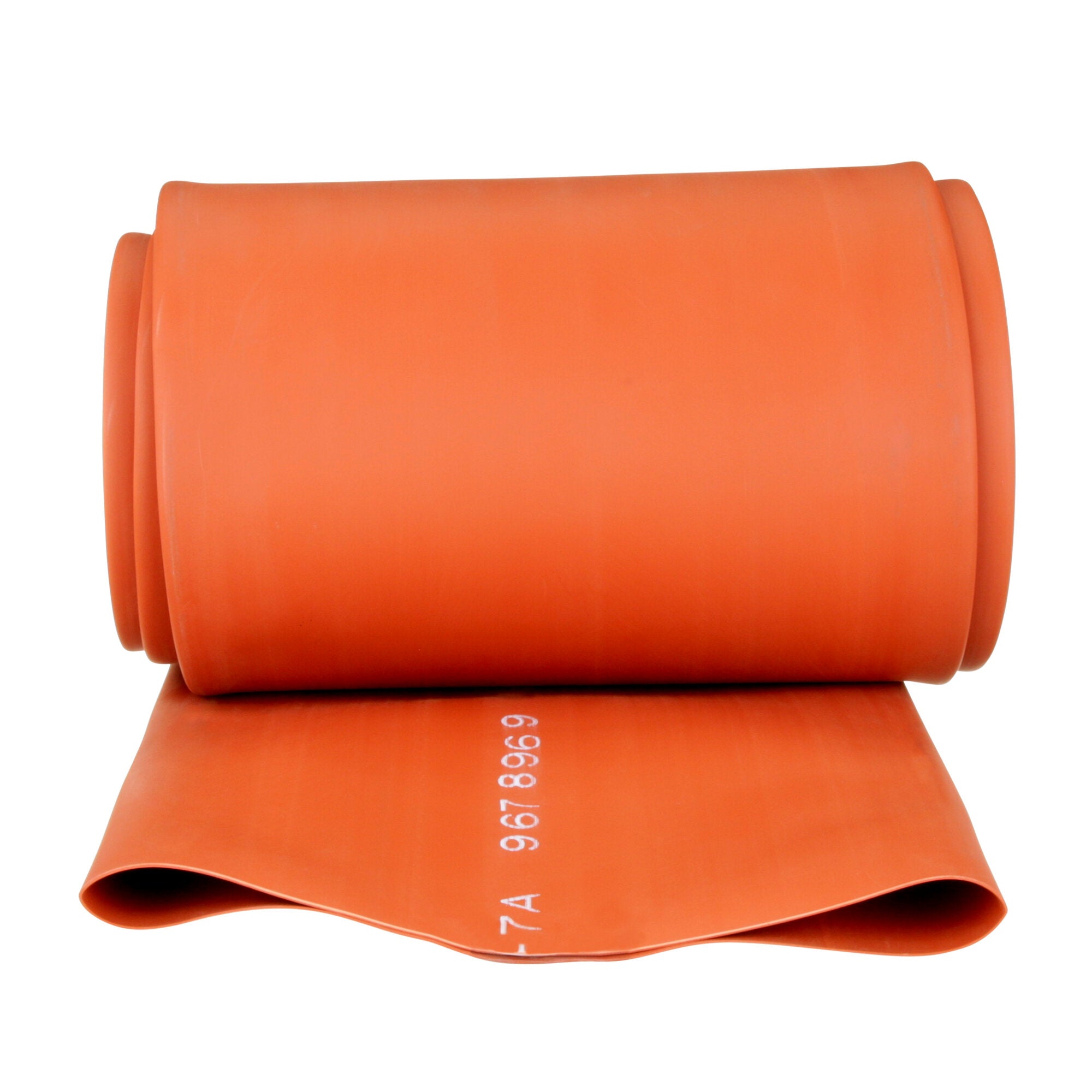

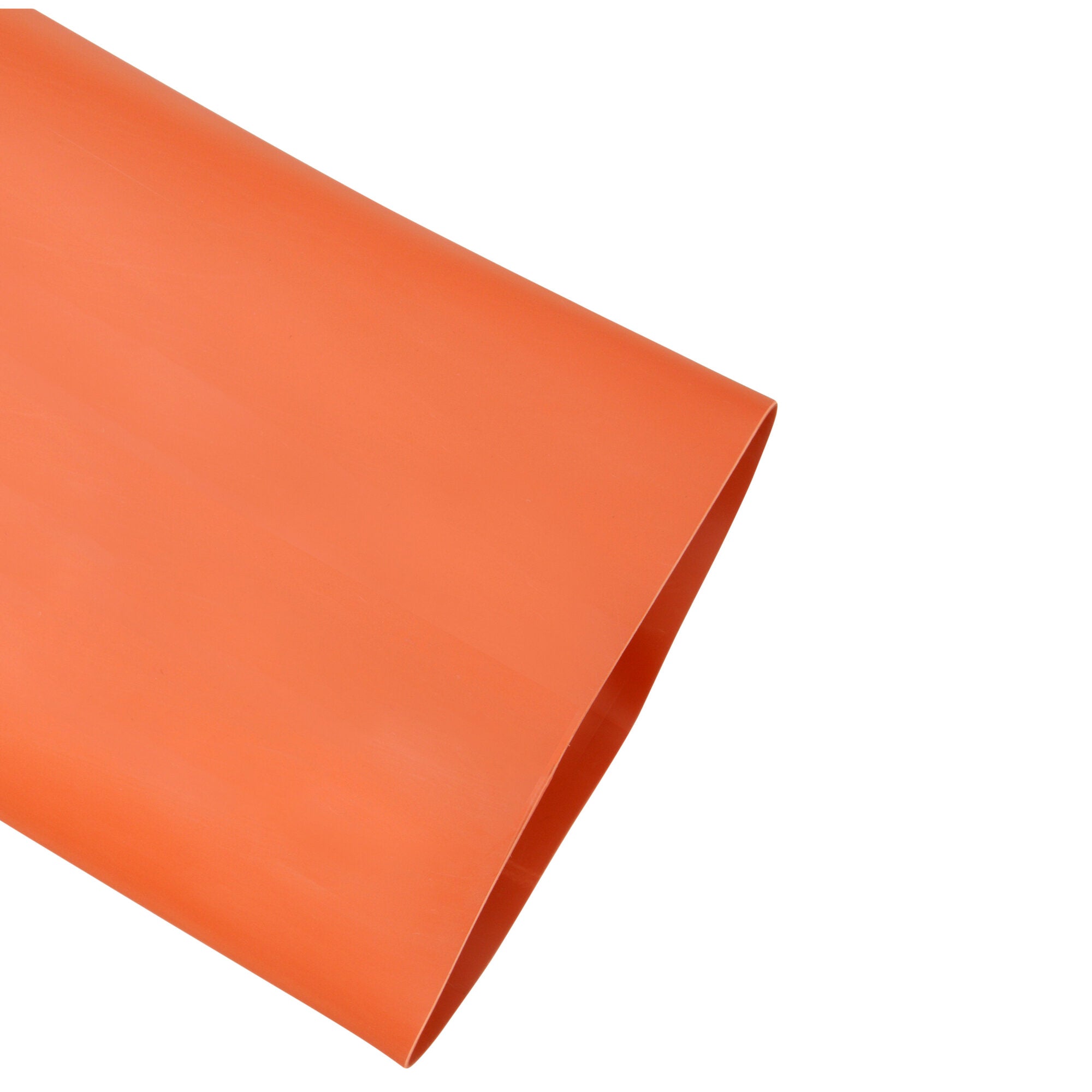

3M Bus Bar Tubing BBI-7A-50', O.D. 8.28 - 13.00 in

Boost tracking resistance on square, rectangular and round bus bars with our 3M Bus Bar Heat Shrink Tubing BBI-7A. Offering additional resistance to splits, flames and solvents, this tubing creates a tight-fitting seal on applications with a 5 to 35 kV rating. You'll get stable insulation and protection around your bus bars thanks to the cross-linked polyolefin composition of this tubing.
  • Suitable for copper or aluminum bus bars, metal-enclosed bus bars, metal-clad switchgear and substation switchgear
  • Made of red cross-linked polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant
  • ASTM, IEC, ANSI, IEEE Approved and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
3M™
Heat Shrink Type
Heavy-Duty Heat Shrink Tubing
Product Type
Bus Bar Tubing
Country Of Origin
United States
Lead Time
2 days
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Dimensions and Specifications
Expanded Wall Thickness
0.048 in
Inner Diameter After Shrink (Imperial)
8.28 in
Inner Diameter After Shrink (Metric)
210 mm
Inner Diameter Before Shrink (Imperial)
13 in
Inner Diameter Before Shrink (Metric)
330 mm
Maximum Operating Temperature (Celsius)
110 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
230 Degree Fahrenheit
Operating Temperature (Celsius)
-55 °C to 110 °C
Operating Temperature Range (Celsius)
-55 °C to 110 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 230 °F
Outside Diameter (Bar Circumference)
8.28 - 13.00 inch
Overall Length (Imperial)
50 ft
Overall Length (Metric)
15.24 m
Recovered Wall Thickness
0.13 in
Rectangular Size
(4 x 1/4) to (6 x 3/4) Inch (for 5 kV, 8 kV, 15 kV, 25 kV)
Round Size (Diameter)
See Sizing Chart on Data Sheet
Square Size
8.28 - 13.00 inch OD (for 35 kV)
Voltage
25 kV
Operating Temperature Celsius
-55 °C to 110 °C
Overall Length Imperial
50.0
Other Details
Halogen Free
No
Maximum Recovered Tubing I. D.
2.55 in
Minimum Expanded Tubing I. D.
6.78 in
Shrink Ratio
1.5 : 1
Units Per Case
1.0
With Inner Glue
No
Material and Composition
Material
Polyolefin
Shelf Life
3600
Color and Appearance
Product Color
Orange
Shape
Round
Certifications and Standards
UL Approval
No
