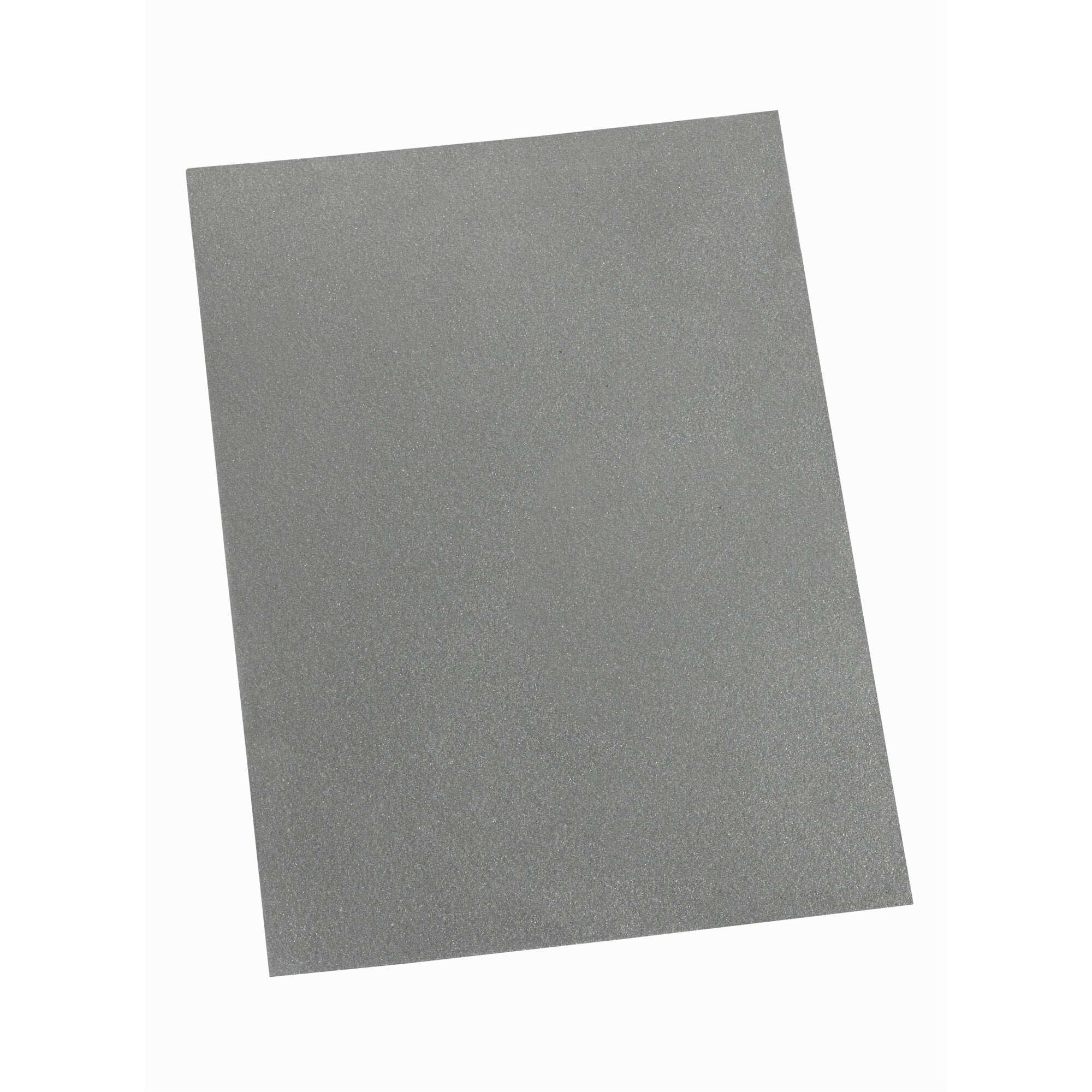

3M EMI Absorber AB7020HF, 210 mm x 297 mmx 0.25 mm

Features

3M EMI Absorber AB7000HF Series is an innovative EMI absorber material. This low-halogen, flexible, high-permeability magnetic EMI absorber sheet is a broadband absorber for near-field applications in the 50 MHz-10 GHz range.Intended to reduce EMI and RF noise in electronic systems, 3M™ EMI Absorber AB7000HF Series consists of a flexible polymer resin loaded with soft metal flakes. It can be easily die-cut into complex shapes and has a backing thickness of 0.XX mm. It features a one-sided acrylic pressure-sensitive adhesive and can be applied to noisy traces, IC's and reflective surfaces in an enclosure.

• High-permeability magnetic film
• Low-halogen version of 3M™ EMI Absorber AB7000 Series absorbers
• Less than 900 ppm bromine and chlorine
• Less than 1500 ppm total bromine and chlorine
• Meets guidelines set forth in IEC 61249-2-21
• Easily die-cut into complex shapes
• Acrylic   pressure-sensitive adhesive (PSA) allows for easy application
• Improved lower frequency absorber vs. the 3M™ EMI Absorber AB5000 Series or 3M™ EMI Absorber AB5000S Series (at < 1 GHz)
