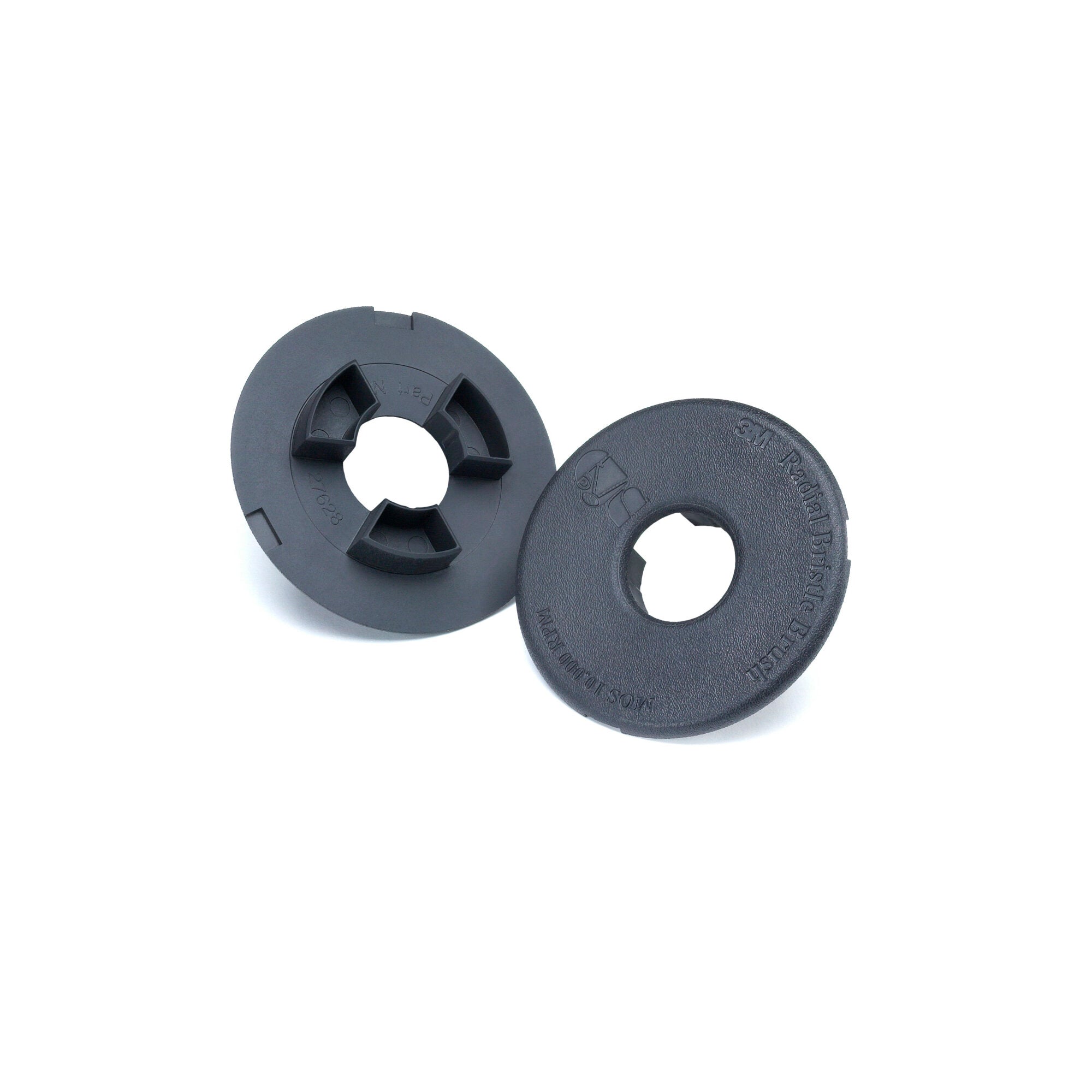

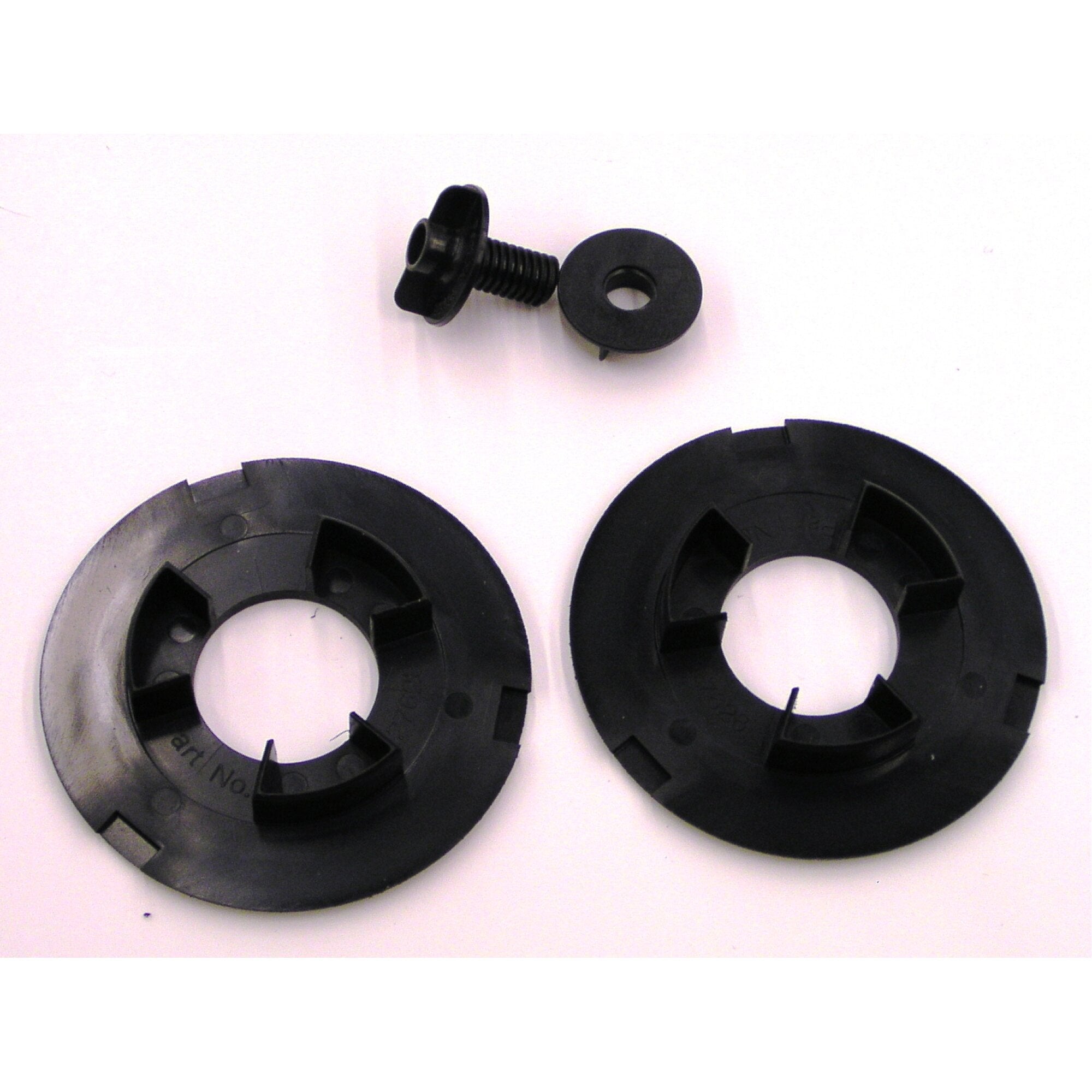

3M Flange Adapter- 6 in Radial Bristle Brush Set, 2 in x 1 in
- 7000028515
- 3M
- Mandrels & Adapters
Features
Downloads
No files available.
Key points
- Two-piece flange adapter holds a minimum of 7 bristle discs
- 1 inch hole optimizes mounting of 6 inch bristle discs on bench motors with a 1 inch diameter shaft
- 3M™ Telescoping Wheel Flange Adapter (Part No. 5, sold separately) can be inserted in the center hole to adapt to shaft sizes as small as 1/2 inch diameter
- Can be used with one or more 3M™ Spindle Extender Adapters (Part No. 30134, sold separately) when additional layers of bristle discs are required
Description
3M Flange Adapter holds together a minimum of seven 6 inch radial bristle discs for use on bench motors with a shaft size of 1 inch diameter.For bench motors with shafts smaller than 1 inch, a 3M™ Telescoping Wheel Flange Adapter (Part No. 5) can be inserted into the center hole to fit 1/2 inch, 5/8 inch, 3/4 inch or 7/8 inch shafts. When a greater thickness of bristle discs is needed, 3M™ Spindle Extender Adapters (Part No. 30134) can be added to increase the disc capacity of the flange adapter. These additional adapters are sold separately.
