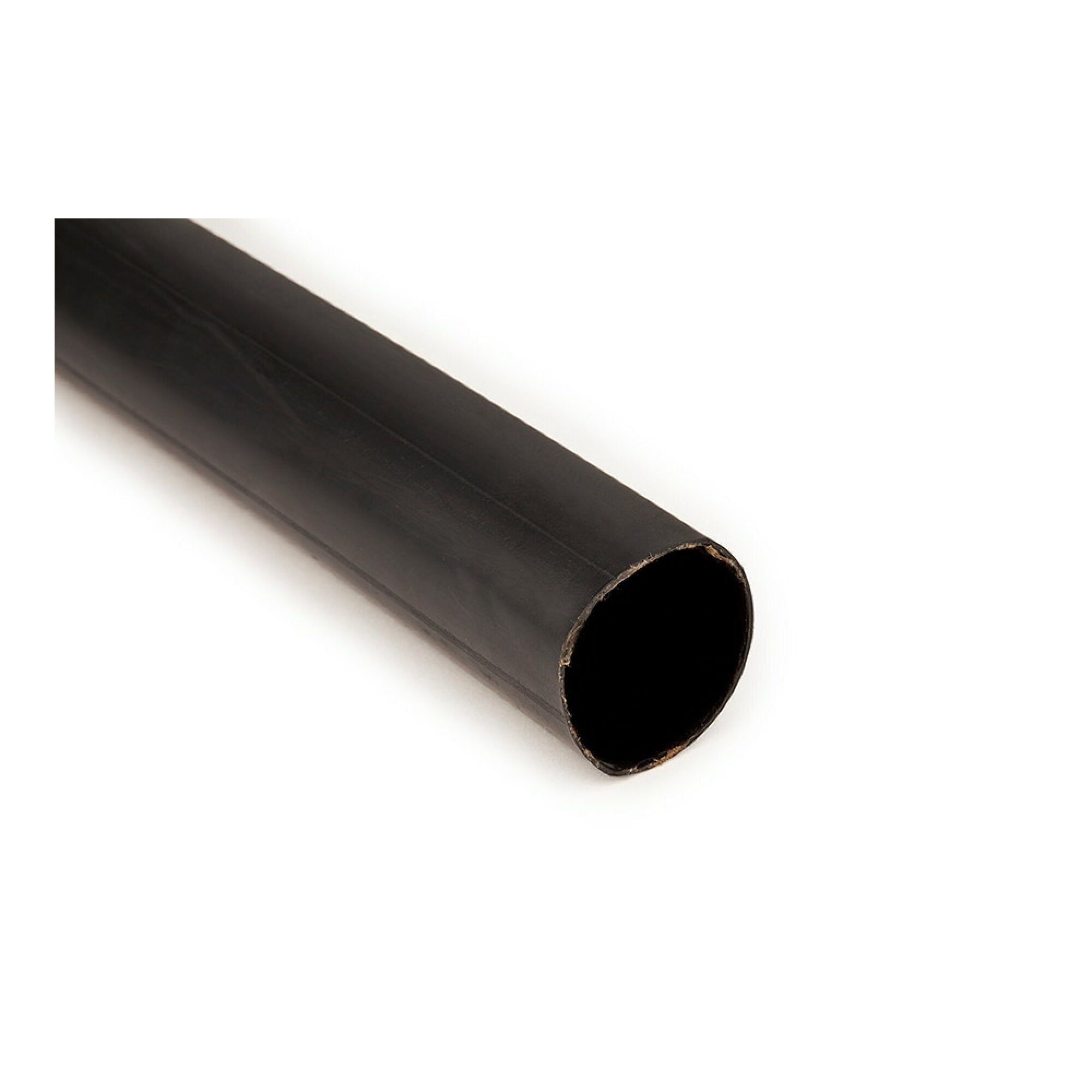

3M Heat Shrink Medium-Wall Cable Sleeve IMCSN-4300-48A, 1000-2500kcmil

by 3M
No reviews
Original price $685.99 - Original price $685.99
Original price
$685.99
$685.99 - $685.99
Current price $685.99
Free shipping
When you need tubing that helps resist chemicals, corrosion and abrasion, this 3M IMCSN Heat Shrink Cable Sleeve is a good choice. It provides great electrical insulation for 1 kV-rated applications and helps protect wires... Read more
This product is made to order. Please allow 38 days for production.

Overview

3M

3M Heat Shrink Medium-Wall Cable Sleeve IMCSN-4300-48A, 1000-2500kcmil

When you need tubing that helps resist chemicals, corrosion and abrasion, this 3M IMCSN Heat Shrink Cable Sleeve is a good choice. It provides great electrical insulation for 1 kV-rated applications and helps protect wires long-term. The polyolefin material that this sleeve is made of has an excellent moisture seal, and the heat shrink has a 3:1 shrink ratio.3M™ Heat Shrink Cable Sleeve IMCSN is a resistant sleeve has a factory applied adhesive/sealant that offers reliable performance for electrical splices, connections and terminations. It is perfect for insulating secondary splices, direct buried, submersible or dig in repairs, as well as physical protection of high voltage, air insulated connectors or lugs. It withstands temperatures of 67 to 230 degrees F ( 55 to 110 degrees C). RoHS 2011/65/EU Compliant.
  • Superior resistance to abrasion, corrosion and chemicals
  • Offers reliable performance for electrical splices, connections and terminations
  • Suitable for insulating secondary splices, as well as direct buried, submersible and dig-in repairs
  • Made of black cross-linked polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
3M™
Heat Shrink Type
Adhesive-Lined Polyolefin Heat Shrink Tubing
Tubing Type
Medium Wall
Country Of Origin
United States
Lead Time
38 days
California Residents
Dimensions and Specifications
Cable Size Range
1000-2500 kcmil
Expanded Inner Diameter (Metric)
109.2 mm
Inner Diameter After Shrink (Imperial)
1.5 in
Inner Diameter After Shrink (Metric)
38.1 mm
Inner Diameter Before Shrink (Imperial)
4.3 in
Inner Diameter Before Shrink (Metric)
109.2 mm
Maximum Operating Temperature (Celsius)
110 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
230 Degree Fahrenheit
Operating Temperature (Celsius)
-55 to 100 Degrees Celsius
Operating Temperature (Fahrenheit)
-67 °F to 230 °F
Operating Temperature Range (Celsius)
-55 °C to +105 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 230 °F
Overall Length (Imperial)
48 in
Overall Length (Metric)
1.22 m
Recovered Inner Diameter
1.5 in
Recovered Inner Diameter (Metric)
38.1 mm
Voltage Rating
1 kV
Operating Temperature Celsius
-55 to 100 Degrees Celsius
Overall Length Imperial
48.0
Other Details
Adhesive Lined
Yes
Flame Retardant
No
Minimum Expanded Tubing I. D.
4.3 in
Shrink Ratio
3:1
Solution For
Access Network: xDSL
Units Per Case
10.0
Usage Information
Application Specifications
ABS
Material and Composition
Material
Cross-linked Polyolefin
Shelf Life
3600
Color and Appearance
Product Color
Black
