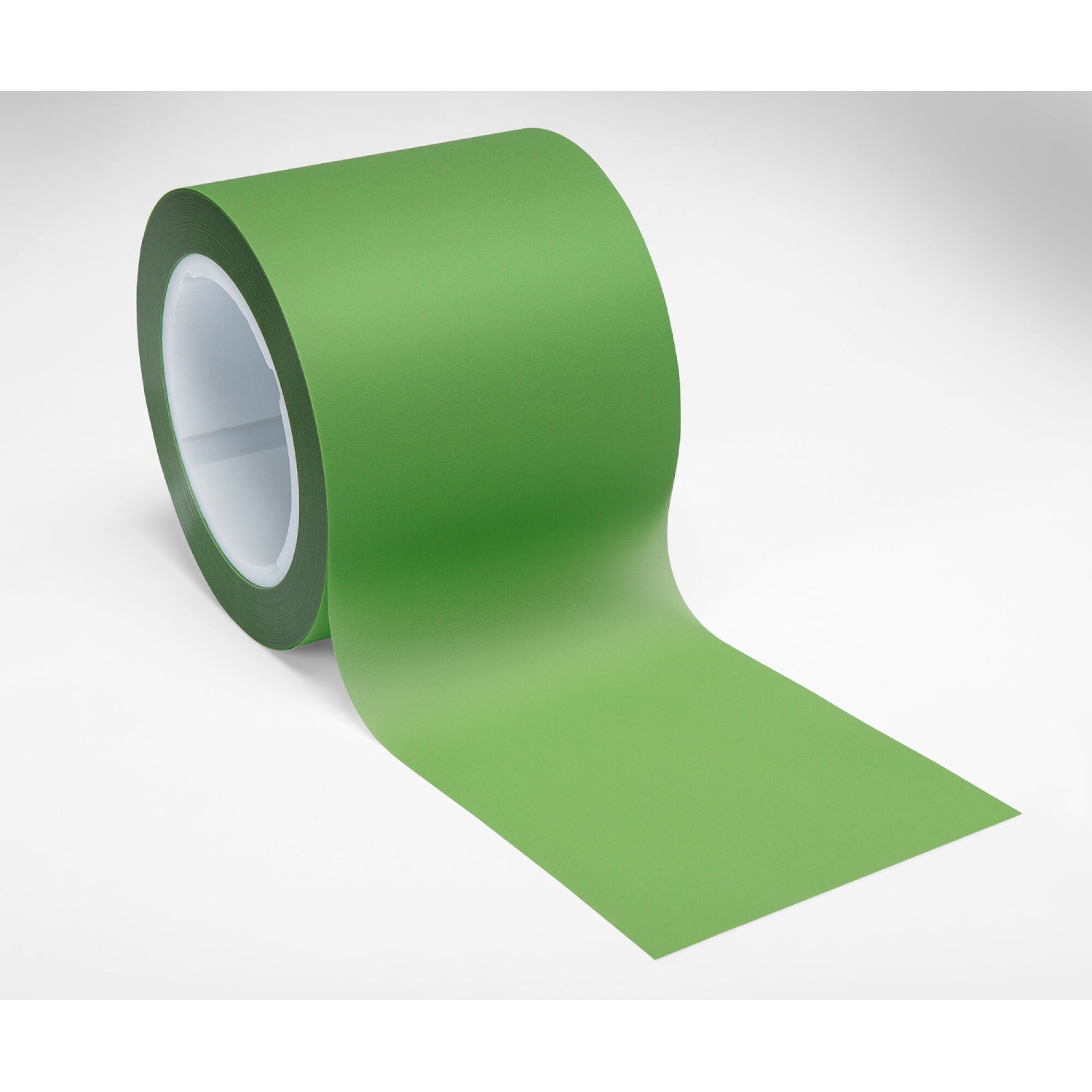

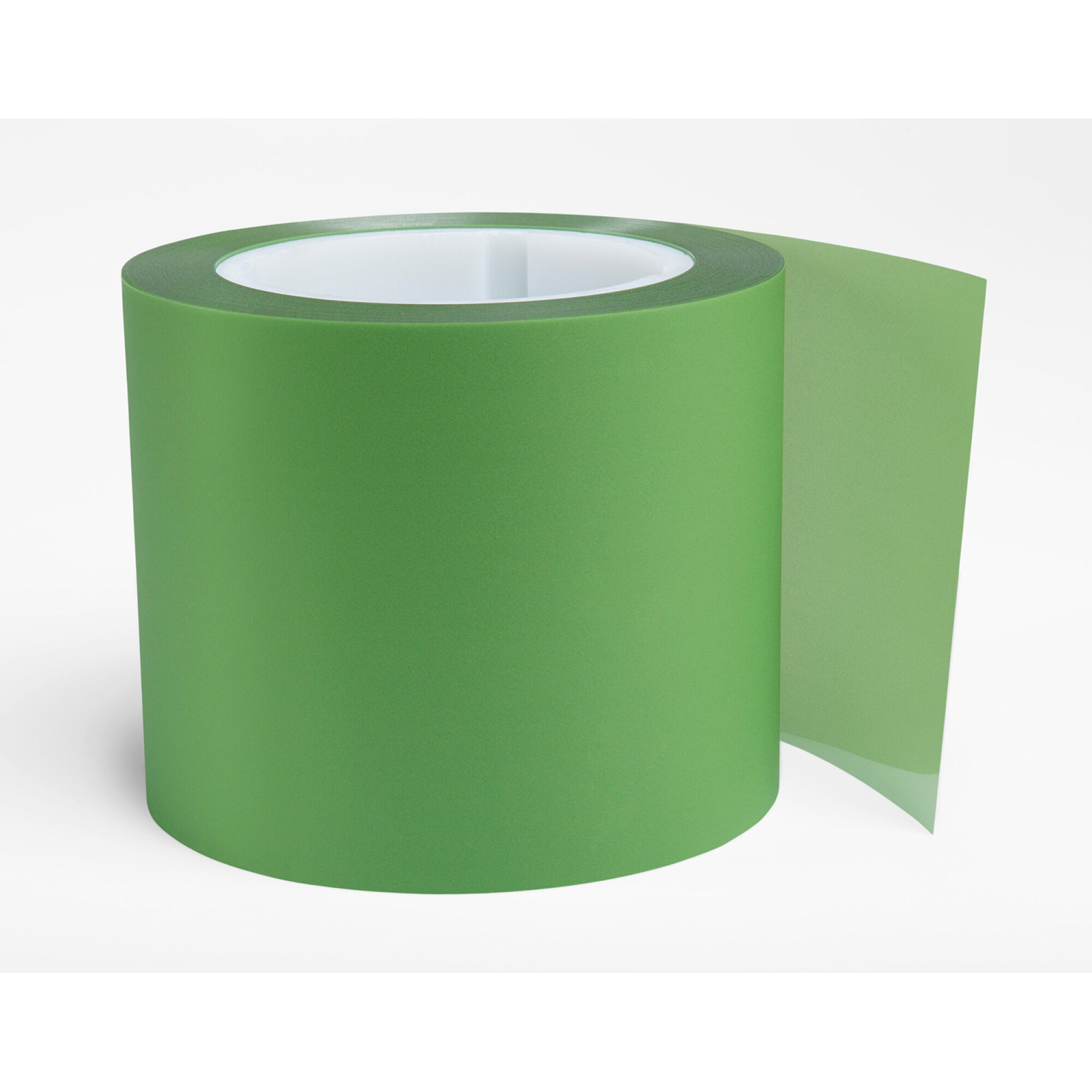

3M Lapping Film 261X, 30.0 Micron Roll, 4 in x 150 ft x 3 in ASO KeyedCore

3M Lapping Film 261X, 30.0 Micron Roll, 4 in x 150 ft x 3 in ASO KeyedCore

by 3M
$575.99 - $575.99
$575.99
$575.99 - $575.99
$575.99
Free shipping
Extended Handling May Be Required
3M Lapping Film Roll 261X is the standard of 3Ms lapping films. The product is made from precisely graded aluminum oxide particles coated on a 3 mil polyester film. The product provides uniform finishes on... Read more
This product is made to order.

Overview

3M

3M Lapping Film 261X, 30.0 Micron Roll, 4 in x 150 ft x 3 in ASO KeyedCore

3M Lapping Film Roll 261X is the standard of 3Ms lapping films. The product is made from precisely graded aluminum oxide particles coated on a 3 mil polyester film. The product provides uniform finishes on various substrates and delivers consistent cut rate, finish and life.
  • Tight particle distribution
  • Consistent cut rate, finish and life

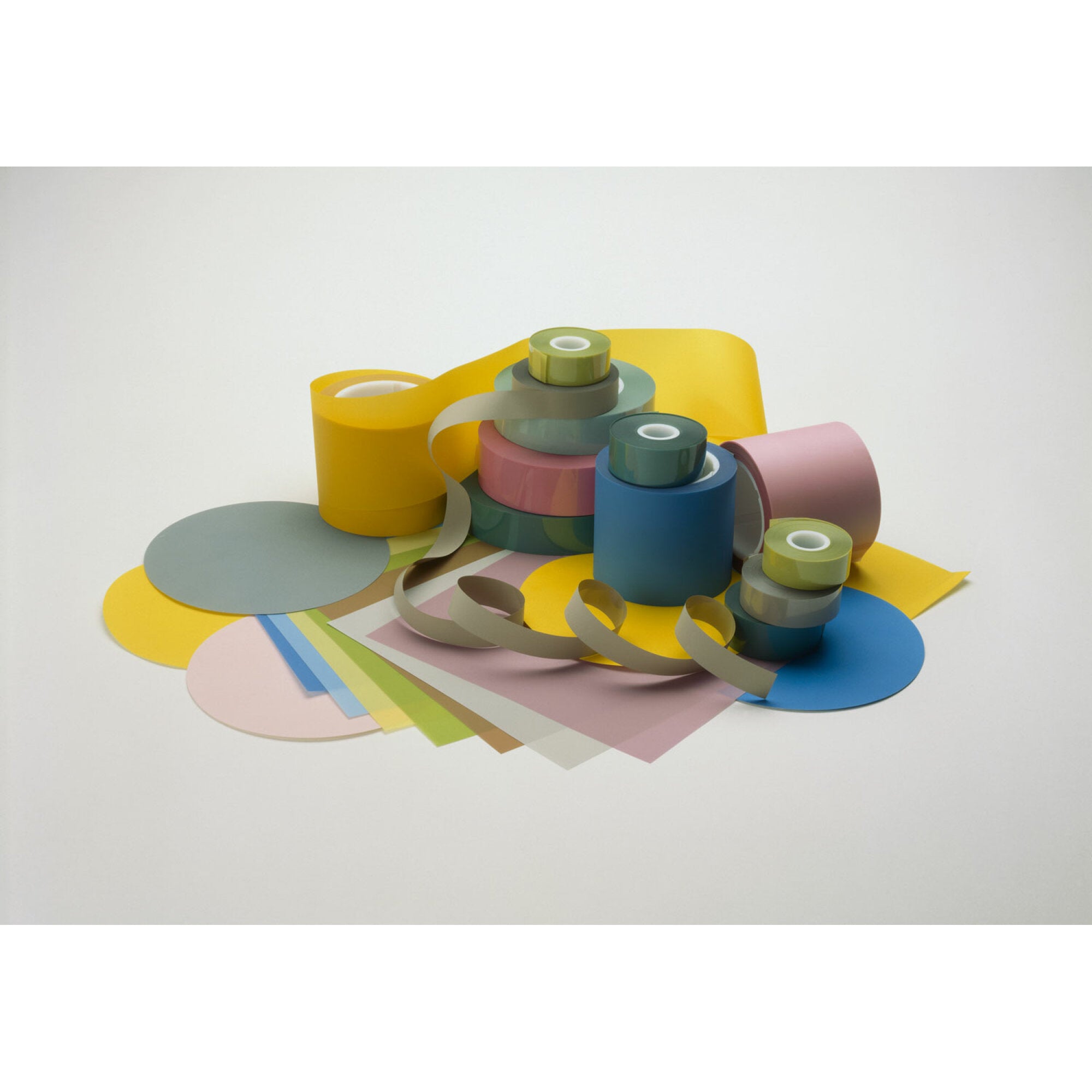

  • Available in discs, sheets and rolls
  • Get a uniform finish on a number of substrates

Product Details

General Information
Brand
3M™
Attachment Type
Plain Back
Product Series
261X
Country Of Origin
United States
Sold As
Case
California Residents
Proposition 65 Warning
Dimensions and Specifications
Backing Thickness (Imperial)
3 mil
Backing Thickness (Metric)
0.076 mm
Micron Grade
30 μm
Overall Length (Imperial)
150 ft
Overall Length (Metric)
45.72 m
Overall Width (Imperial)
4 in
Overall Width (Metric)
101.6 mm
Width
14.76 in
37.5 cm
Height
5.39 in
13.7 cm
Length
14.76 in
37.5 cm
Volume
1175.66 cubic inch
19265.63 cm3
Weight
11 lb
4.99 kg
Other Details
Polishing Process
Step 1: De-Nub/Epoxy Removal
Usage Information
Application
Flat Lapping
Product Usage
Ceramic Fiber Optic Connectors
Material and Composition
Abrasive Material
Aluminum Oxide
Product Form
Roll
Substrate
Ceramic
Certifications and Standards
Factory ISO Certification
No ISO Certification information available
