Dimensions and Specifications
Insulation Outside Diameter Range
4/0 AWG-350 kcmil: 0.67-0.91 in / 350-500 kcmil: 0.90-1.05 in
Insulation Outside Diameter Range (Metric)
4/0 AWG-350 kcmil: 17.0-23.1 mm / 350-500 kcmil: 22.9-26.7 mm
Insulation Outside Diameter By Conductor Size
4/0 AWG-350 kcmil (0.67-0.91 Inch), 350-500 kcmil (0.90-1.05 Inch)
Insulation Outside Diameter By Conductor Size (Metric)
4/0 AWG-350 kcmil (17.0-23.1 mm), 350-500 kcmil (22.9-26.7 mm)
Maximum Bolt Length
1-1/4 in
Maximum Bolt Length (Metric)
31.8 mm
Maximum Feeder Lead Size
500 kcmil
Maximum Motor Lead Size
500 kcmil
Maximum Operating Voltage
1 kV

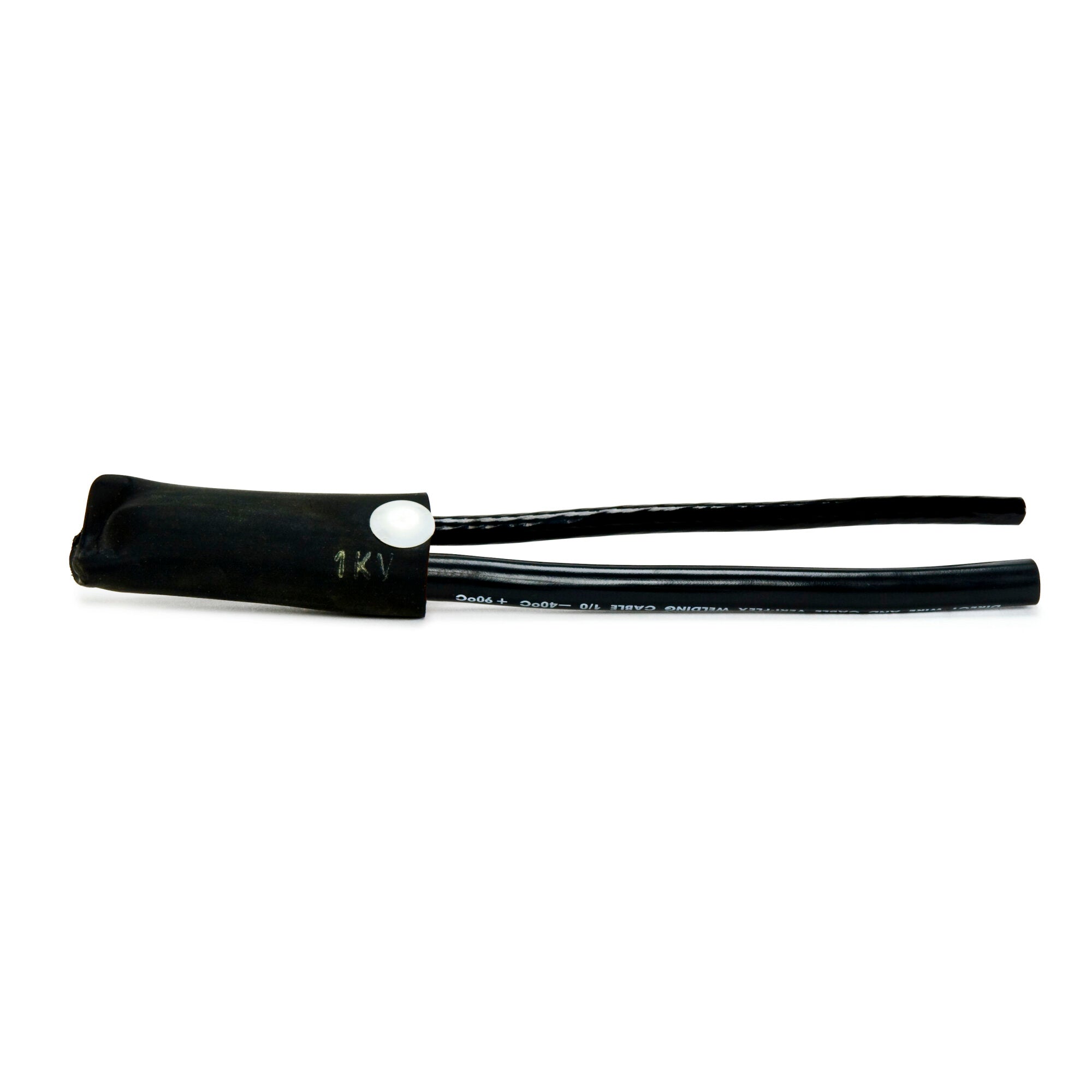

Splice Cover Inner Diameter
4/0 AWG-350 kcmil: 0.60 in / 350-500 kcmil: 0.84 in
Splice Cover Inner Diameter (Metric)
4/0 AWG-350 kcmil: 15.2 mm / 350-500 kcmil: 21.3 mm
Splice Cover Length
12-13 in
Splice Cover Length (Metric)
304.8-330.2 mm
Voltage
1 kV
