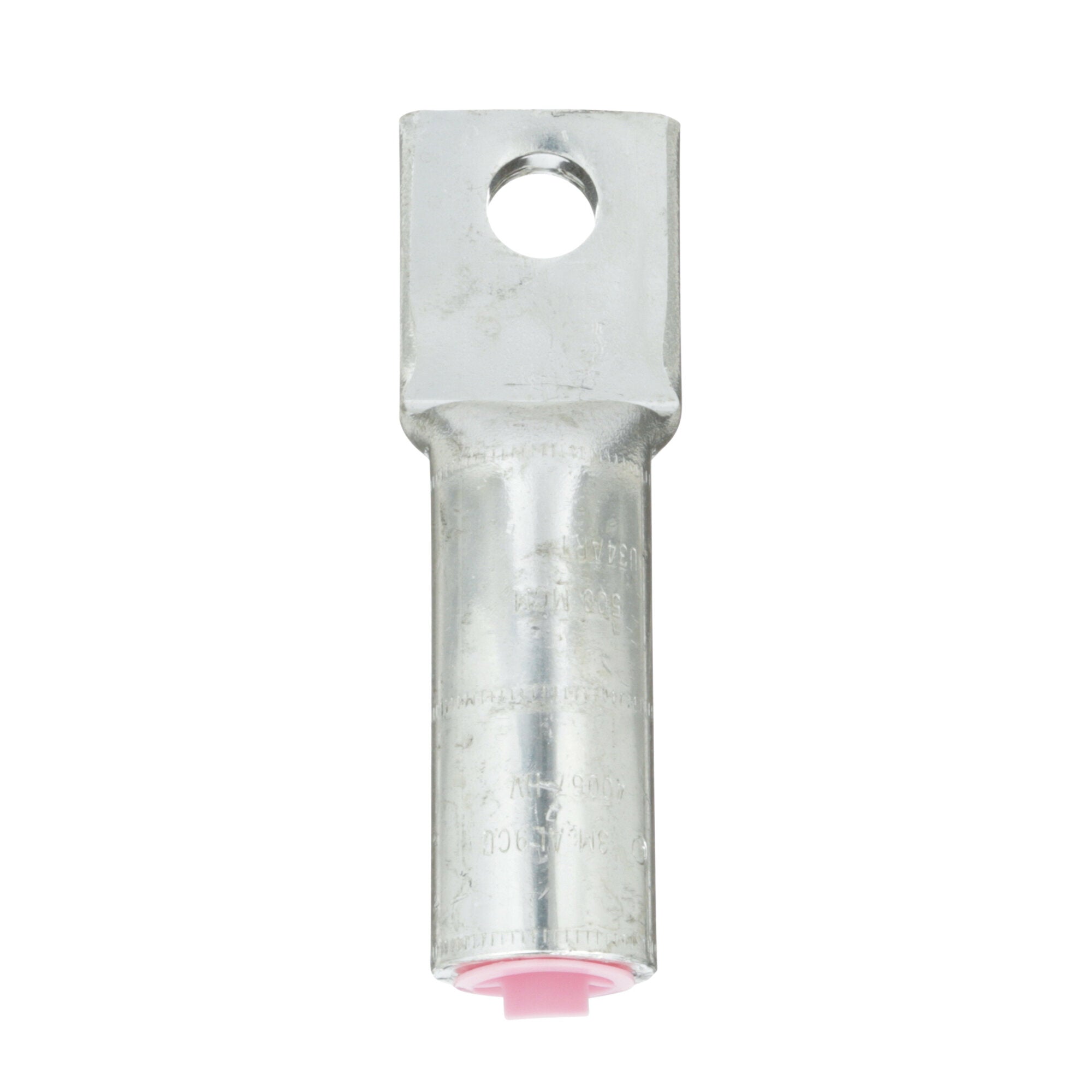

3M Scotchlok Aluminum One Hole Lug 40067, up to 35 kV, 500 kcmil,Pink

by 3M
No reviews
Original price $470.99 - Original price $470.99
Original price
$470.99
$470.99 - $470.99
Current price $470.99
Free shipping
3M Scotchlok 40000 1 Hole Compression Lug is suitable for use on copper or aluminum conductors. The lug has a standard barrel that ensures a secure fit. Aluminum construction offers high conductivity and an electro... Read more
This product is made to order. Please allow 5 days for production.

Overview

3M

3M Scotchlok Aluminum One Hole Lug 40067, up to 35 kV, 500 kcmil,Pink

3M Scotchlok 40000 1 Hole Compression Lug is suitable for use on copper or aluminum conductors. The lug has a standard barrel that ensures a secure fit. Aluminum construction offers high conductivity and an electro tin plated finish resists corrosion. It is rated for 35 kV voltage applications.
  • Standard barrel ensures a secure fit and offers reliable performance
  • Barrel sealing caps are color coded to help to indicate the wire guage
  • Suitable for indoor and outdoor applications
  • Made of aluminum for good conductivity and tin plating for corrosion resistance
  • Rated for 35 kV applications

Product Details

General Information
Brand
Scotchlok™
Barrel Style
Standard Barrel
Lug Type
Compression Lugs
Country Of Origin
United States
Lead Time
5 days
California Residents
Dimensions and Specifications
Barrel Length (Imperial)
2.94 in
Barrel Length (Metric)
74.6 mm
Center Of Hole To End Of Pad (Metric)
15.7 mm
Compatible Conductor Size (Imperial)
500 kcmil
Compatible Conductor Size (Metric)
240 mm²
Inside Diameter (Imperial)
0.843 in
Inside Diameter (Metric)
21.4 mm
Maximum Conductor Size (Imperial)
500 kcmil
Maximum Operating Voltage
35 Kilovolt
Outer Diameter (Imperial)
1.32 in
Overall Length (Imperial)
5.44 in
Overall Length (Metric)
138.2 mm
Pad Length (Imperial)
1.5 in
Pad Length (Metric)
38.1 mm
Pad Width
1.73 in
Pad Width (Metric)
43.9 mm
Stud Sizes
5/8 Inch
Barrel Length Imperial
2.94 in
Barrel Length Metric
74.6 mm
Compatible Conductor Size Imperial
500 kcmil
Compatible Conductor Size Metric
240 mm²
Inside Diameter Metric
21.4 mm
Maximum Conductor Size Imperial
500 kcmil
Overall Length Imperial
5.44
Pad Length Metric
38.1 mm
Other Details
Center Of Hole To End Of Pad
0.62 Inch
Connector Description
One Hole
For Use With
Aluminum or Copper Conductors
Lug Description
One Hole
Number Of Stud Holes
1
Units Per Case
10.0
Material and Composition
Material
Aluminum
Color and Appearance
Product Color
Pink
Packaging and Shipping
Case Quantity
10
