Athena Power AP-MPS3ATX40P8 Hercules Series 20+4Pin Single PS2/PS3 4"(D) EPS-12V 400W PFC 82+ Bronze Certified

No reviews
Original price $100.99 - Original price $100.99
Original price
$100.99
$100.99 - $100.99
Current price $100.99
Free shipping
One per OrderWith 400 watts output and a micro PS3 form factor, the AP-MPS3ATX40P8 power supply works with many Dell, HP, IBM, Compaq, and Gateway PCs for either power supply replacement or new system assembly.... Read more

Overview

Athena Power

Athena Power AP-MPS3ATX40P8 Hercules Series 20+4Pin Single PS2/PS3 4"(D) EPS-12V 400W PFC 82+ Bronze Certified

One per Order

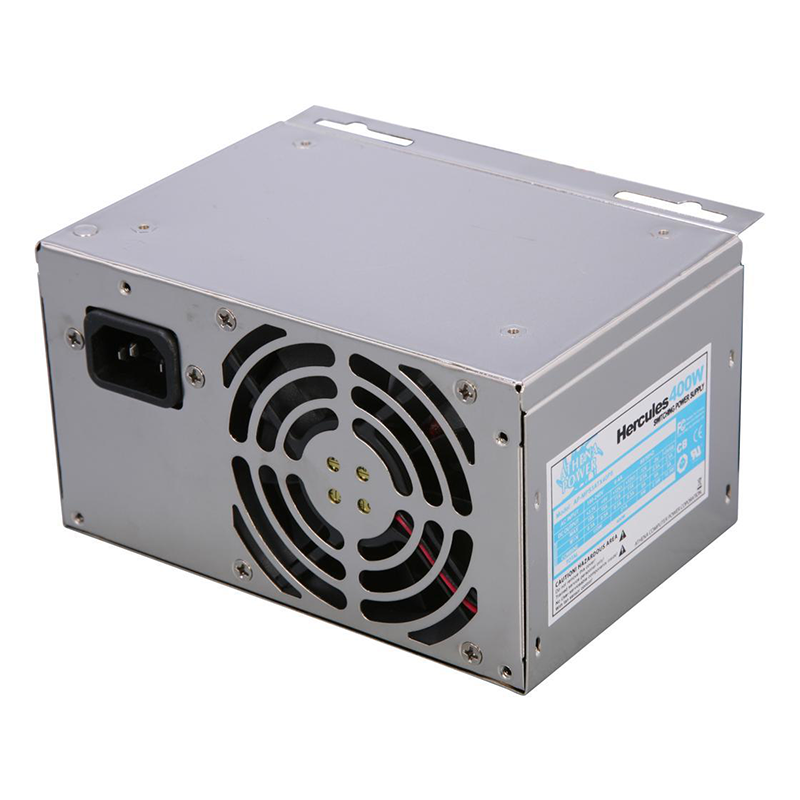

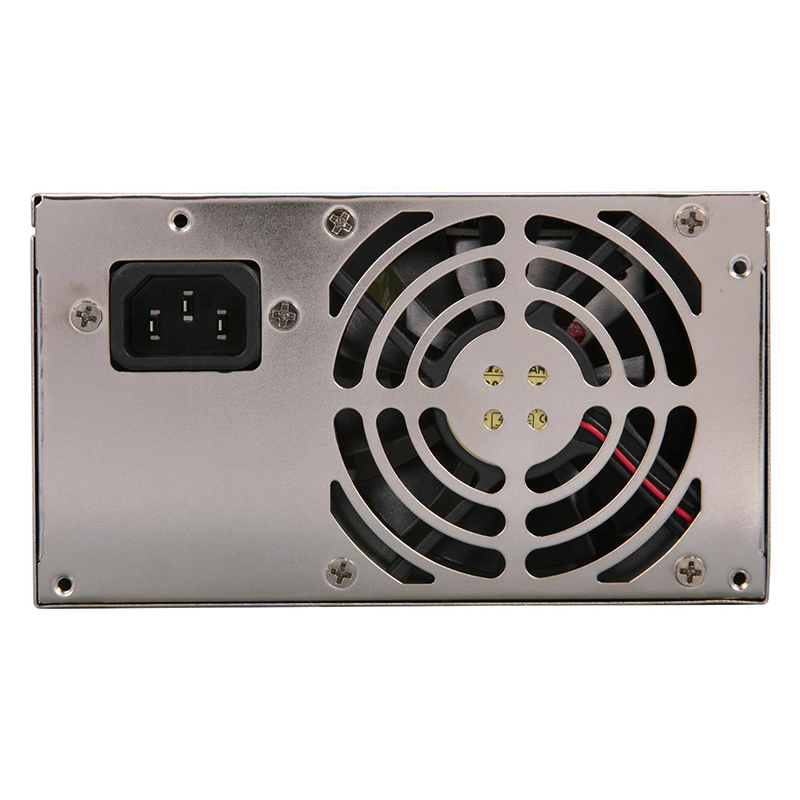

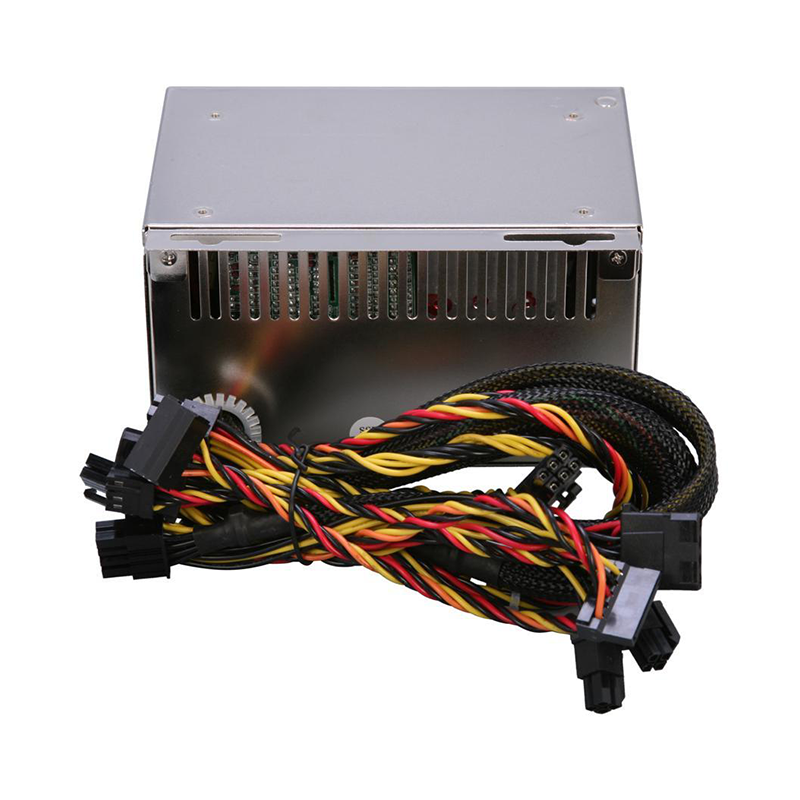

With 400 watts output and a micro PS3 form factor, the AP-MPS3ATX40P8 power supply works with many Dell, HP, IBM, Compaq, and Gateway PCs for either power supply replacement or new system assembly. It comes with Active PFC and 80PLUS bronze certification for high efficiency. In addition, it supports ATX V2.2 motherboards (and below), and features smart silent technology.

  • Temperature Range Operating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C
  • MTBF: 100,000 Hours on Maximum Load at +25°C
  • Rise Time: Less than 20 ms
  • Hold-up Time: 17 ms Minimum at Nominal Input Voltage

Product Details

General Information
Manufacturer
Athena Power
Part Number
AP-MPS3ATX40P8
Product Model
Hercules Series
Product Type
Power Supply
California Residents
Power Description
Input Voltage Type
AC
Input Voltage
88 264 Volts
Output Voltage
+5V@15A, -5V@0.5A, +12V1@11A, +12V2@11A, -12V@0.5A, +3.3V@15A, +5V-SB@2.5A
Output Power
400 Watts
Physical Characteristics
Height
6"
Width
1.7"
Depth
3.2"
Weight (Approximate)
0.91 kg
2.00 lb
Technical Information
Efficiency
47 - 63 Hz
Number of Fans
(1) Smart Auto Fan Speed Controller
Interfaces Ports
Connectors

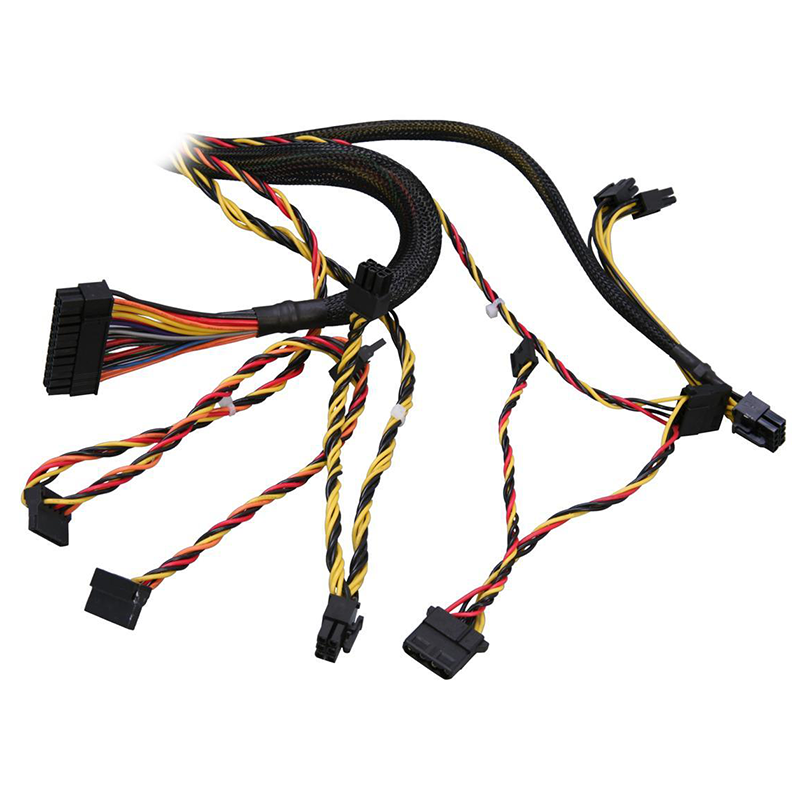

ATX Connector 24(20+4) pin x 1, EPS-12V 8 (P4-12V 4 pin +4) pin x 1, EPS/P4 (P4+4) pin x 1, PCIE 6 pin x 2, SATA 15 pin x 3, Molex 4 pin x 2, Floppy 4 pin x 1
