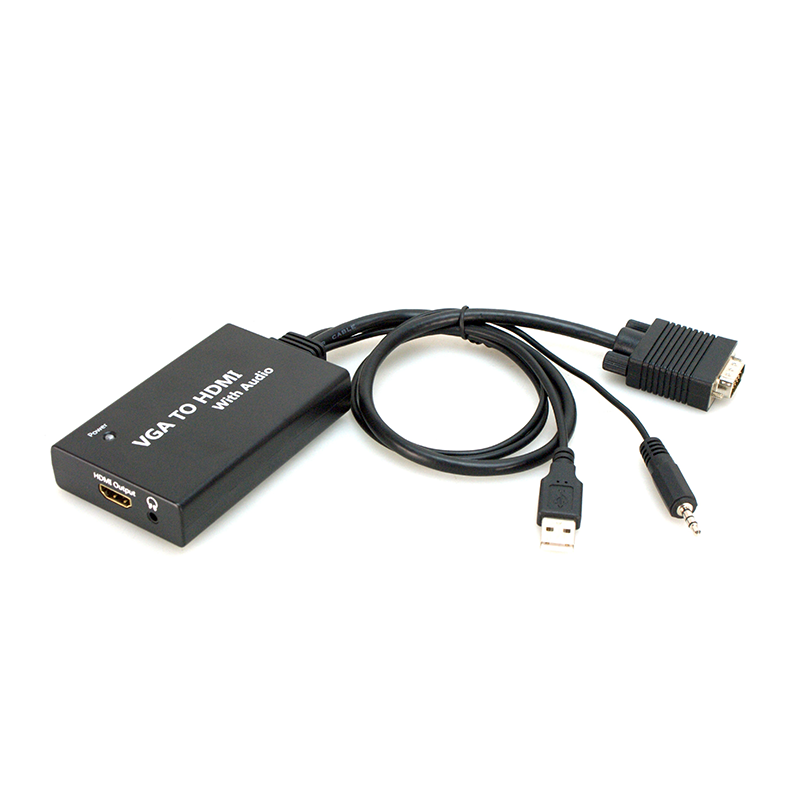

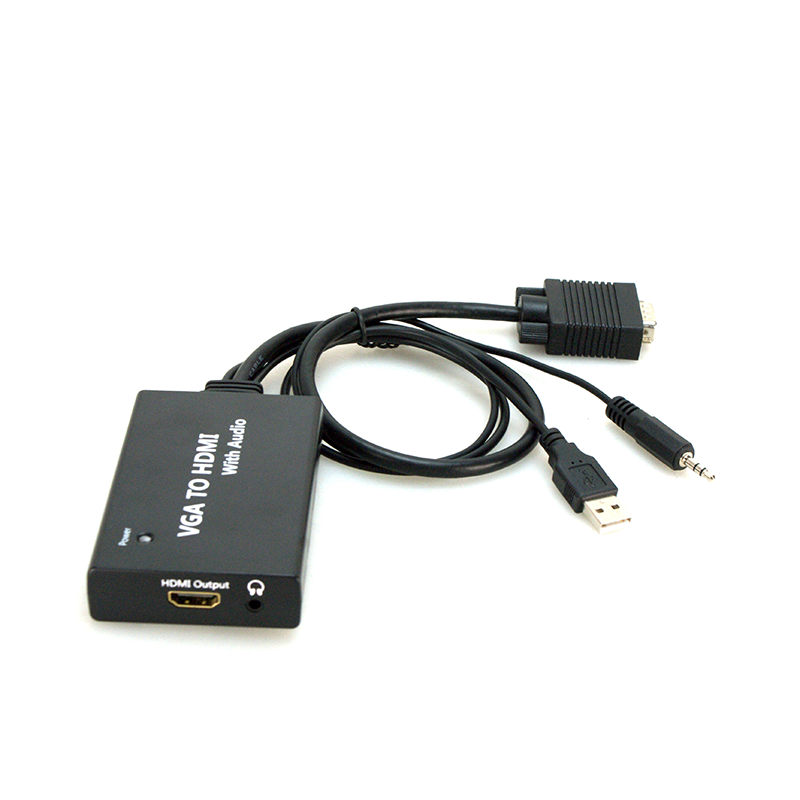

Bytecc HM-CV030 VGA to HDMI® converter with audio and USB for power

by Bytecc
No reviews
Original price $25.00 - Original price $25.00
Original price
$25.00
$25.00 - $25.00
Current price $25.00
Free shipping
This kind of the Converter is a VGA video converter. It converts VGA input into HDMI® to allow PC users to show their image not only on the PC’s monitor, but could also on TV,... Read more

Overview

Bytecc

Bytecc HM-CV030 VGA to HDMI® converter with audio and USB for power

This kind of the Converter is a VGA video converter. It converts VGA input into HDMI® to allow PC users to show their image not only on the PC’s monitor, but could also on TV, to have a large display. The conversion is along with the audio. HM-CV030 offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Product Details

General Information
Manufacturer
Bytecc
Part Number
HM-CV030
Product Type
Converter
California Residents
Specifications
Color
Black
Miscellaneous
Features
Signal Inputs/Output




Input Video Signal


0.5 -1.0 volts p-p

Input DDC Signal


5 volts p-p (TTL)

Output Video


HDMI® 1.3a

VGA Resolution


640x480@60Hz /72Hz /75Hz /85Hz
800x600@60Hz /72Hz /75Hz /85 Hz
1024x768@60Hz /70Hz /75Hz /85 Hz
1280x800@60Hz
1280x960@60Hz
1280x1024@60Hz /75Hz / 85Hz
1360x768@60Hz
1680x1050@60Hz
1600x1200@60Hz
1920x1080@60Hz

Operating Frequency




Frequency


Up to 165MHz

Video Amplifier Bandwidth


1.65Gpbs/165MHz

Mechanical




Size


100*62.5*20mm

Environmental




Operating Temperature


0 ℃ to +40℃

Operating Humidity


10% to 85 % RH (no condensation)

Storage Temperature


-10℃ to +60℃

Storage Humidity


5% to 90 % RH (no condensation)
