Resists water, acids, alkalis, ozone, ultraviolet light and fungus
Offers quick and simple installation when soldered to the ground braid

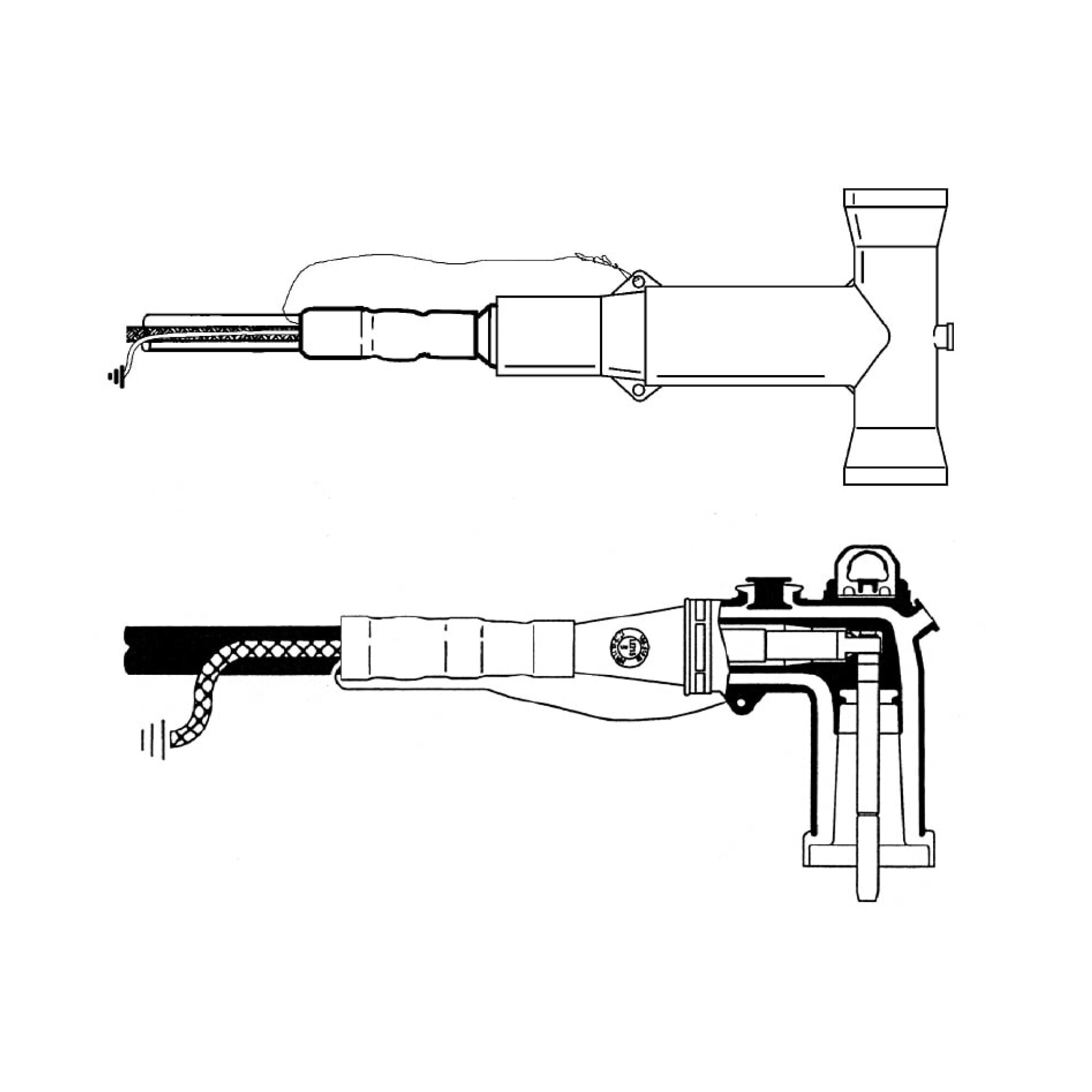

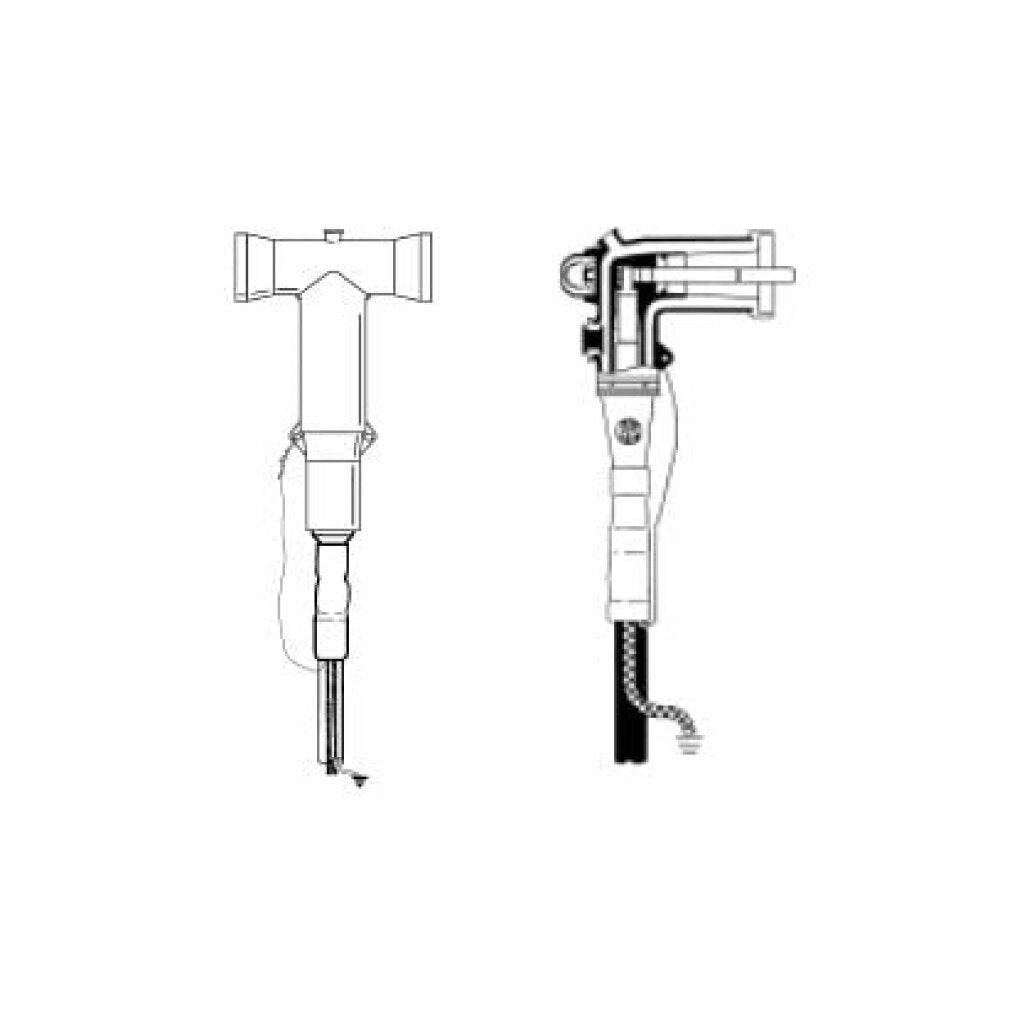

Suitable for use on accessories such as elbows, modular splices and terminations
Compatible to use on 0.83 to 1.64-in cables
Accommodates wire size of 2 AWG to 350 kcmil
Rated for 15 to 35 kV and 600 amps applications
Includes 1 cold shrink sealing tube, 3 mastic sealing strips, 1 ground braid/bleeder wire and more
3M™ Cold Shrink Shield Adapter Kit is designed to provide sealing and grounding applications on longitudinally corrugated, conventional tape, wire and power cables. It provides a 600-amp fault current on 15 to 35- kV cables. This kit offers resistance to acids, alkalis, ozone, ultraviolet light and fungus.
3M™ Cold Shrink Shield Adapter Kit includes 1 cold shrink sealing tube, 3 mastic sealing strips, 1 constant force spring, 1 pre-formed, unique integrated ground braid/bleeder wire, 1 strip semi-conductive tape and 1 instruction sheet. It is compatible with semi-conducting insulation shields and cable jackets. This flexibility adapter kit maintains the pressure even after years of aging and exposure. This water-resistant kit is ideal for use with 200-amp loadbreak elbows, up to 600-amp deadfront modulars and other accessories. ANSI Certified.
