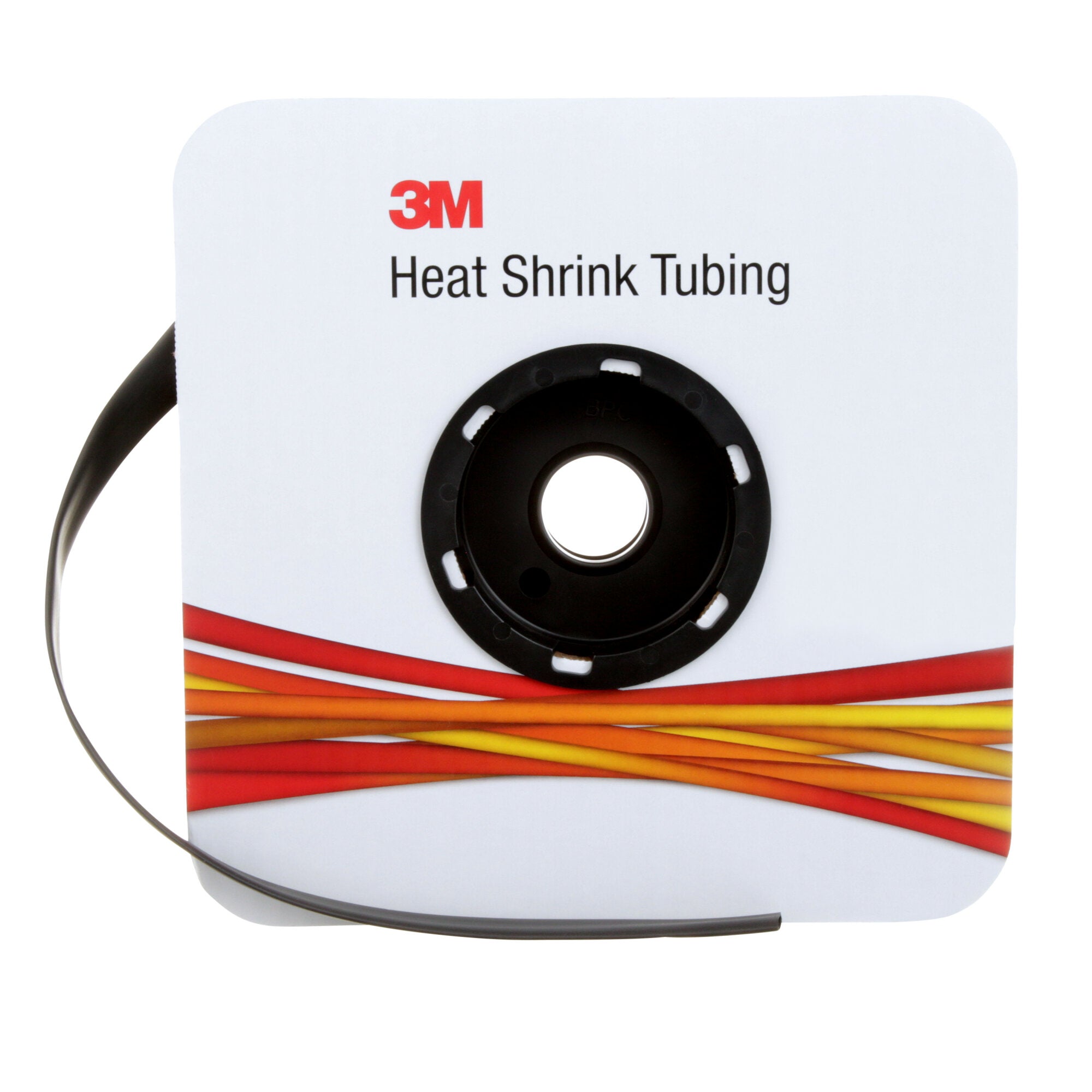

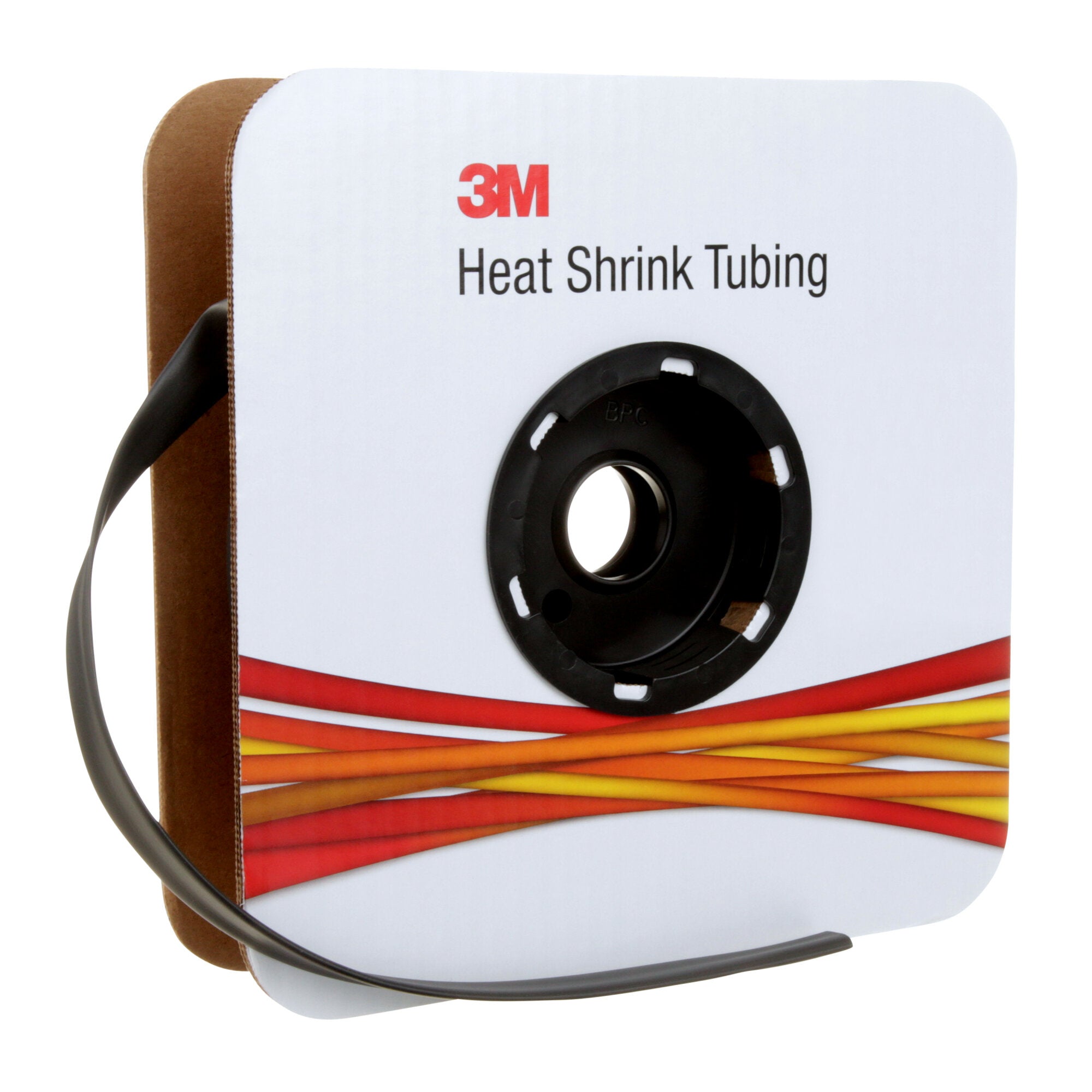

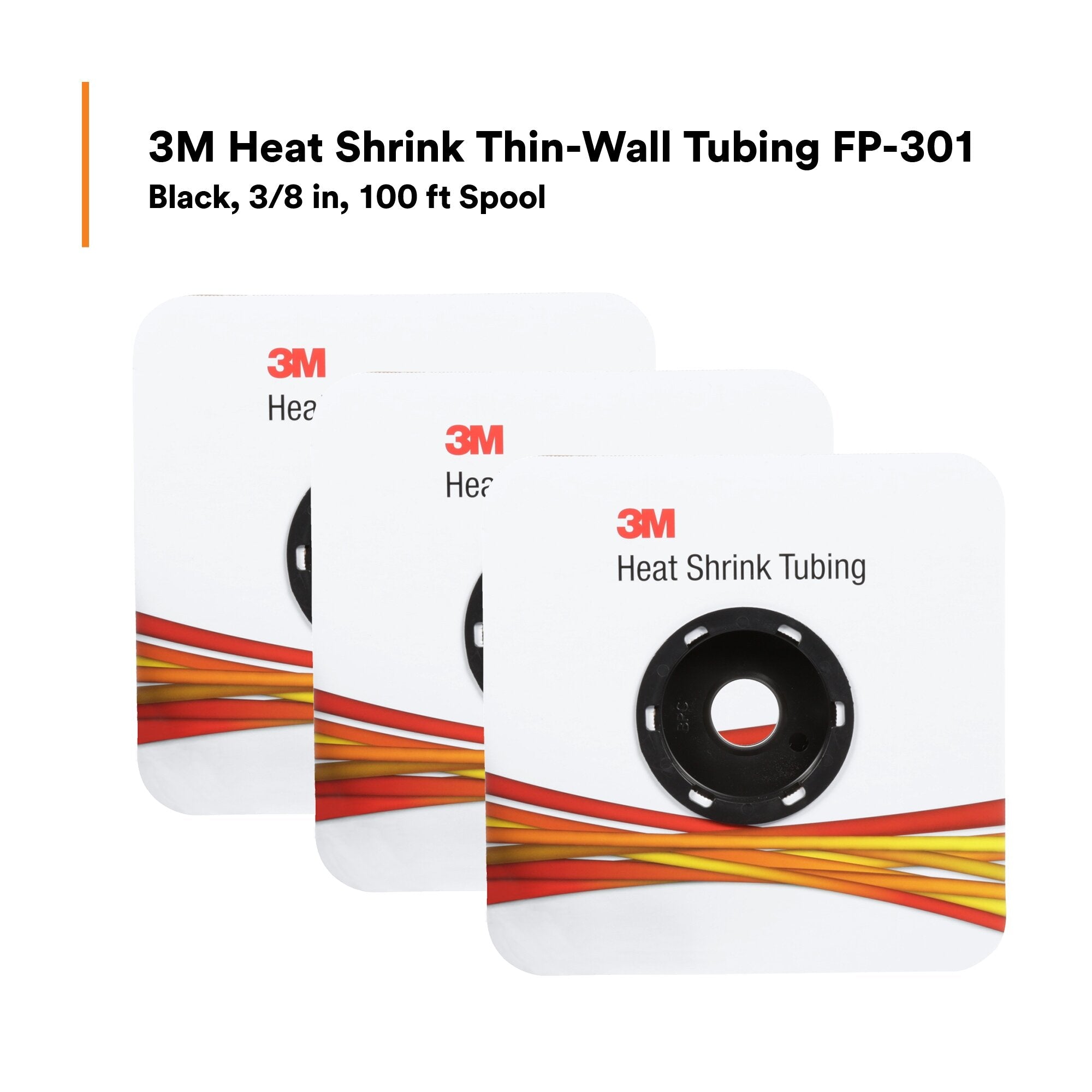

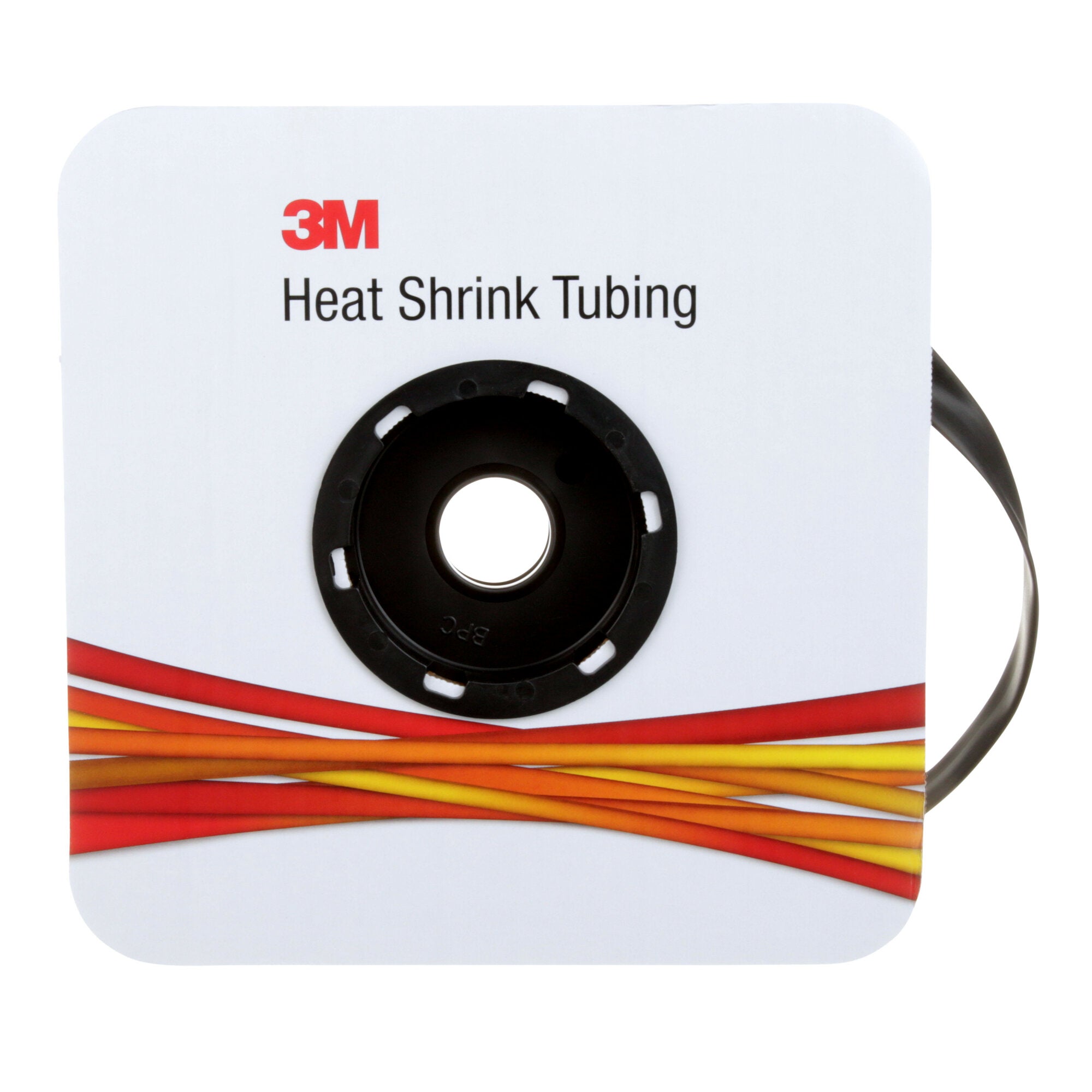

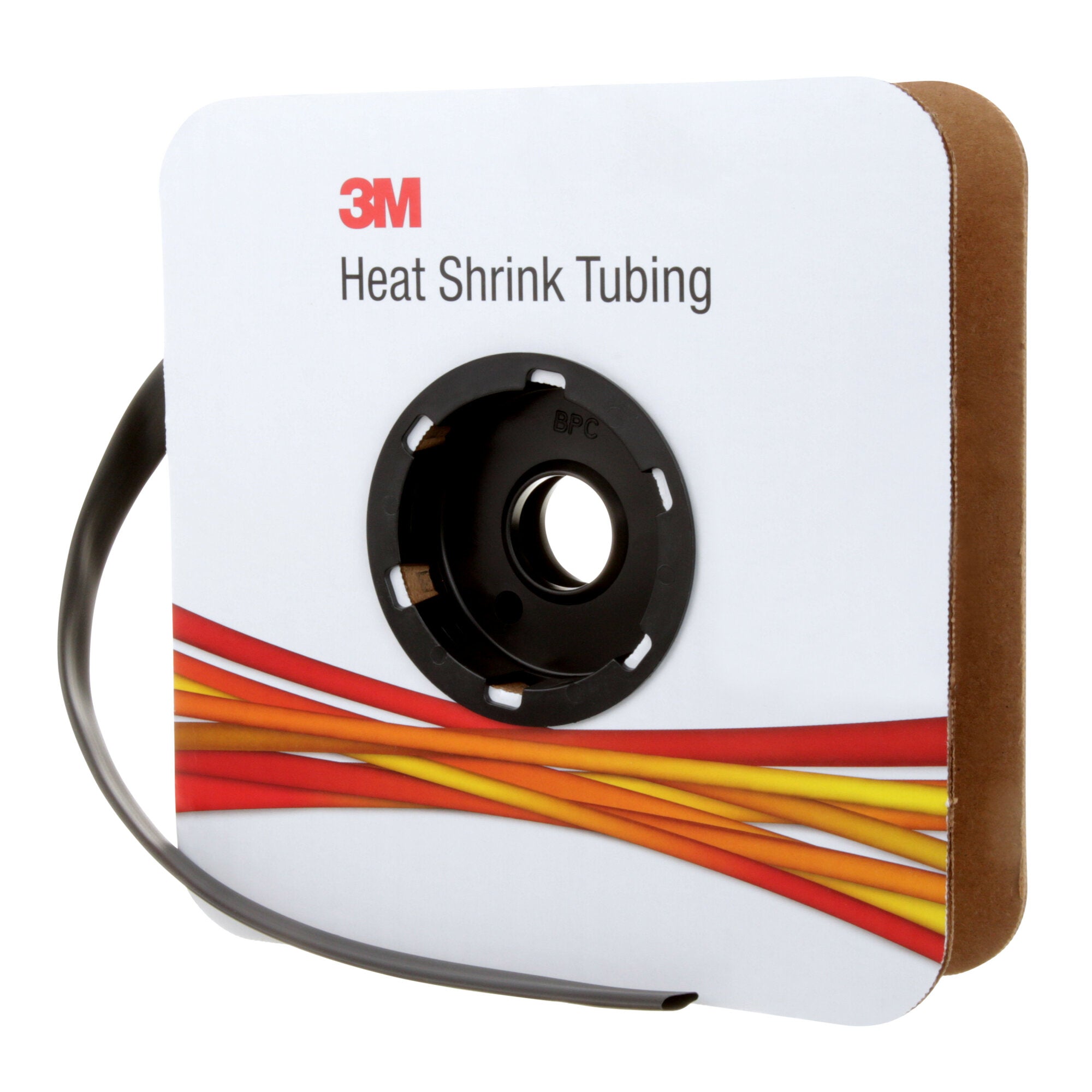

3M Heat Shrink Thin-Wall Tubing FP-301-3/8-Black-100': 100 ft spoollength

by 3M
No reviews
Original price $179.99 - Original price $179.99
Original price
$179.99
$179.99 - $179.99
Current price $179.99
Free shipping
3M Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1... Read more
Please allow 2 days for production.

Overview

3M

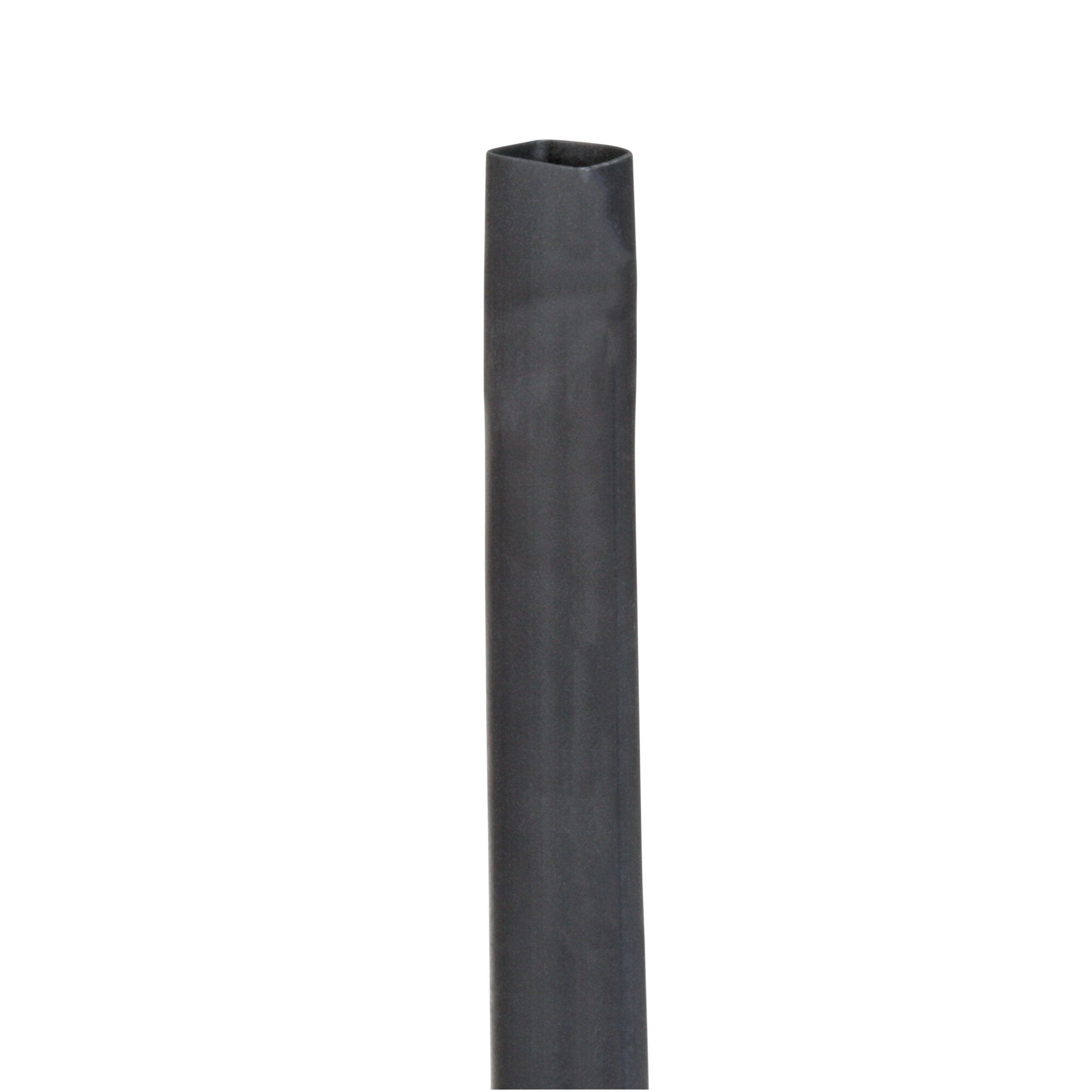

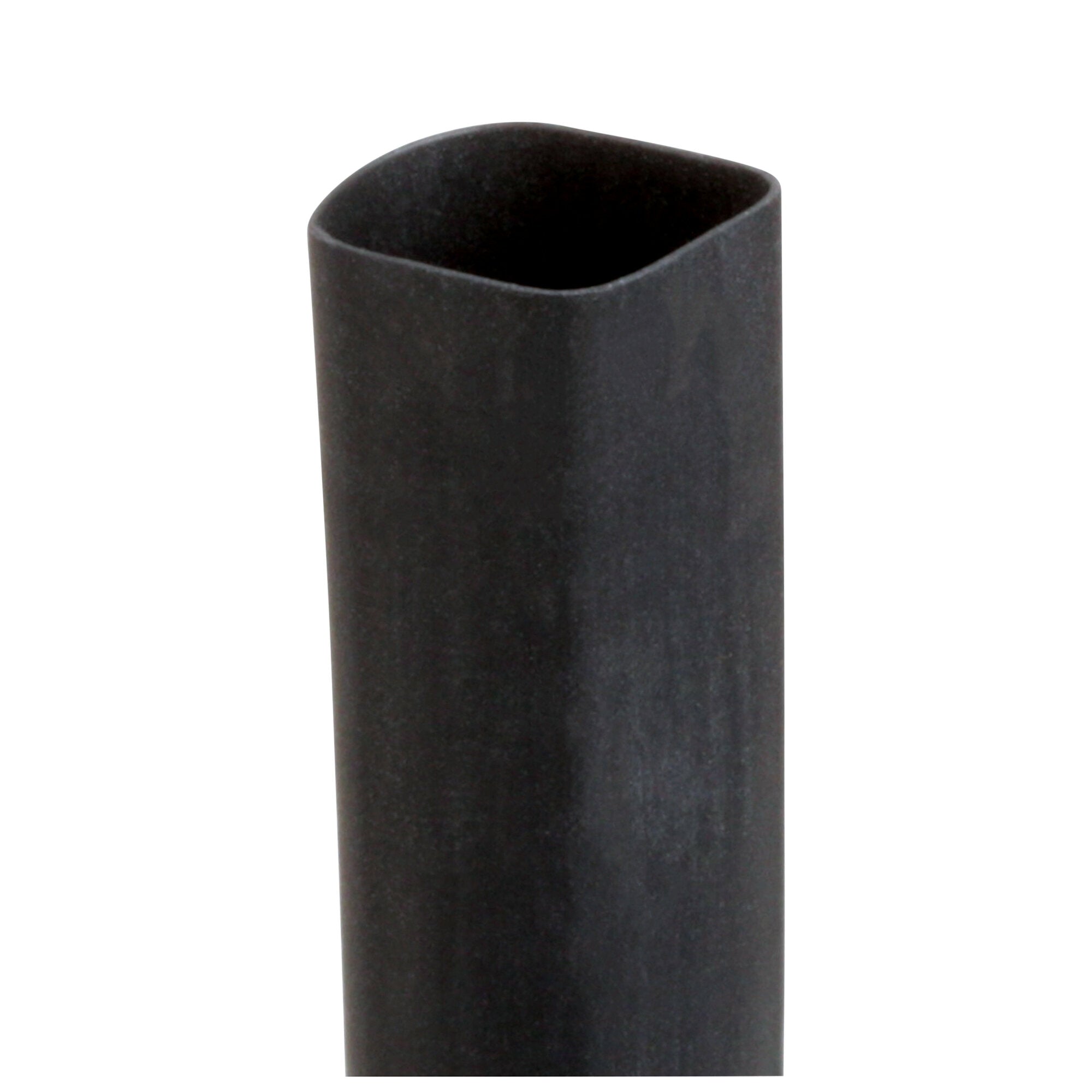

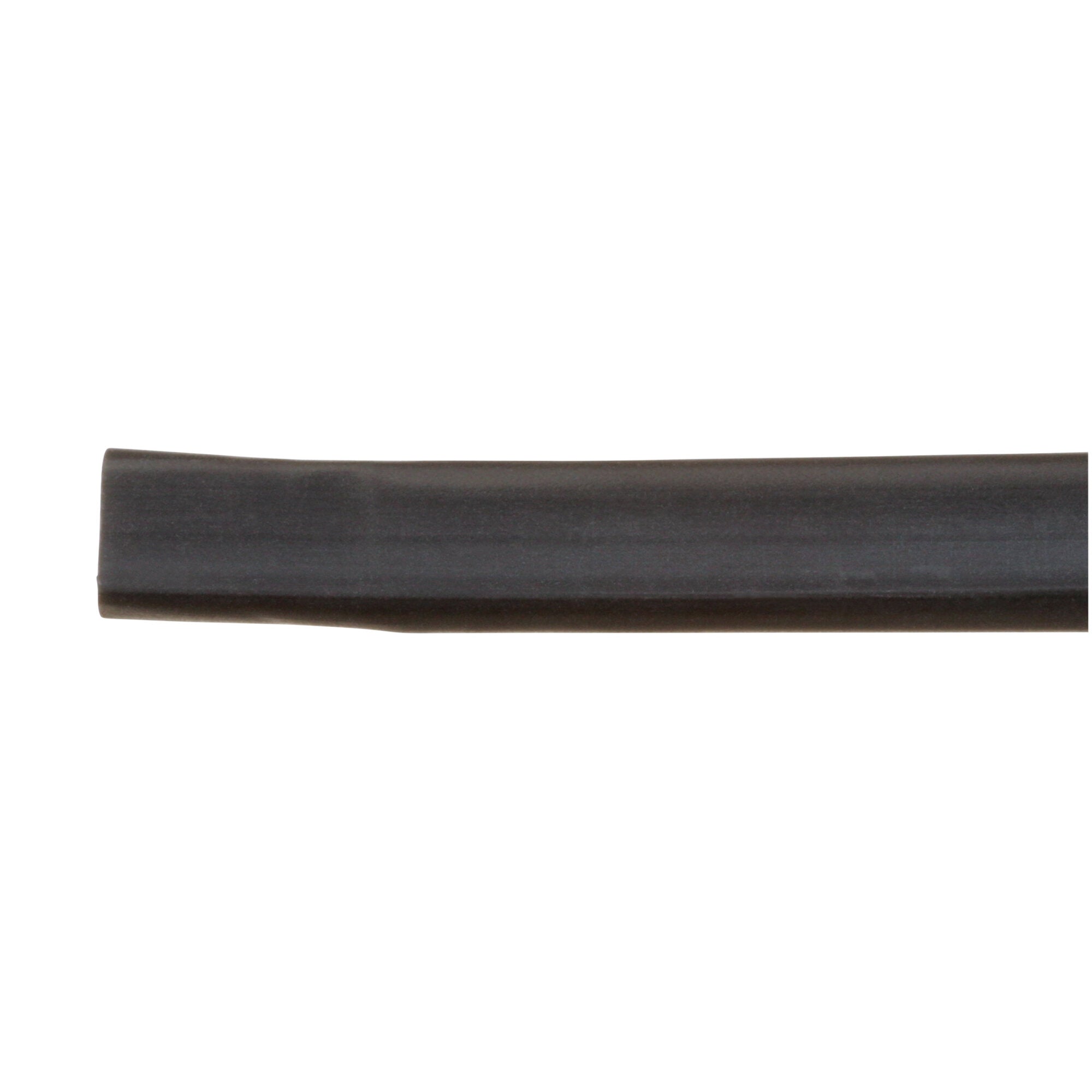

3M Heat Shrink Thin-Wall Tubing FP-301-3/8-Black-100': 100 ft spoollength

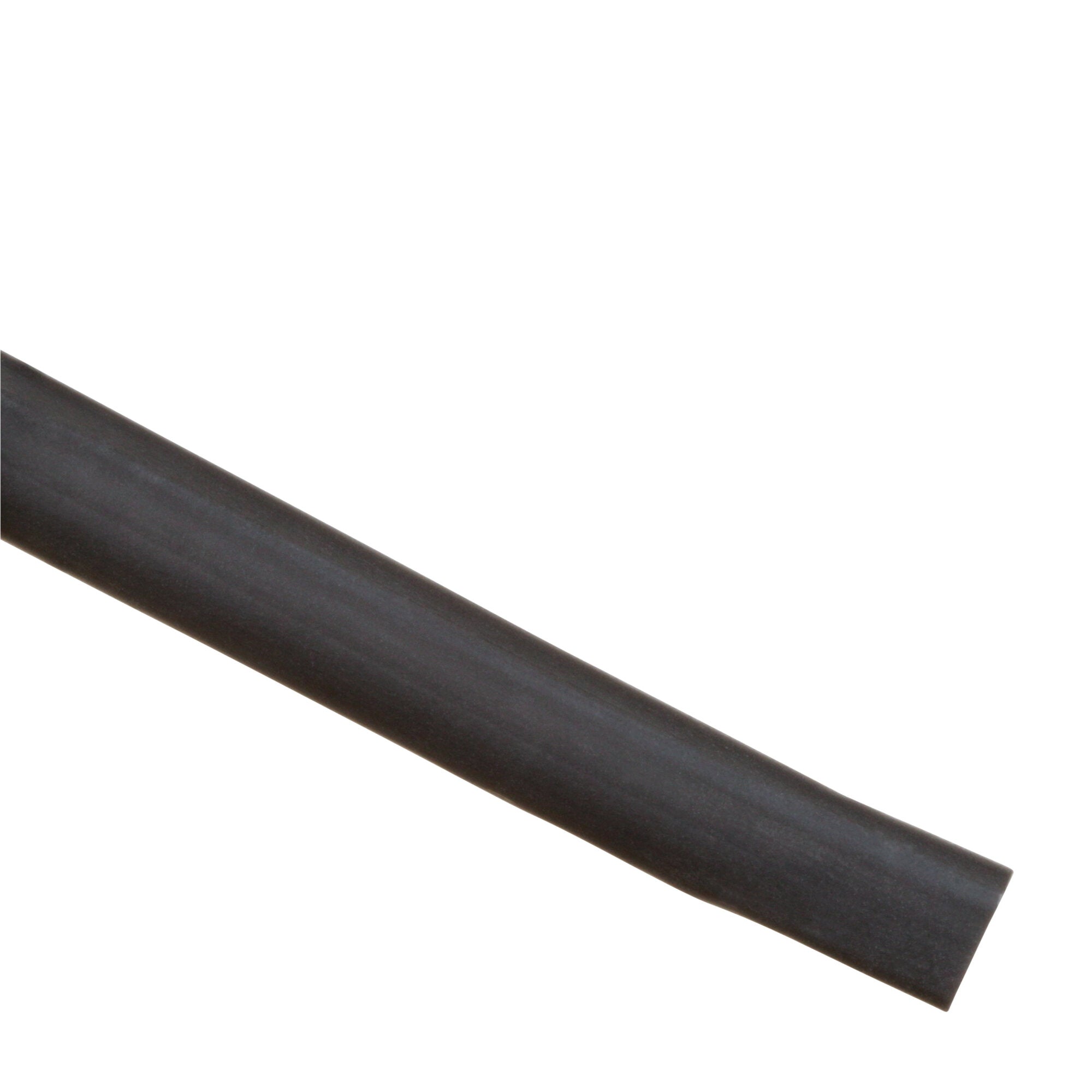

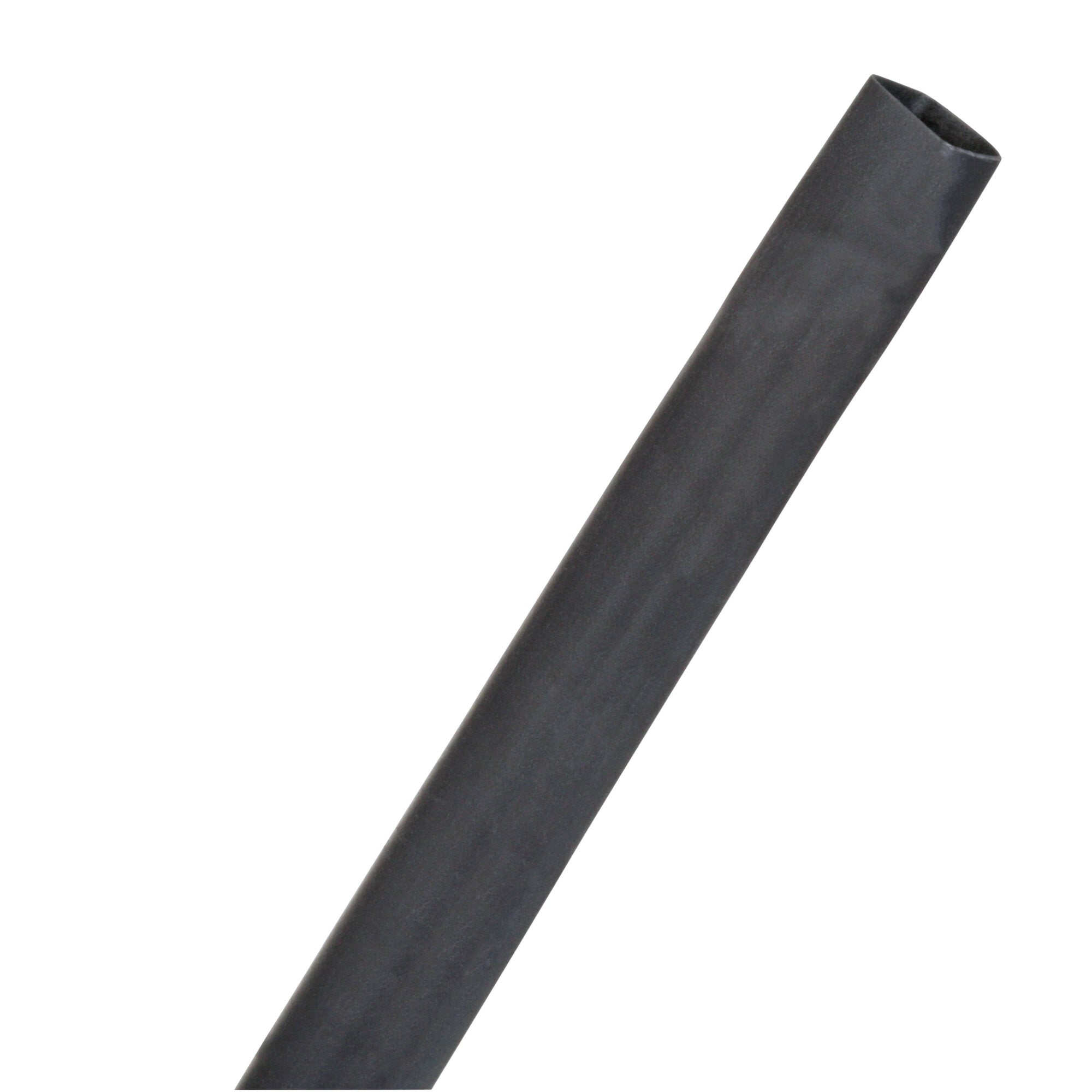

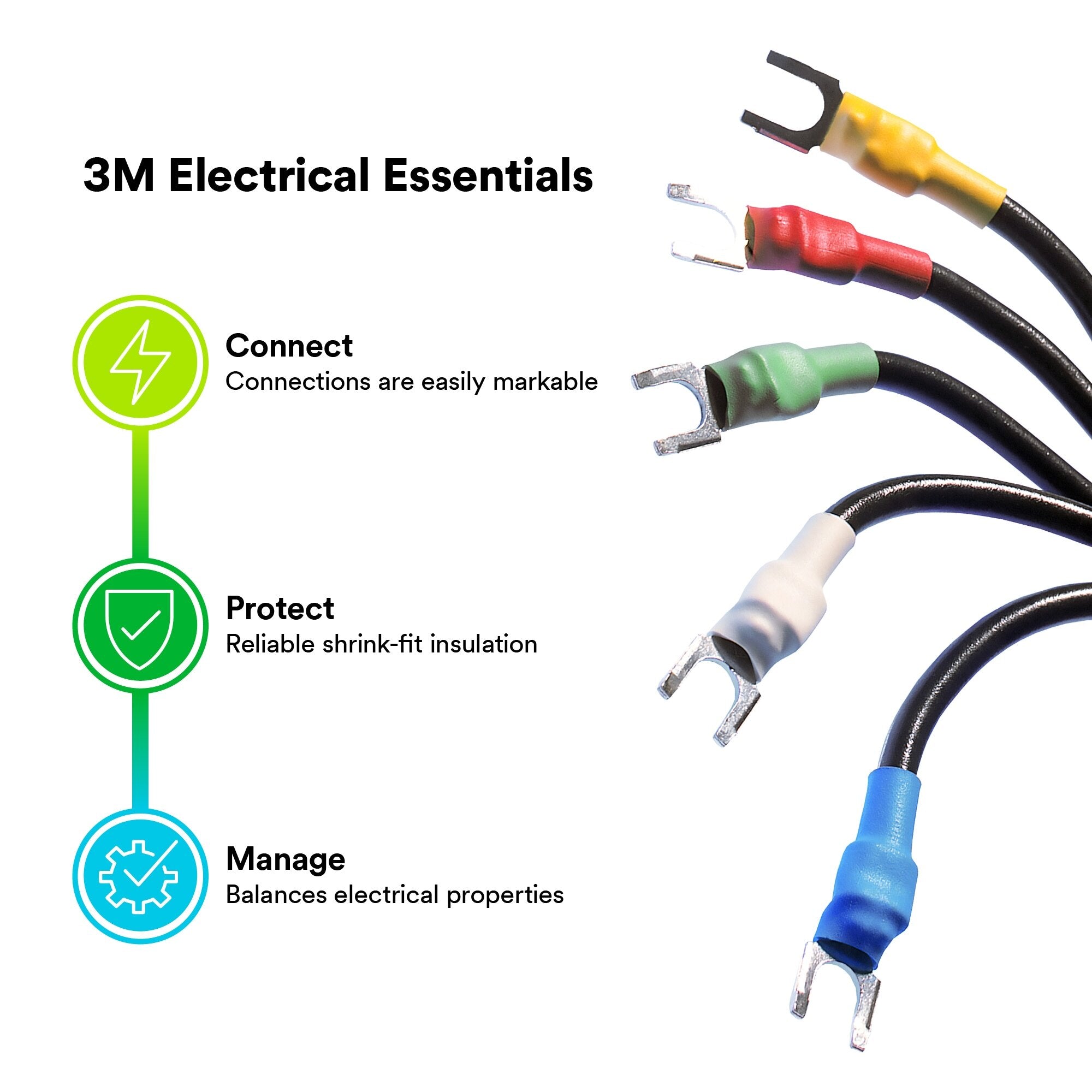

3M Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.3M™ Heat Shrink Tubing FP-301 is color coded for quick and easy identification of the wire. This split resistant, flame retardant tubing is used as shrink fit, electrical insulation over cable splices or terminations. The high expansion ratio tubing is mechanically tough, easily markable and resists cold flow. It is ideal for lightweight wire harness covering, fire resistant covering, wire marking, wire bundling and component packaging. It withstands temperatures of 67 to 275 degrees F ( 55 to 135 degrees C). UL Listed, SAE AS23053/5, Class 1, CSA Certified and RoHS 2011/65/EU Compliant.

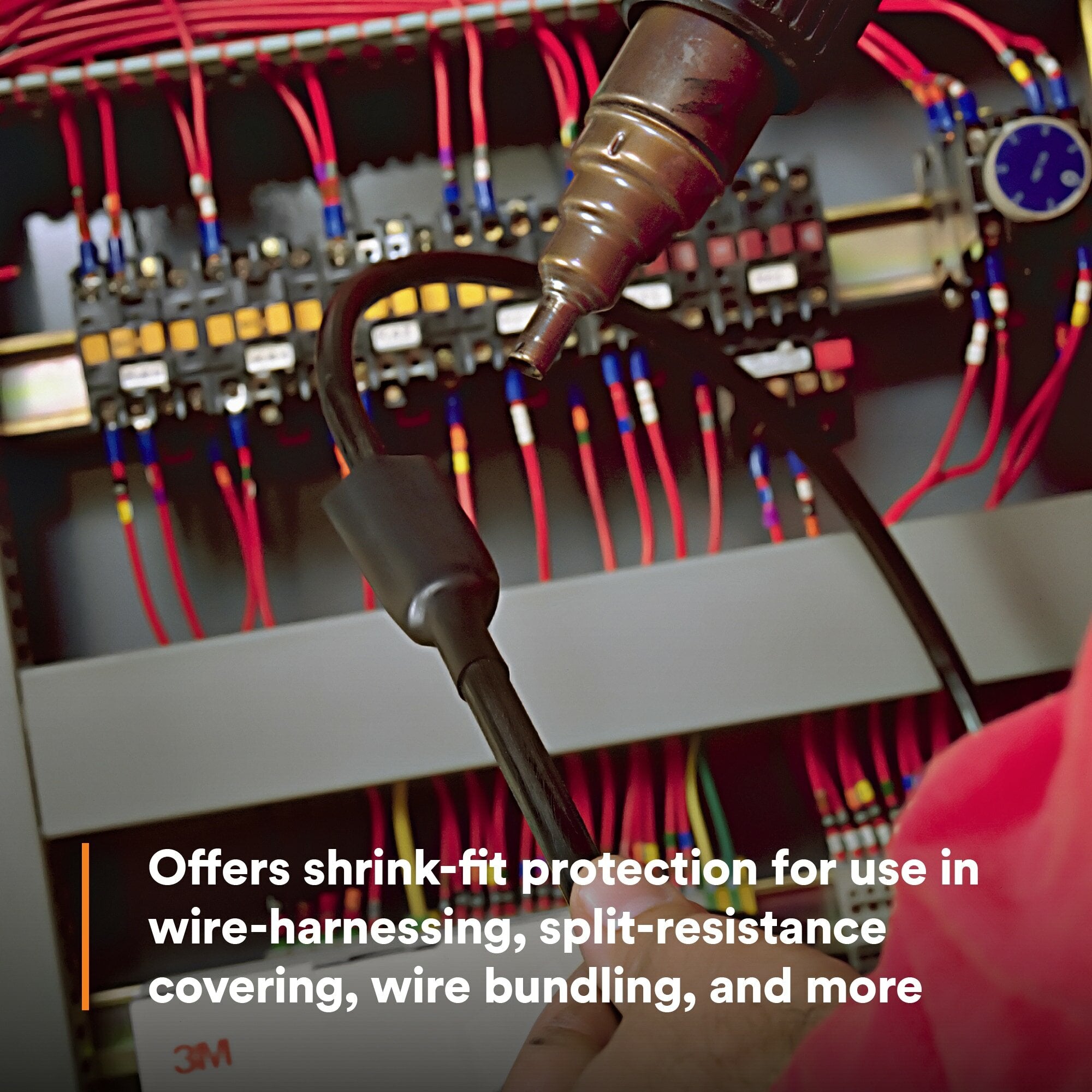

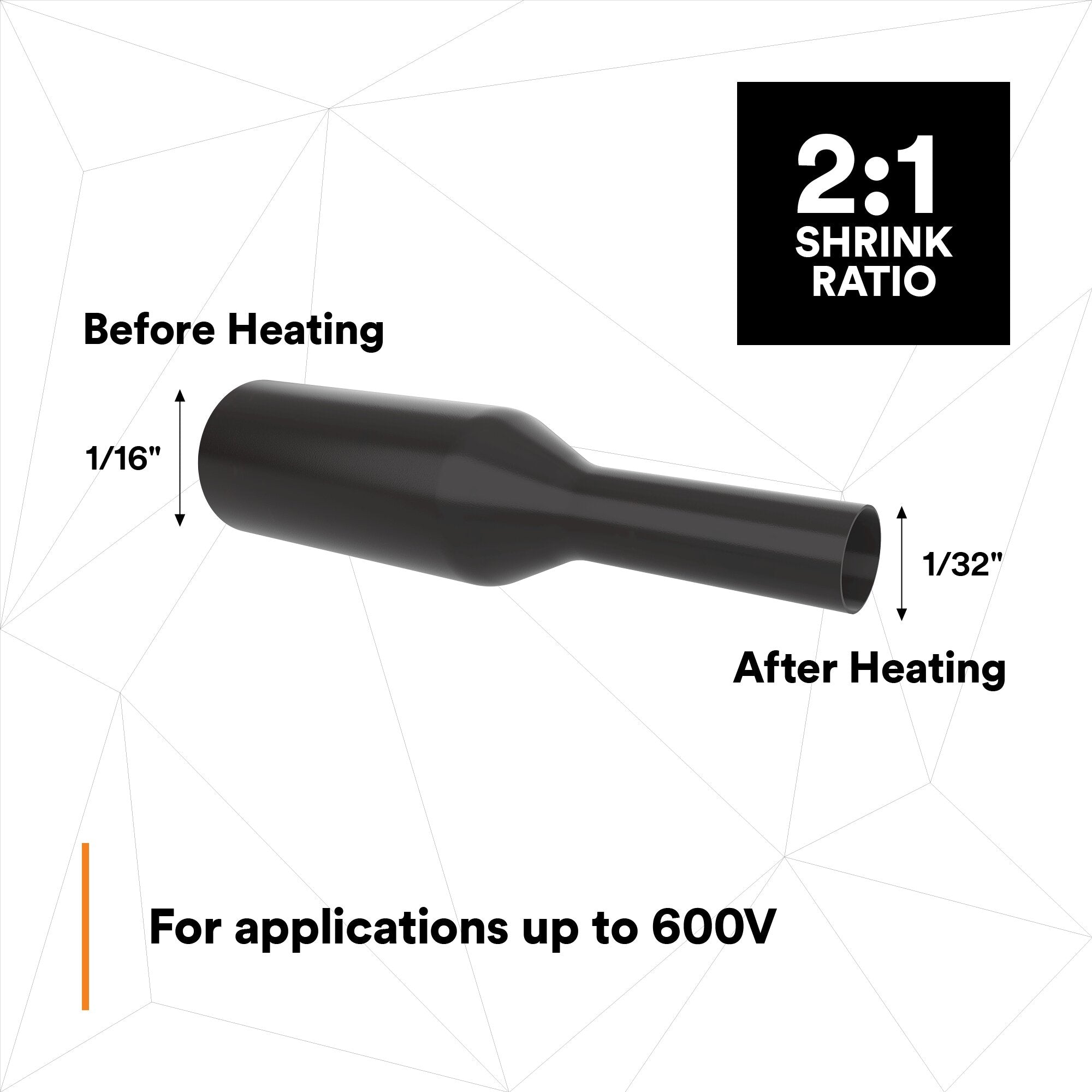

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging

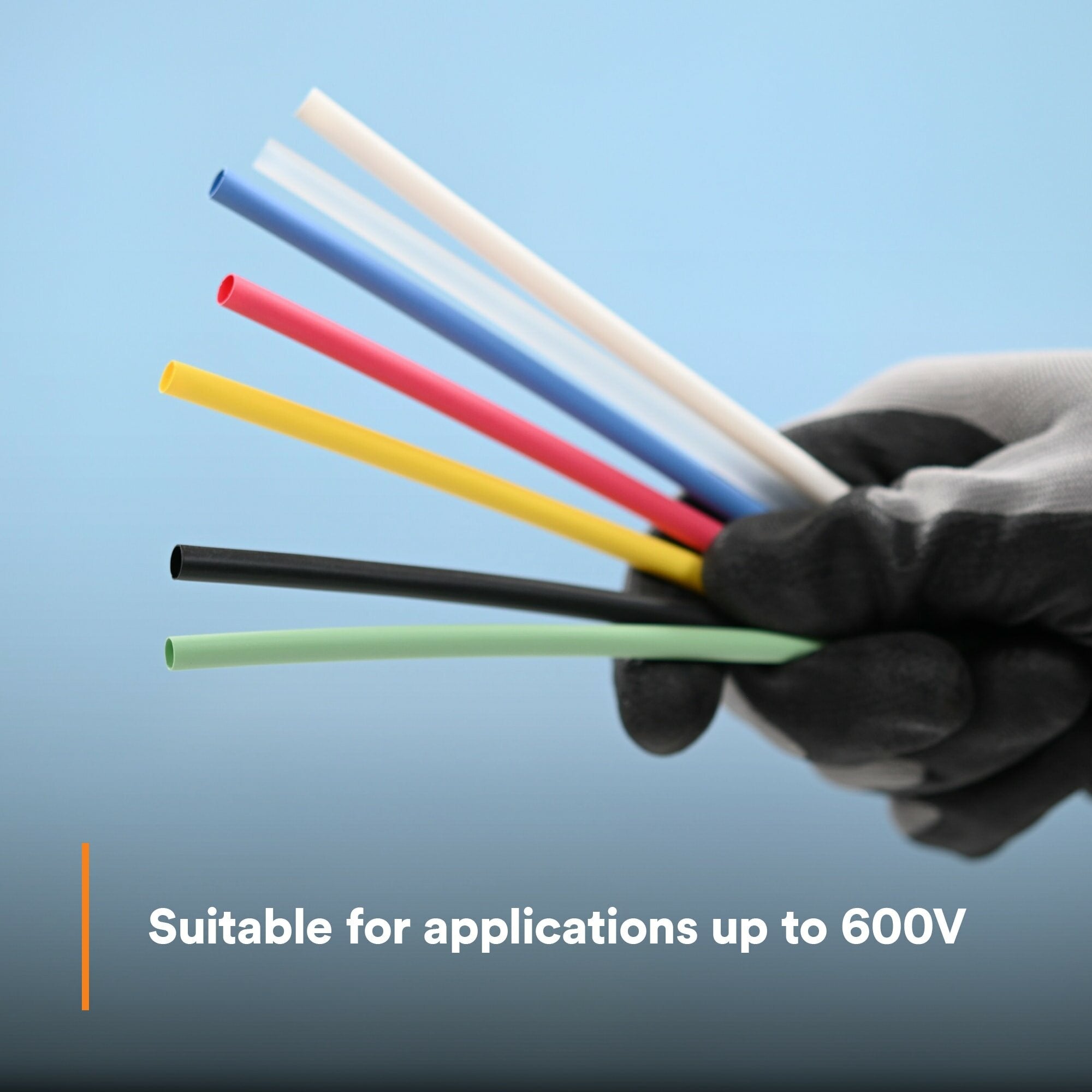

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
3M™
Heat Shrink Type
Single-Wall Polyolefin Heat Shrink Tubing
Tubing Type
Single Wall (Thin)
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Expanded Inner Diameter
0.375 in
Expanded Inner Diameter (Metric)
9.53 mm
Inner Diameter After Shrink (Imperial)
0.187 in
Inner Diameter After Shrink (Metric)
4.75 mm
Inner Diameter Before Shrink (Imperial)
0.375 in
Inner Diameter Before Shrink (Metric)
9.53 mm
Maximum Operating Temperature (Celsius)
135 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
275 Degree Fahrenheit
Minimum Shrink Temperature (Celsius)
100 Degree Celsius
Operating Temperature (Celsius)
-55 to 135 Degrees Celsius
Operating Temperature (Fahrenheit)
-67 °F to 275 °F
Operating Temperature Range (Celsius)
-55 °C to +135 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 275 °F
Overall Length (Imperial)
100 ft
Overall Length (Metric)
30.5 m
Recovered Inner Diameter
3 in
Recovered Inner Diameter (Metric)
4.7498 mm
Tensile Strength (Imperial)
2400 Pound-Force Per Square Inch
Operating Temperature Celsius
-55 to 135 Degrees Celsius
Overall Length Imperial
100.0
Other Details
Applicable SAE-AMS-DTL-23053 Specifications
23053/5 class 1
Elongation
400 %
Flame Retardant
Yes
Mil Spec
AMS-DTL-23053/5, Class 1
Minimum Expanded Tubing I. D.
3 in
Non-Corrosive
Yes
Shrink Ratio
2:1
Solution For
Access Network: FTTH/FTTB/CATV
UL File Number
E-39100
Units Per Case
3.0
With Inner Glue
No
Tensile Strength Imperial
2400 Pound-Force Per Square Inch
Material and Composition
Material
Flexible Polyolefin
Shelf Life
3600
Color and Appearance
Product Color
Black
Certifications and Standards
Additional Flammability Rating
23053/5 class1
Agency Approvals
CSA, UL Recognized
Flammability Rating
UL 224 All Tubing Flame Test
UL Approval
Yes
