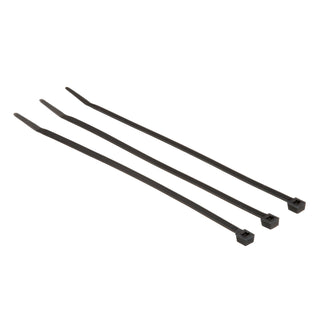

3M Cable Tie CT8BK50-C

by 3M
No reviews
Original price $23.99 - Original price $23.99
Original price
$23.99
$23.99 - $23.99
Current price $23.99
Free shipping
Never worry about your wire bundles slipping when you use 3M Standard Cable Ties. You can thread and install these ties in a flash with the curved tips, and their 6/6 nylon construction can tolerate... Read more
Please allow 2 days for production.

Overview

3M

3M Cable Tie CT8BK50-C

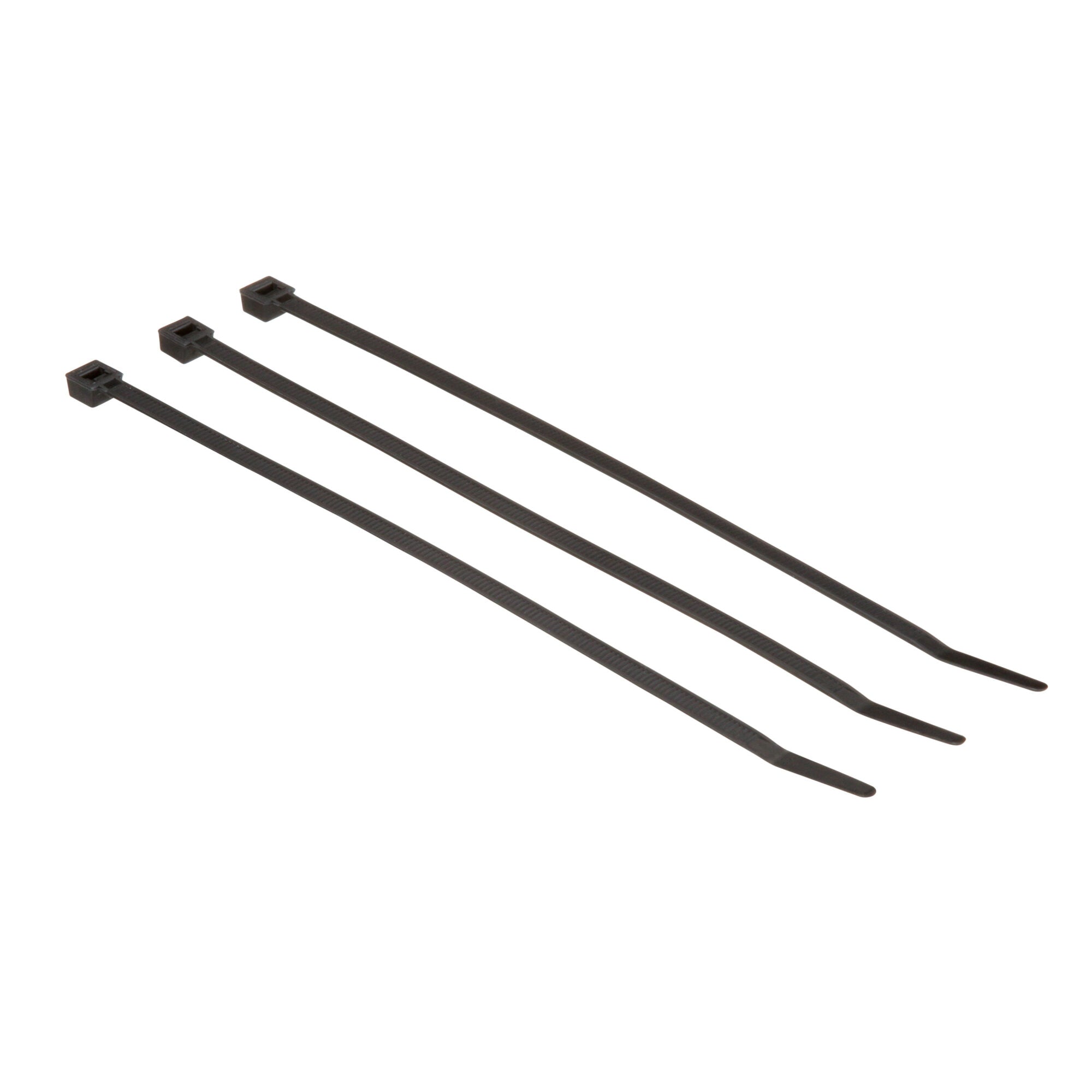

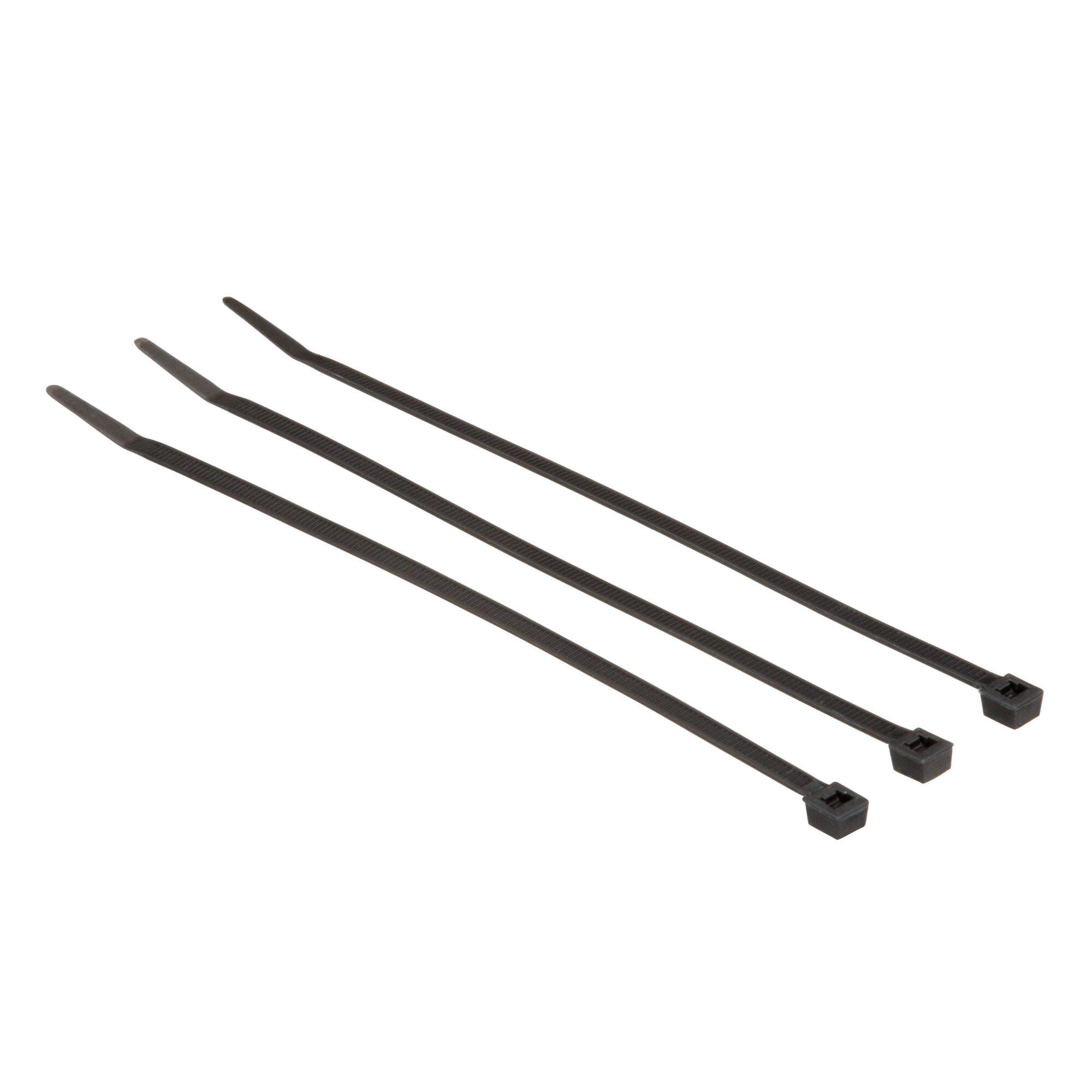

Never worry about your wire bundles slipping when you use 3M Standard Cable Ties. You can thread and install these ties in a flash with the curved tips, and their 6/6 nylon construction can tolerate tough conditions. Rely on our Standard Cable Ties to securely hold your wires and harness components in temperatures between -40 to 185 degrees F (-40 to 85 degrees C).3M™ Standard Nylon Cable Ties are available in several tensile strengths ranging from 18 lb. to 175 lb. and multiple lengths ranging from 4 inches to 48 inches to cover your needs. They are offered in natural and red for indoor use and UV weather-resistant black for indoor and outdoor use. UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces. Made in the USA.
  • Secure wire bundles and harness components quickly, without slipping
  • Curved tip allows for faster threading and installation
  • Made in the USA
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces

Product Details

General Information
Brand
3M™
Cable Tie Type
Standard
Product Type
Cable Ties
Tape Type
Barricade
Type
Standard
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications

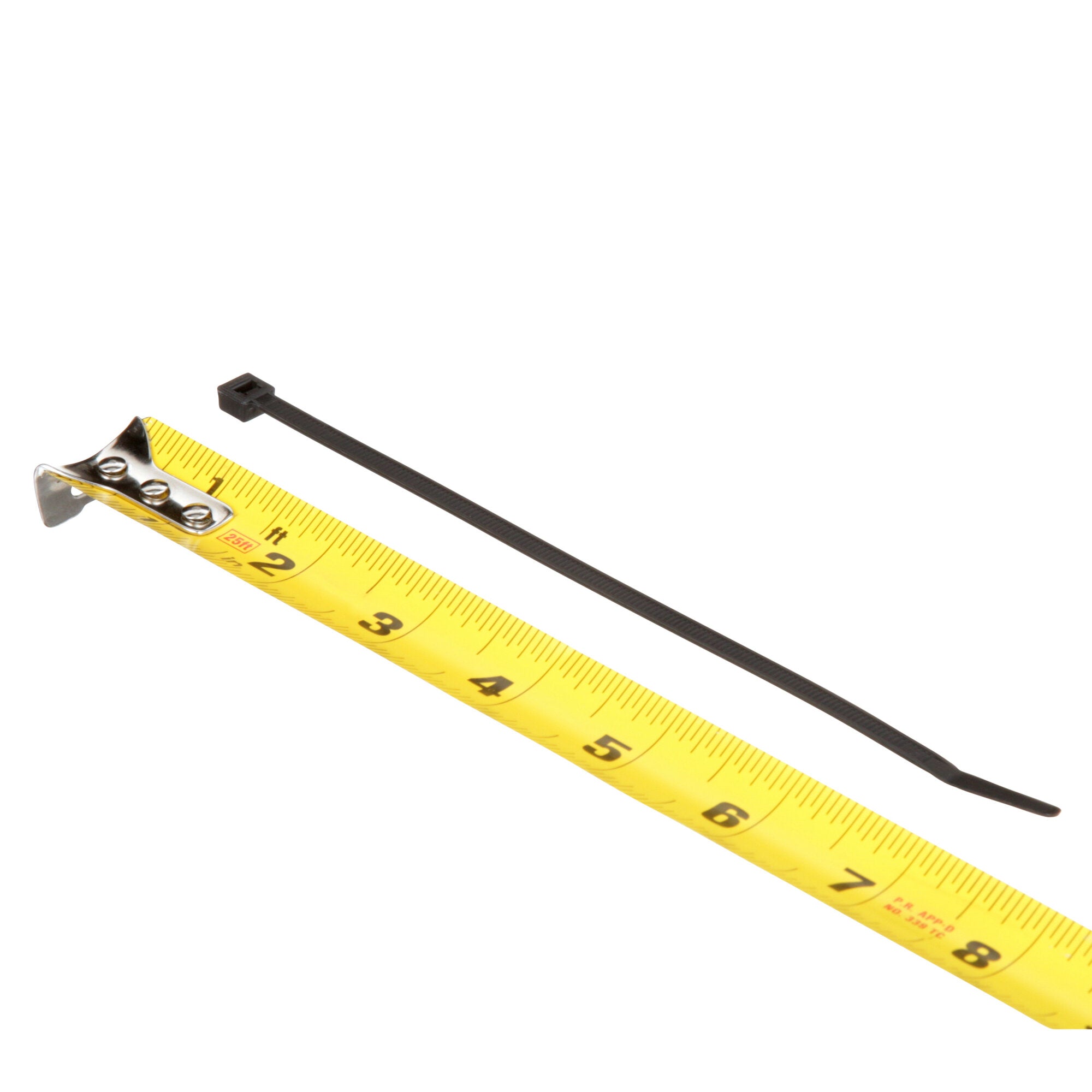

Approximate Length
8
Cable Diameter Range
8,1 - 39,4 mm
Cable Length (Imperial)
8 in
Cable Length (Metric)
193.04 mm
Cable Tie Base Height
8 in
Cable Tie Length
193 mm
Maximum Bundle Diameter
1.87 Inch
Maximum Bundle Diameter (Metric)
51 mm
Maximum Insulation Outer Diameter (Metric)
3.7 mm
Maximum Insulation Outside Diameter
0.145 in
Maximum Operating Temperature
85 Degree Celsius
Maximum Operating Temperature (Celsius)
85 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
185 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Minimum Bundle Diameter
0.0625 Inch
Minimum Bundle Diameter (Metric)
1.6 mm
Minimum Installation Temperature (Celsius)
-20 Degree Celsius
Minimum Installation Temperature (Fahrenheit)
-4 Degree Fahrenheit
Minimum Operating Temperature (Celsius)
-40 Degree Celsius
Minimum Operating Temperature (Fahrenheit)
-40 Degree Fahrenheit
Operating Temperature (Celsius)
85 Degree Celsius
Operating Temperature (Fahrenheit)
185 Degree Fahrenheit
Operating Temperature Range (Celsius)
-40 °C to 85 °C
Operating Temperature Range (Fahrenheit)
-40 °F to 185 °F
Overall Length (Imperial)
7.6 in
Overall Length (Metric)
193 mm
Overall Width (Imperial)
0.18 in
Overall Width (Metric)
4.6 mm
Tensile Strength (Imperial)
50 lbs
Tensile Strength (Metric)
22.68 kg
Maximum Insulation Outer Diameter Metric
3.7
Operating Temperature Celsius
85 Degree Celsius
Other Details
Cable Management Products
Cable Ties
Mil Spec
MS3367-1-0

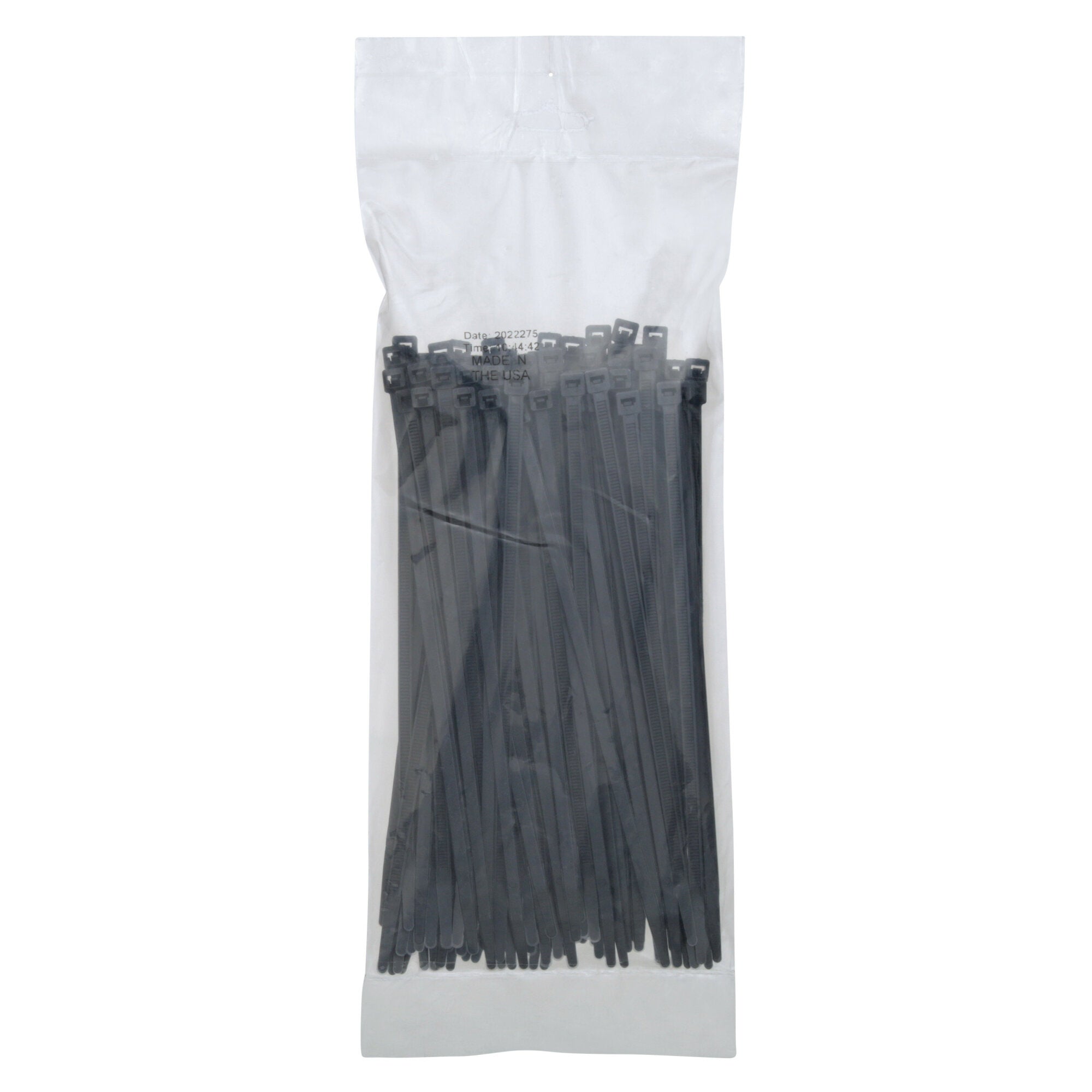

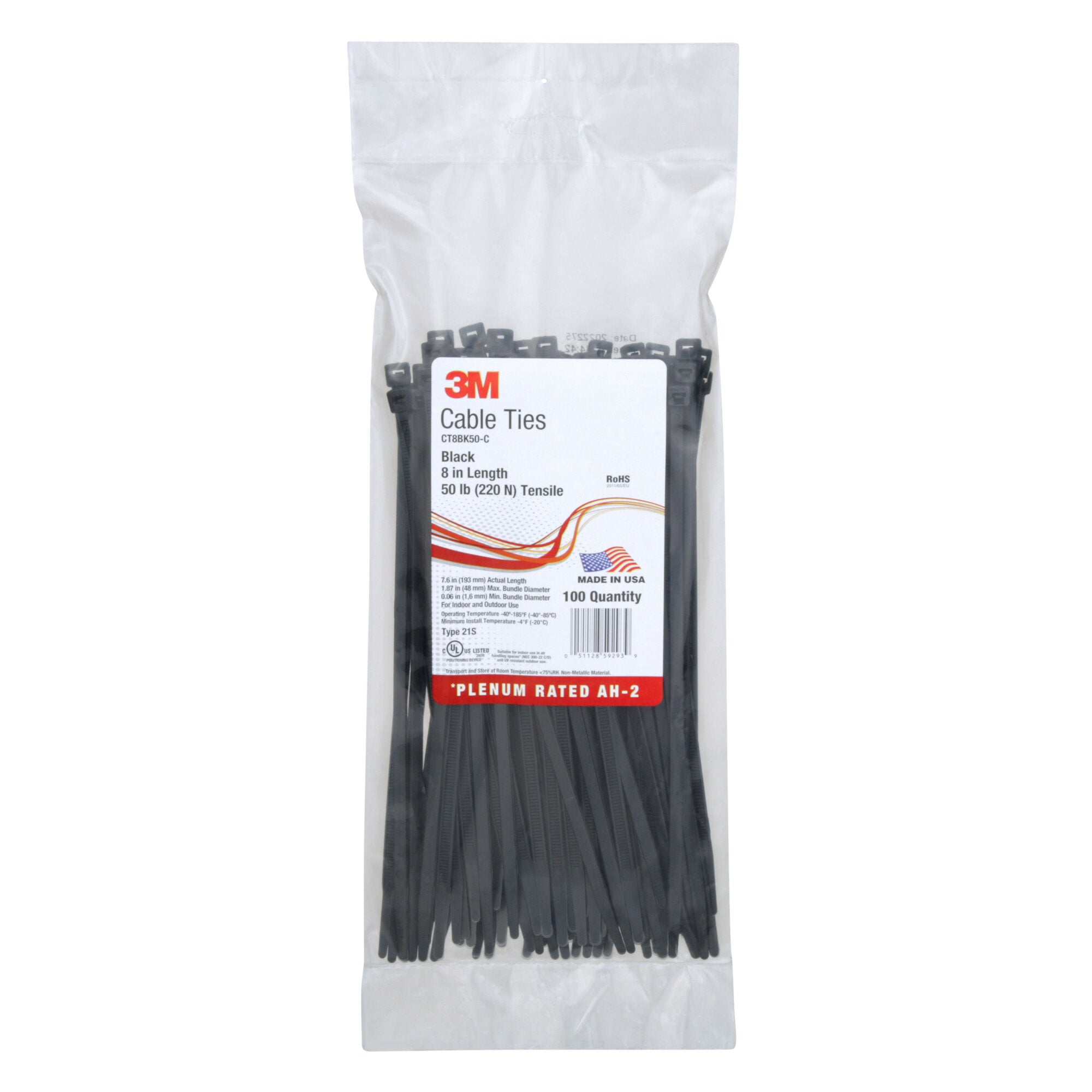

Package Quantity
100
Plenum Rated
Yes
Solution For
Wireless Network: Backhaul
UV Resistant
Yes
Units Per Case
1000.0
Units Per Bag
100
Tensile Strength Imperial
50 lbs
Material and Composition
Material
Nylon 6/6
Color and Appearance
Product Color
Black
Certifications and Standards
Flammability Rating
UL 94 V-2
UL Approval
Yes
