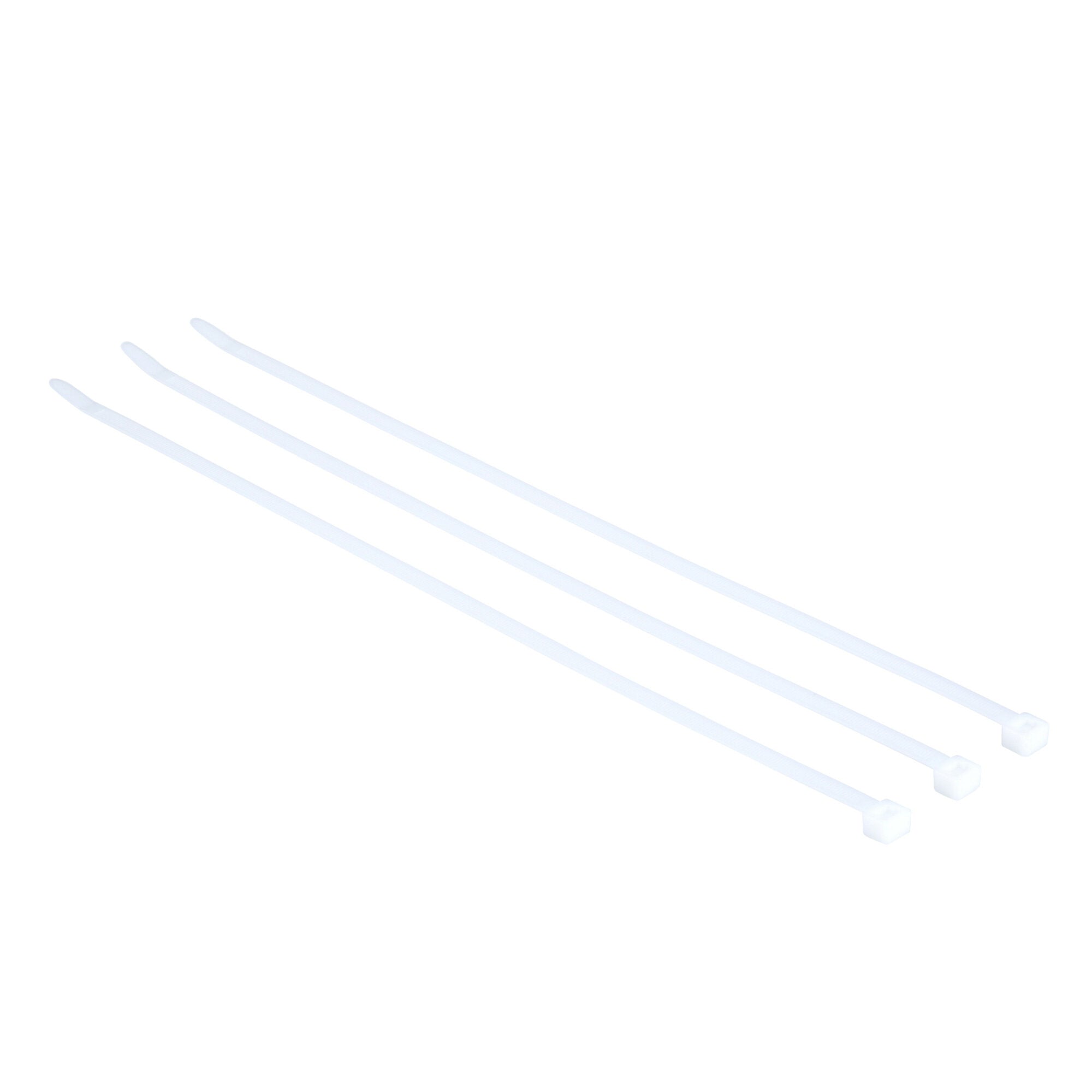

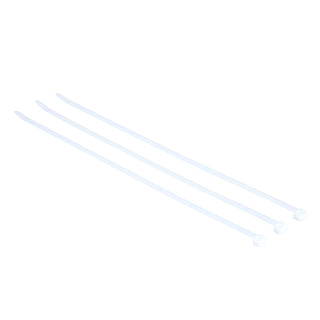

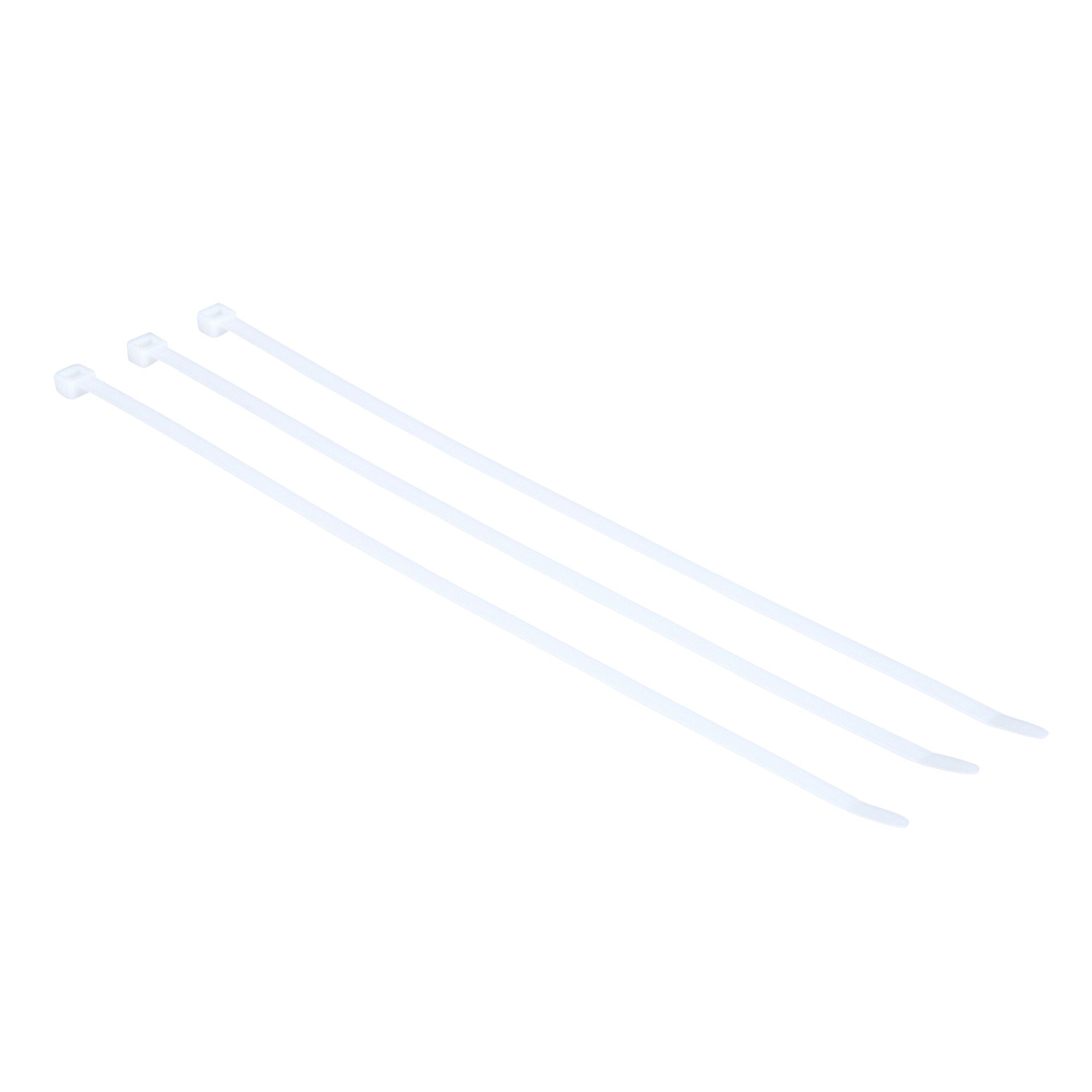

3M Cable Tie CT15NT120-D

by 3M
No reviews
Original price $234.99 - Original price $234.99
Original price
$234.99
$234.99 - $234.99
Current price $234.99
Free shipping
3M Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature... Read more
Please allow 2 days for production.

Overview

3M

3M Cable Tie CT15NT120-D

3M Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.3M™ Standard Nylon Cable Ties are available in several tensile strengths ranging from 18 lb. to 175 lb. and multiple lengths ranging from 4 inches to 48 inches to cover your needs. They are offered in natural and red for indoor use and UV weather-resistant black for indoor and outdoor use. UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces. Made in the USA.
  • Secure wire bundles and harness components quickly, without slipping
  • Curved tip allows for faster threading and installation
  • Made in the USA
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces

Product Details

General Information
Brand
3M™
Product Type
Cable Ties
Type
Standard
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications

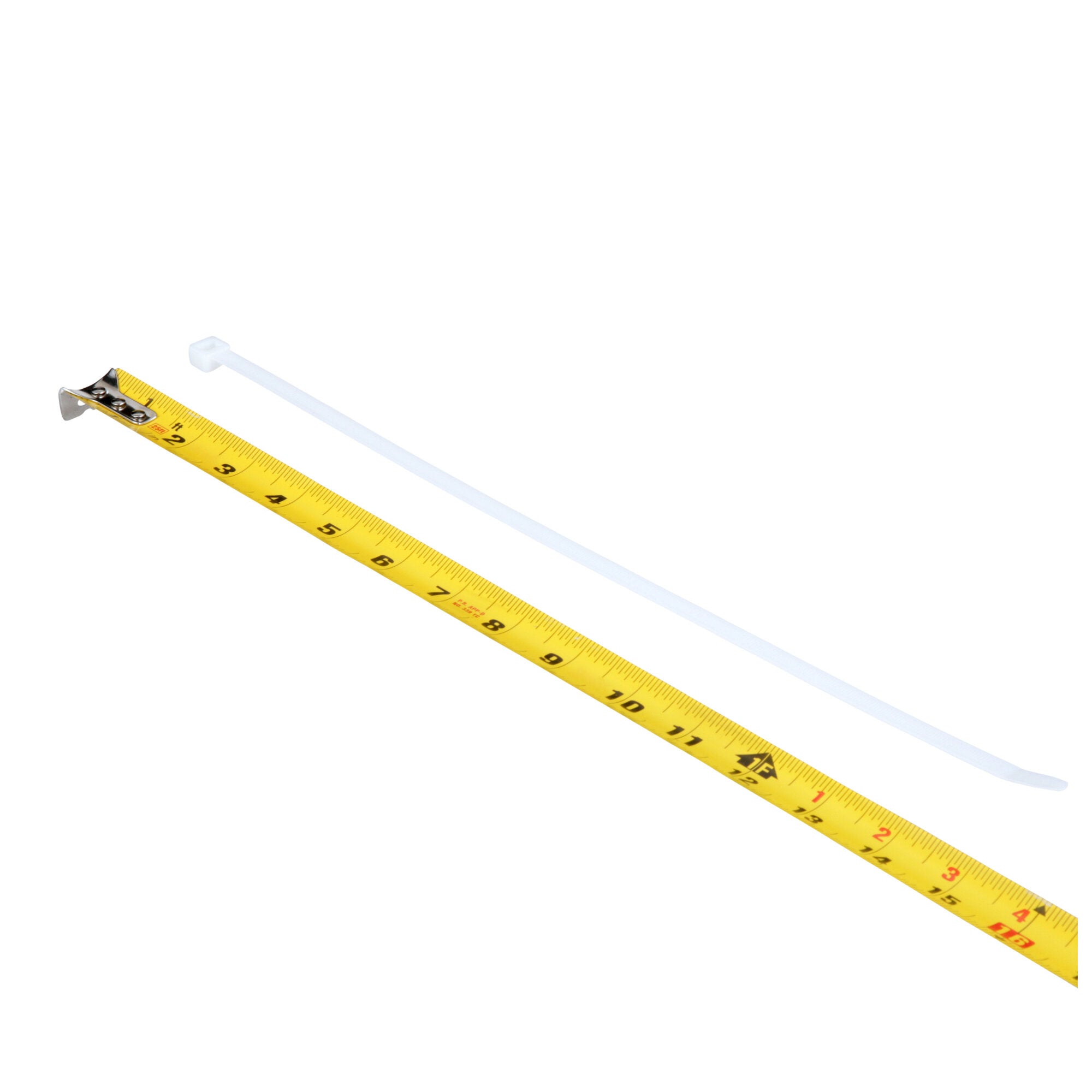

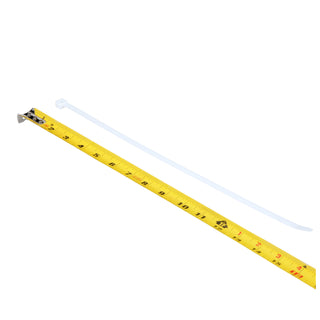

Approximate Length
15
Cable Diameter Range
8,1 - 39,4 mm
Cable Length (Imperial)
15 in
Cable Length (Metric)
381 mm
Cable Tie Base Height
15 in
Cable Tie Length
381 mm
Maximum Bundle Diameter
4 Inch
Maximum Bundle Diameter (Metric)
102 mm
Maximum Insulation Outer Diameter (Metric)
3.7 mm
Maximum Insulation Outside Diameter
0.145 in
Maximum Operating Temperature
85 Degree Celsius
Maximum Operating Temperature (Celsius)
85 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
185 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Minimum Bundle Diameter
0.1875 Inch
Minimum Bundle Diameter (Metric)
4.8 mm
Minimum Installation Temperature (Celsius)
-20 Degree Celsius
Minimum Installation Temperature (Fahrenheit)
-4 Degree Fahrenheit
Minimum Operating Temperature (Celsius)
-40 Degree Celsius
Minimum Operating Temperature (Fahrenheit)
-40 Degree Fahrenheit
Operating Temperature (Celsius)
85 Degree Celsius
Operating Temperature (Fahrenheit)
185 Degree Fahrenheit
Operating Temperature Range (Celsius)
-40 °C to 85 °C
Operating Temperature Range (Fahrenheit)
-40 °F to 185 °F
Overall Length (Imperial)
15 in
Overall Length (Metric)
381 mm
Overall Width (Imperial)
0.298 in
Overall Width (Metric)
7.6 mm
Recovered Inner Diameter (Metric)
4.75 mm
Tensile Strength (Imperial)
120 lbs
Tensile Strength (Metric)
54.43 kg
Maximum Insulation Outer Diameter Metric
3.7
Operating Temperature Celsius
85 Degree Celsius
Other Details
Cable Management Products
Cable Ties
Mil Spec
MS3367-3-9

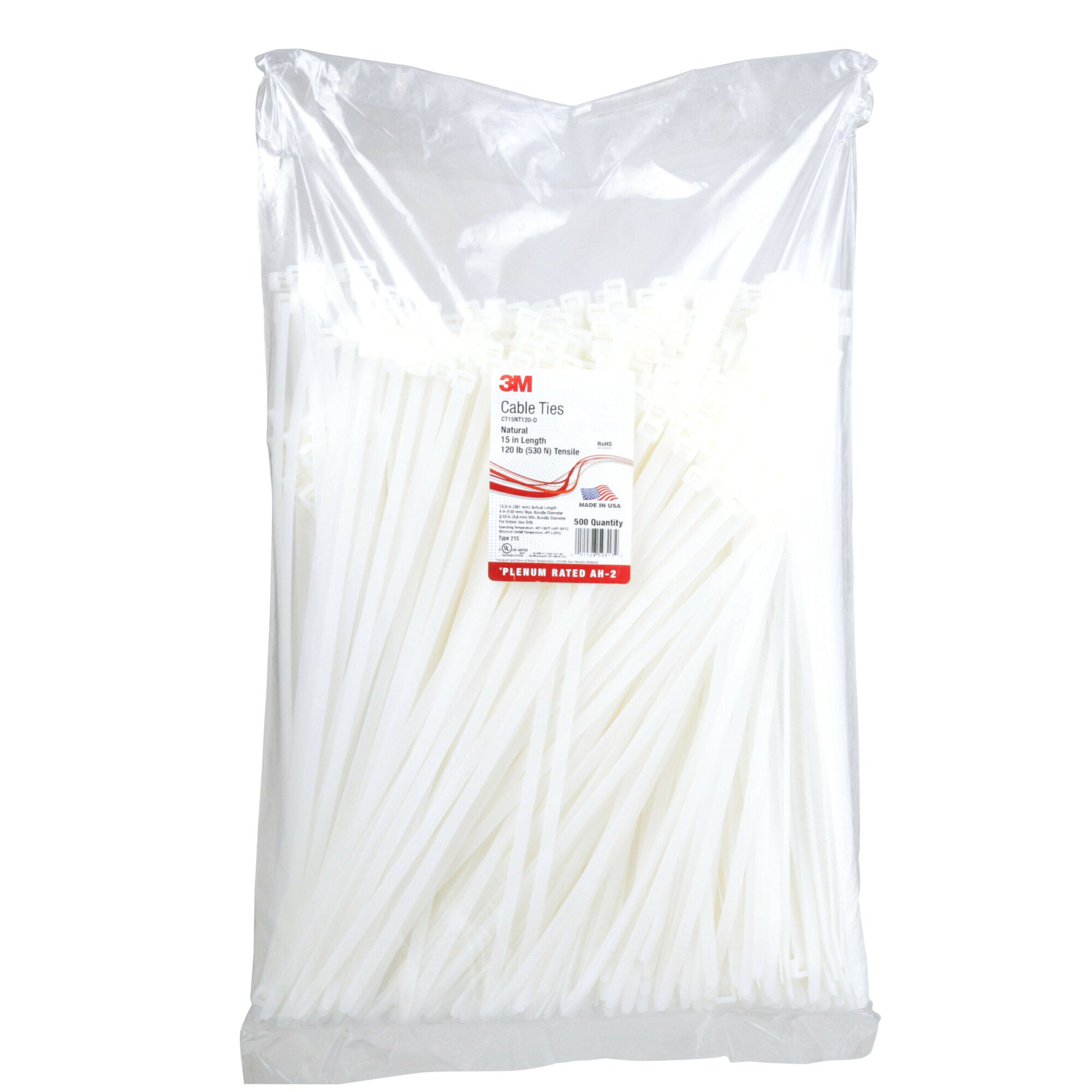

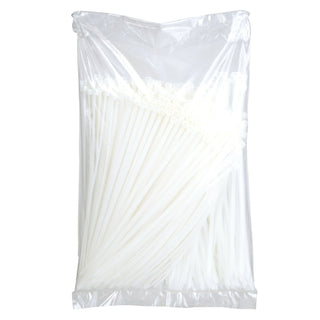

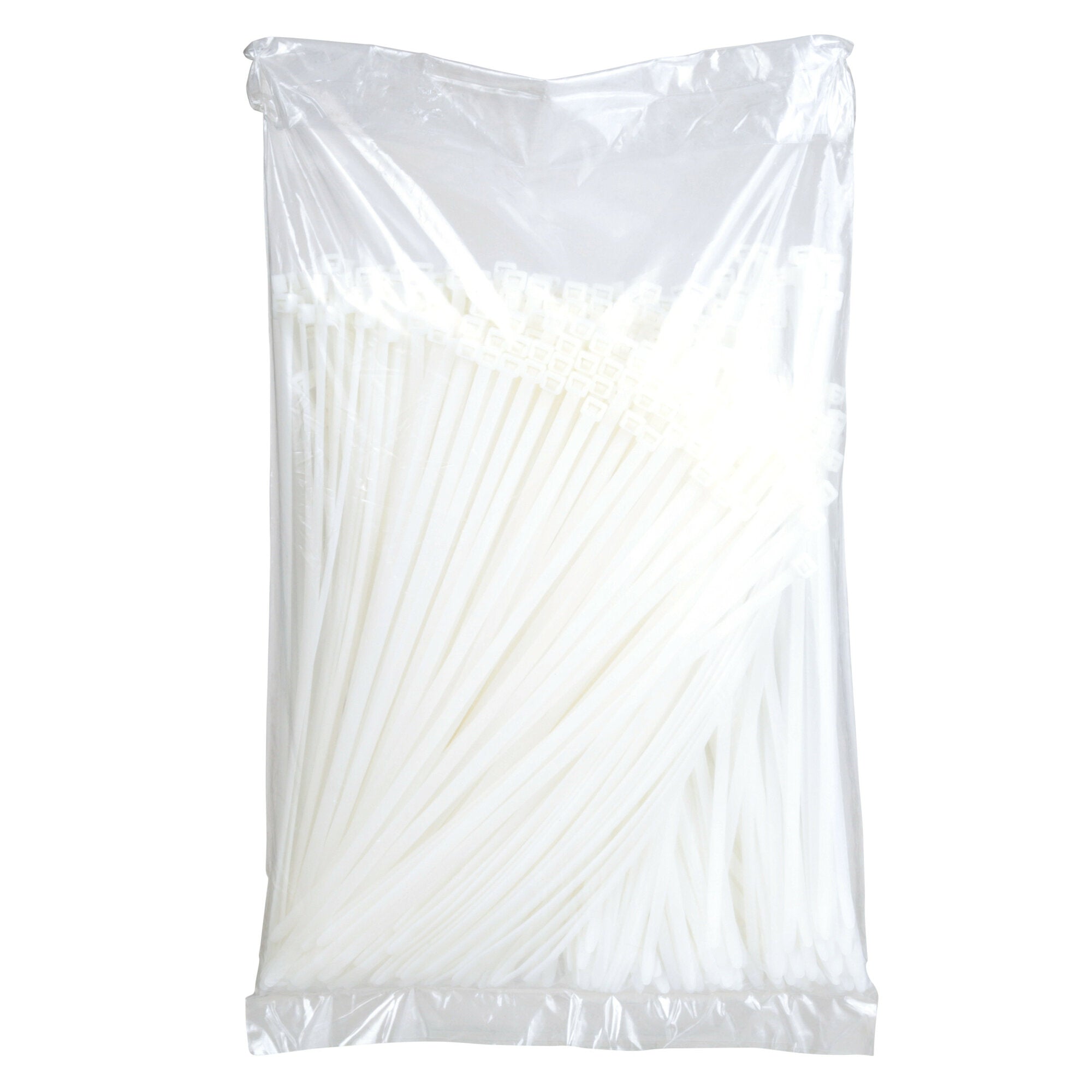

Package Quantity
500
Plenum Rated
Yes
Shrink Ratio
2:1
Solution For
Wireless Network: Infrastructure Accessories
UL File Number
E-39100
UV Resistant
No
Units Per Case
2500.0
Units Per Bag
500
Tensile Strength Imperial
120 lbs
Material and Composition
Material
Nylon 6/6
Certifications and Standards
Flammability Rating
UL 94 V-2
UL Approval
Yes
