Ideal 33-719 Telephone/Data Cable Splice and Repair Kit

by IDEAL
No reviews
Original price $32.49 - Original price $32.49
Original price
$32.49
$32.49 - $32.49
Current price $32.49
Free shipping
The Telephone/Data Cable Splice and Repair Kit includes the Kinetic™ Super IDC specialty tool and red connectors needed for common telephone splice/tap applications as well as for repairing damaged data or voice conductors. The all-in-one... Read more

Overview

IDEAL

Ideal 33-719 Telephone/Data Cable Splice and Repair Kit

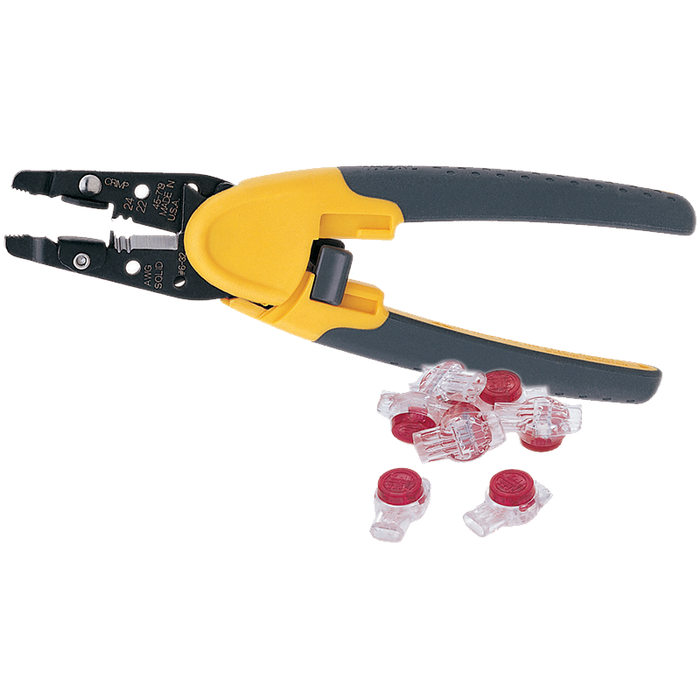

The Telephone/Data Cable Splice and Repair Kit includes the Kinetic™ Super IDC specialty tool and red connectors needed for common telephone splice/tap applications as well as for repairing damaged data or voice conductors. The all-in-one tool can cut, strip, and crimp all types of jellybean UR/UY/UB IDC contact butt and tap connectors. The kit includes 25 gel-filled UR Red, 3-wire butt splice connectors.

The tool is designed with a special parallel action, smooth flat plate crimping area that evenly crimps the jellybean in a consistent manner that leaves the connector body undamaged. Traditional linesman or other types of generic pivoting pliers do not offer a parallel action and will damage the plastic shell of the connector, or not seat the wires properly into the IDC sockets.

The tool will work with all industry standard IDC jellybean type connectors.

The tool also includes 22 and 24 AWG stripping holes and a wire cutter for other common telephone installation requirements.

When using the IDC connectors – do NOT strip the individual conductors before inserting them into the connectors. The connectors, once crimped, will pierce the insulating jacket of the conductors providing common conductivity among the conductors.



Kinetic™ Super IDC all-in-one tool to cut, strip, and crimp 22-24 AWG telecommunications cables for use in IDC splices

Tool prepares conductors and crimps industry standard UR Red, UY Yellow, and UB Blue IDC connectors / jellybeans

Parallel surface action crimps the connectors evenly and prevents over crimping that leads to damaged connectors

Slim, lightweight tool with locking latch to keep tool closed in pouches and pockets

Includes 25 IDC connectors (UR Red, 3-Wire Butt Splice)

Stamped steel with over-molded dual textured handles for user comfort

Cuts twisted pair cables and strips 22 to 24 AWG conductors for telco applications

Plier type nose aids in identifying, isolating, and grabbing conductors

Tool is not insulated. Use on de-energized circuits only.

Tool not available individually


Product Details

General Information
Manufacturer
IDEAL
Part Number
33-719
Product Type
Cable Splice / Repair Kit
California Residents
Specifications
Color
Blue
Material
Steel
Miscellaneous
What's Included
Cable Splice / Repair Kit, see description for full Tool List
Features
Special parallel action, Smooth flat plate crimping area -- leaving the connector body undamaged
