Ideal 85-075 3GHz 75Ω BNC Female-to-Female Splice Adapter - 2 Piece

by IDEAL
No reviews
Original price $12.67 - Original price $12.67
Original price
$12.67
$12.67 - $12.67
Current price $12.67
Free shipping
Use the 3GHz BNC Splice Adapter to extend coaxial cable runs for CCTV and other video applications using BNC connectors. The adapter joins two shorter length cables into a longer cable without having to install... Read more

Overview

IDEAL

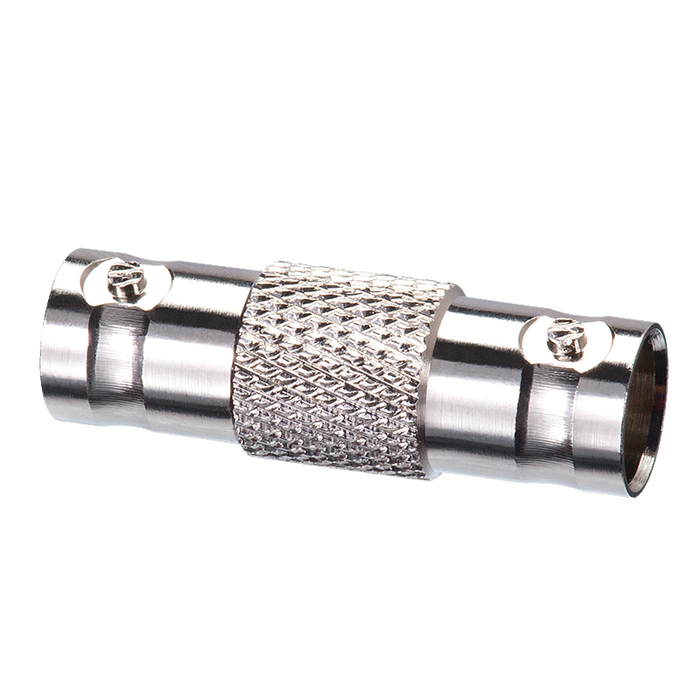

Ideal 85-075 3GHz 75Ω BNC Female-to-Female Splice Adapter - 2 Piece

Use the 3GHz BNC Splice Adapter to extend coaxial cable runs for CCTV and other video applications using BNC connectors. The adapter joins two shorter length cables into a longer cable without having to install a new cable. The BNC adapter is a high performance product rated for operation up to 3GHz. The nickel plated, brass body has a gold plated round contact pin for low signal loss. Designed for 75Ω coaxial cables. Both ends of the BNC adapter are female ports. Male BNC plugs mate with each end of the adapter.

Simply attach male BNC connectors to both ends of the splice to join the cables together.

 Connector Model: 75BNCFF



For extending or combining shorter BNC cables into longer cables

Nickel plated brass body, gold plated round center pin contact

For 75Ω applications up to 3GHz

Accepts male BNC connectors on both sides

Reusable, non-permanent connection - no tools required


Product Details

General Information
Manufacturer
IDEAL
Part Number
85-075
Product Type
Splice Adapter
California Residents
Specifications
Color
Metallic
Material
Nickel Plated Brass
Miscellaneous
What's Included
3GHz 75Ω BNC Female-to-Female Splice Adapter - 2 Piece
Features
Extends coaxial cable runs for CCTV and other video applications using BNC connectors, Gold plated round contact pin for low signal loss
