Athena Power RM-2U200H3A 2U rackmount server chassis

$190.00
Free shipping
Athena Power introduces a new 2U rackmount server chassis, RM-2U200H3A, designed for space saving (14” long) and features: 3 x full height expansion slots, washable air filter, compatibility with motherboard up to ATX (12”x10”), 2... Read more

Overview

Brand img

Athena Power RM-2U200H3A 2U rackmount server chassis

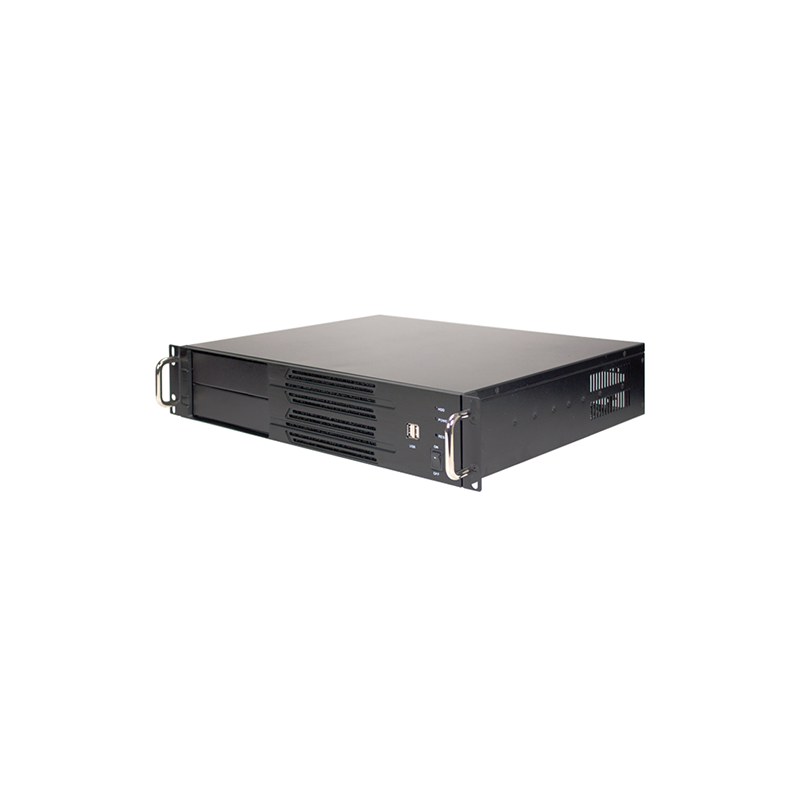

Athena Power introduces a new 2U rackmount server chassis, RM-2U200H3A, designed for space saving (14” long) and features: 3 x full height expansion slots, washable air filter, compatibility with motherboard up to ATX (12”x10”), 2 x 80mm cooling fans and black silky aluminum front bezel.  With its stunning looks and compact size, system designers will be amazed by the flexibility and capabilities of this 2U rackmount chassis.

Motherboard Compatibility

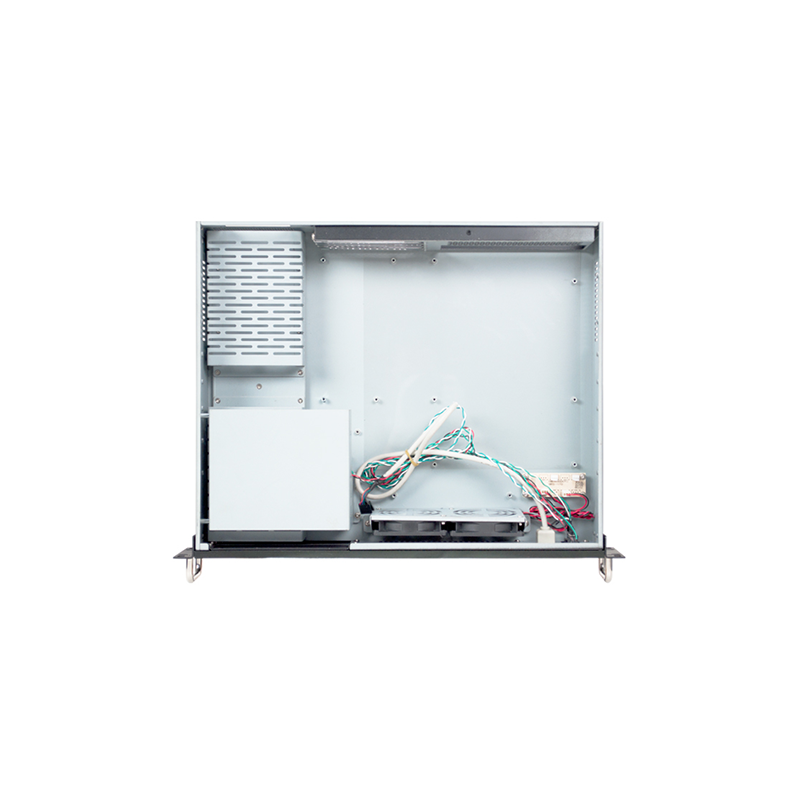

AP-2U200H3A is designed to have extra space to make it easier for this 2U rackmount chassis to install different motherboard form factors.  With its flexibility, this rackmount chassis is compatible with ATX (12” x 10”), Micro ATX (9.6” x 9.6”) and Mini-ITX (6.7”x 6.7”) motherboards.

Drive Bay & Front Control Panel Expendability

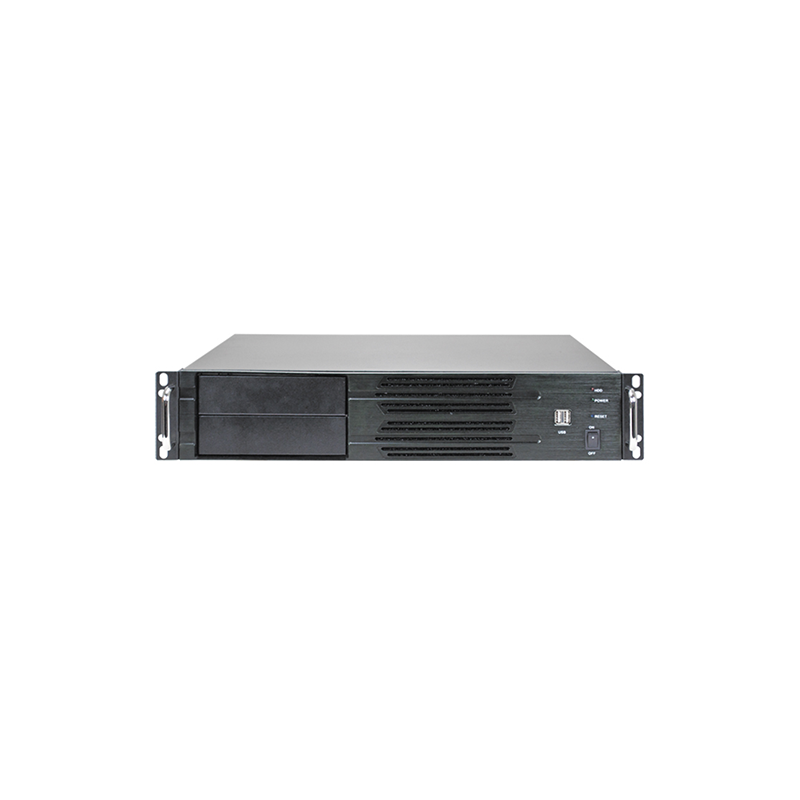

The RM-2U200H3A features 2 x 3.5” internal drive bays with anti-vibration HDD brackets and 1 x 5.25” external drive bay. The front control panel features 2 x USB 2.0 ports, Power On/Off switch, System Reset switch, HDD Access and Power On LED indicators.

Power Supply Form Factor Compatibility

RM-2U200H3A is designed to be compatible with Flex ATX form factor power supply.

3 x Full Height Expansion Slots

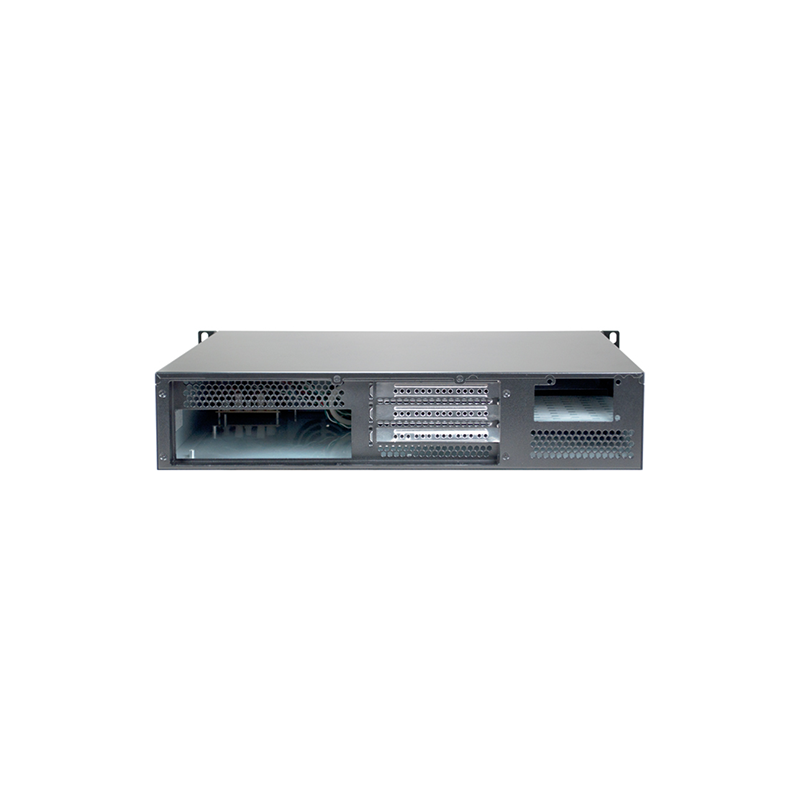

AP-2U200H3A features 3 full height expansion slots for installing PCI-E add-in cards, so system builders can use a riser card and install additional add-in cards for their server needs.

2 x 80mm Ball Bearing Cooling Fans

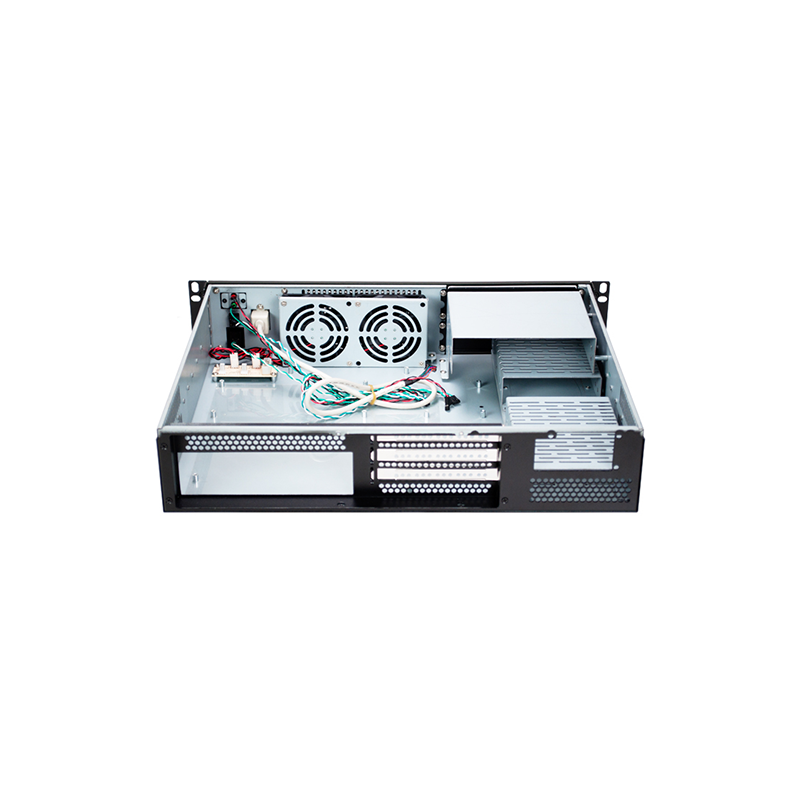

RM-2U200H3A incorporates 2 x 80mm ball bearing fans at the front of chassis. This type of 80mm ball bearing fans intake exterior cool air for providing efficient ventilation and cooling the system inner temperature.

Washable Air Filter

RM-2U200H3A features a washable air filter. It’s strategically placed between the 2 x 80mm cooling fans and chassis front bezel for gathering up dust and dirt that may hinder in your system and reduce clean-up time.


Product Details

General Information
Manufacturer
Athena Power
Part Number
RM-2U200H3A
Product Type
Server Rackmount
Bays
Number of External 5.25 Bays
4
Number of Internal 3.5 Bays
6
Interfaces Ports
Total Number of USB Ports
2 (Front)
Physical Characteristics
Color
Black
Material
1.2mm Steel / Aluminum Front Bezel
Form Factor
2U
Weight (Approximate)
14 lbs
Technical Information
Motherboard Supported
MicroATX (9.6 in. x 9.6 in.)
ATX (12 in. x 9.6 in.)
Mini-ITX (6.7 in. x 6.7 in.)
Number of Fans Supported
2
Installed Fan Size
80mm
Number of Total Expansion Slots
3
Power Description
Power Supply Installed
Flex ATX Single Power Supply
