Athena Power RM-4UC438 4U Rackmount Server Chassis

$159.99
Free shipping
Athena Power RM-4UC438 4U Rackmount Server Chassis is a space-saving designed 4U rackmount chassis which has following main features: Space-saving Design: 16" Depth (Chassis dimension: D16" x W17-1/8" x H7"). Motherboard Form Factor Compatibility: This rack... Read more

Overview

Brand img

Athena Power RM-4UC438 4U Rackmount Server Chassis

Athena Power RM-4UC438 4U Rackmount Server Chassis is a space-saving designed 4U rackmount chassis which has following main features:

  • Space-saving Design: 16" Depth (Chassis dimension: D16" x W17-1/8" x H7").
  • Motherboard Form Factor Compatibility: This rack mount chassis can be installed a motherboard form factor which is from Mini-ITX (6.7" x 6.7") up to ATX (12" x 9.6"). Also this chassis features 7 full-height vertical expansion slots.
  • Flexible Variety Drive Bay Installation: This chassis features 5.25" external bay up to 4 (when system installs a MicroATX m/b) and 3.5" internal bay up to 4 (or 2.5" up to 8).
  • Power Supply Unit Form Factor Compatibility: This chassis can be installed a variety PS2 form factor power supply unit, also can choose an IPC grade Mini-Redundant PSU to insure longer lasting system operation.
  • Thermal Solutions: This chassis features two front 80mm ball bearing fans with plenty of Hexagon ventilation holes for providing a high performance thermal solution. In addition, there is a washable and removable filter which can prevent dust accumulation in the chassis. If a user wants to have better system thermal solution, there are two additional 80mm cooling fan mounting position at chassis rear.

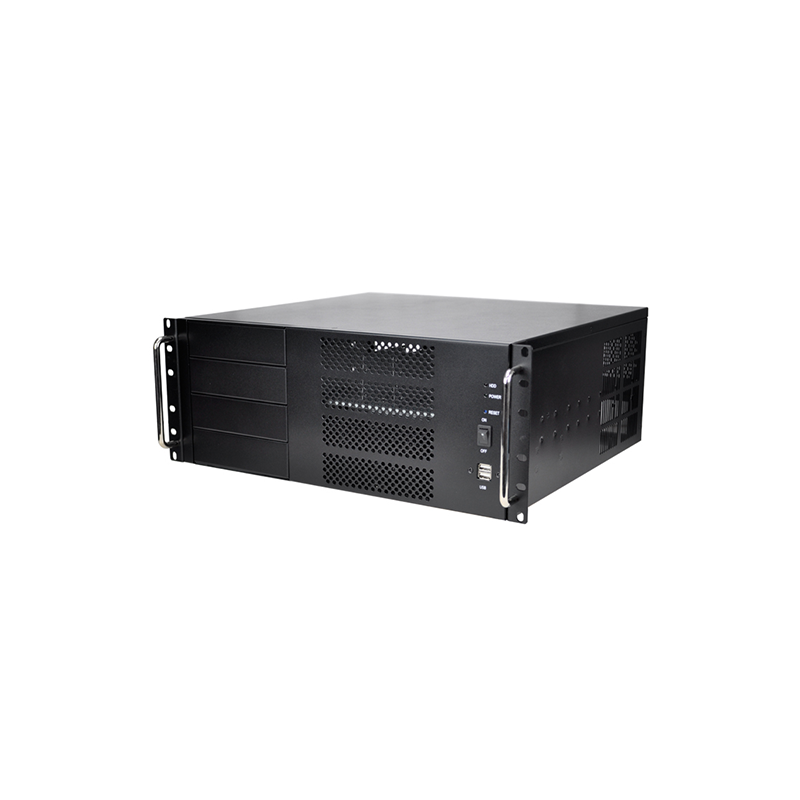

  • Front Panel Features: This chassis features a 2-Port USB2.0 at chassis front panel and Athena Power offers an optional part to upgrade the 2-Port USB2.0 to a 2-Port USB3.0. At the chassis front control panel, it features a HDD activity LED indicator, a POWER ON LED  indicator, a system RESET button switch and an ATX momentary Power On switch.

Product Details

General Information
Manufacturer
Athena Power
Part Number
RM-4UC438
Product Type
Server Rackmount
Bays
Number of External 5.25 Bays
4
Number of Internal 3.5 Bays
4
Number of Total Expansion Bays
8
Interfaces Ports
Total Number of USB Ports
1
Physical Characteristics
Color
Black
Material
T=1.0mm SECC
Form Factor
4U
Technical Information
Motherboard Supported
MicroATX (9.6 in. x 9.6 in.)
ATX (12 in. x 9.6 in.)
Mini-ITX (6.7 in. x 6.7 in.)
Number of Fans Supported
2
Installed Fan Size
80mm
Power Description
Power Supply Installed
PS2 Single, Mini-Redundant
