Ideal 89-750WH CAT5e 100MHz 8P8C Keystone Jack - White, 5/Pack

by IDEAL
No reviews
Original price $13.99 - Original price $13.99
Original price
$13.99
$13.99 - $13.99
Current price $13.99
Free shipping
Connector Model: MJN5xx 110 IDC style termination with internal PCB 100 MHz / 1Gb performance Keystone dimensions provide compatibility with other devices 9 colors to choose from IDEAL Keystone Jacks are high performance modular jack... Read more

Overview

IDEAL

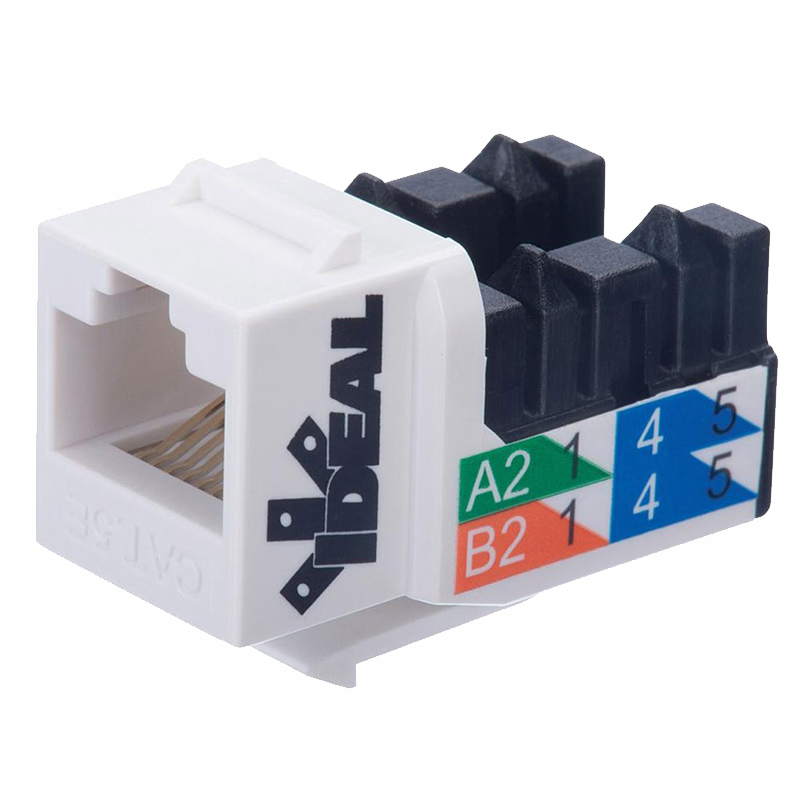

Ideal 89-750WH CAT5e 100MHz 8P8C Keystone Jack - White, 5/Pack

Connector Model: MJN5xx

110 IDC style termination with internal PCB

100 MHz / 1Gb performance

Keystone dimensions provide compatibility with other devices

9 colors to choose from

IDEAL Keystone Jacks are high performance modular jack connectors designed to exceed the CAT5e requirements of ANSI/TIA-568-C.2 giving installers the ability to use these products in residential and commercial installations for applications such as Gigabit Ethernet.

All jacks feature a robust internal printed circuit board design used to help reduce NEXT (near-end cross talk) and improve RF performance at higher frequencies. The IDC tower design and layout help to simplify and speed up the wiring and termination process. Tapered tower tops help to separate each pair into the individual IDC slot without the need to untwist each pair. This allows pairs to easily maintain the recommended maximum of 1/2“ of untwisting per pair from the cable jacket.

Twisted pairs stay together. With the PCB design, each color pair is terminated side by side, in a consistent pattern. Less time spent untwisting, separating and routing individual conductors to the IDC contacts.

Jacks have both 568A and 568B wiring diagrams and pinouts pre-labeled at each IDC location.

The IDEAL Keystone Jacks have an industry standard (14.5mm x 16mm) profile interface and latch location so they are compatible with many other keystone style sized panels, racks, and plates.

Standard midsized (2.75“ x 4.75“) faceplates in both white and ivory colors are available in 1, 2, 3, 4, 6 and 0 port configurations. Blank inserts can be used to fill in unused faceplate ports.

Jack Specifications



Cable Types: 8 Conductor UTP Copper Cables 22-24 AWG (CAT5e/CAT6)

Max. Cable O.D.: 260”

Termination Tool: 110 Punchdown

Housing Material: PC UL94-V0 Rated, Multiple Colors

Contact Finish: 50μ Gold over 50μ Nickel

IDC Housing Material: PC UL94-V0 Rated, Black

IDC Terminal Contact: Phosphor Bronze, 50μ Nickel

IDC Cover: PC UL94-V0, Black

Circuit Board: FR4

Certifications and Standards: UL Listed cULus; ANSI/TIA-568-C-2, ISO/IEC 11801 Class D(CAT5e)/E(CAT6) FCC Part 68 Compliant; RoHS Compliant

Supports: Dual T568A and T568B wiring

Connector Mating Cycles: 750 minimum



Electrical Specifications



Current Rating: 1.5 Amps

Insulation Resistance: 50m ohm

Contact Resistance: 20m ohm

DC Resistance: 0.1 ohm

Dielectric Withstanding Voltage: 1000V


Product Details

General Information
Manufacturer
IDEAL
Part Number
89-750WH
Product Type
Modular Jack Connector
California Residents
Specifications
Color
White
Material
Thermoplastic
Miscellaneous
What's Included
CAT5e 100MHz 8P8C Keystone Jack - White, 5/Pack
Features
Robust internal printed circuit board design used to help reduce NEXT (near-end cross talk) and improve RF performance at higher frequencies, Largely compatible with many other keystone style sized panels/racks/plates
