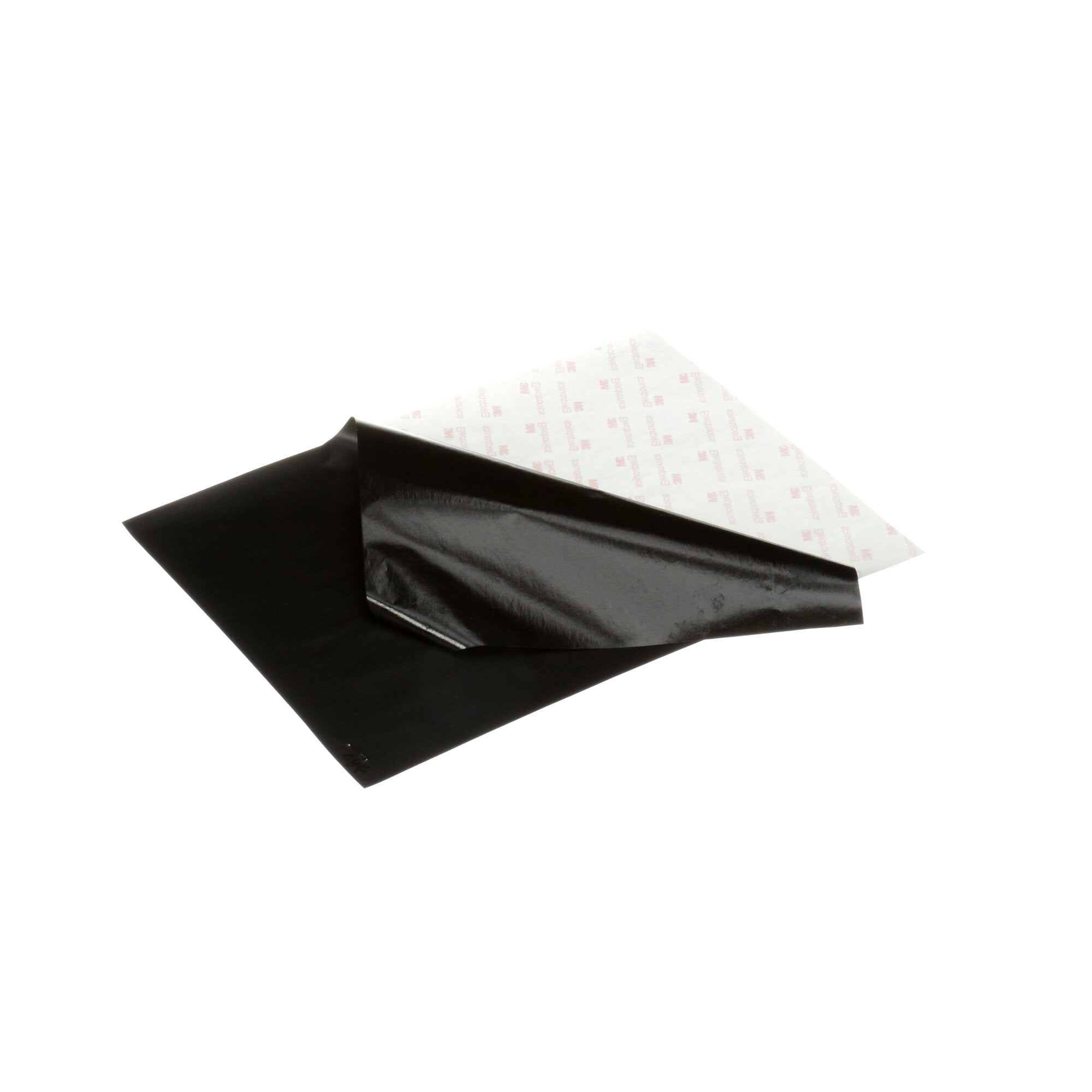

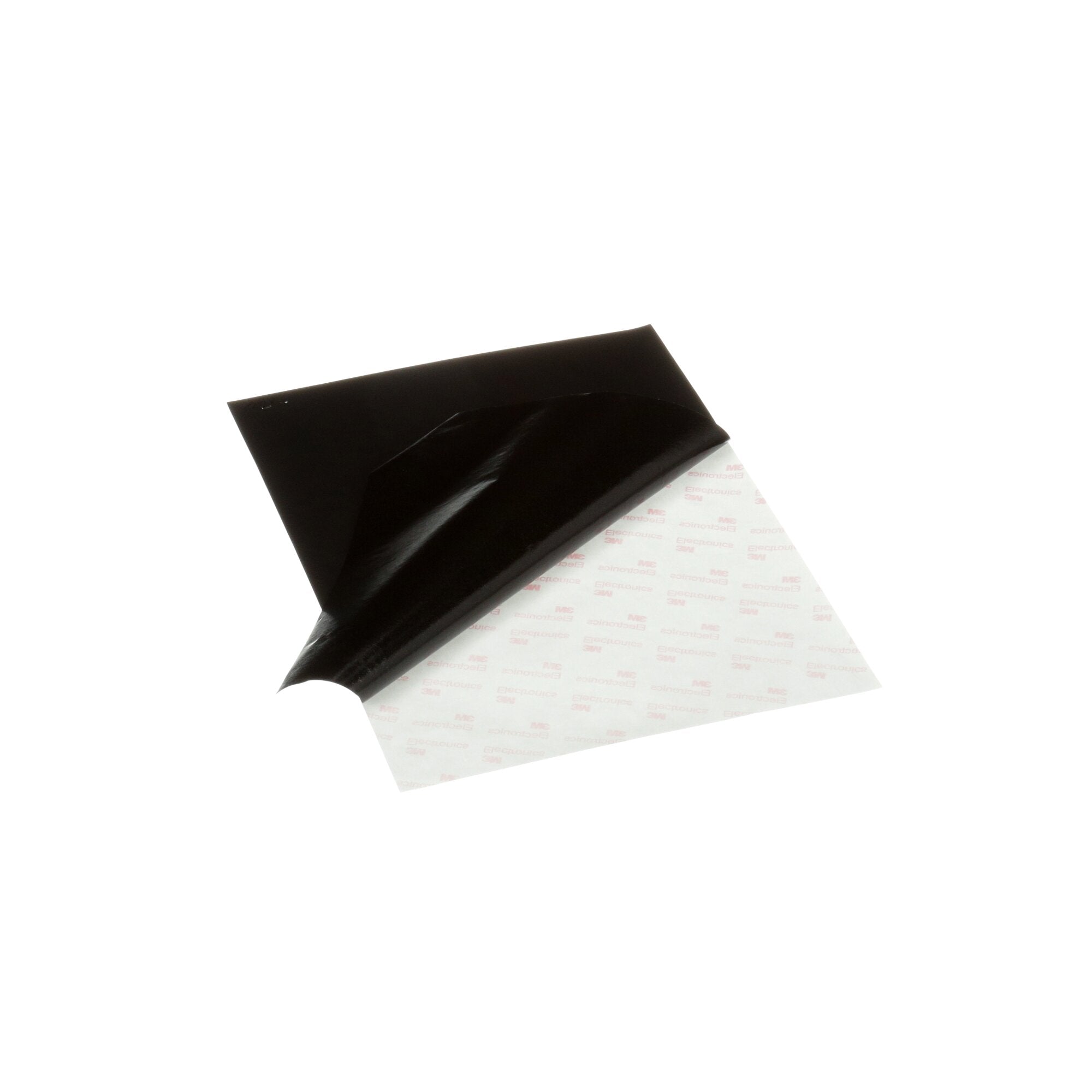

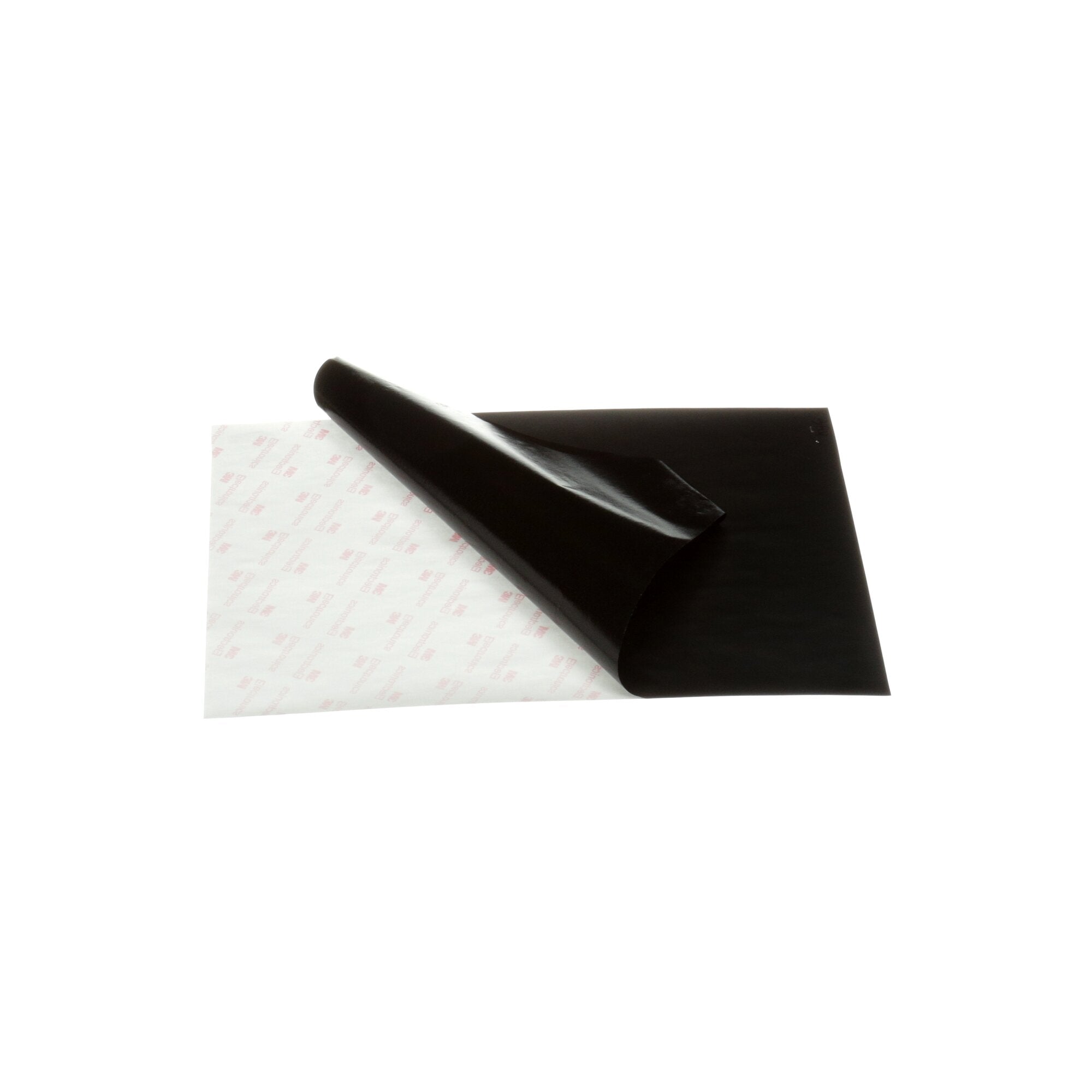

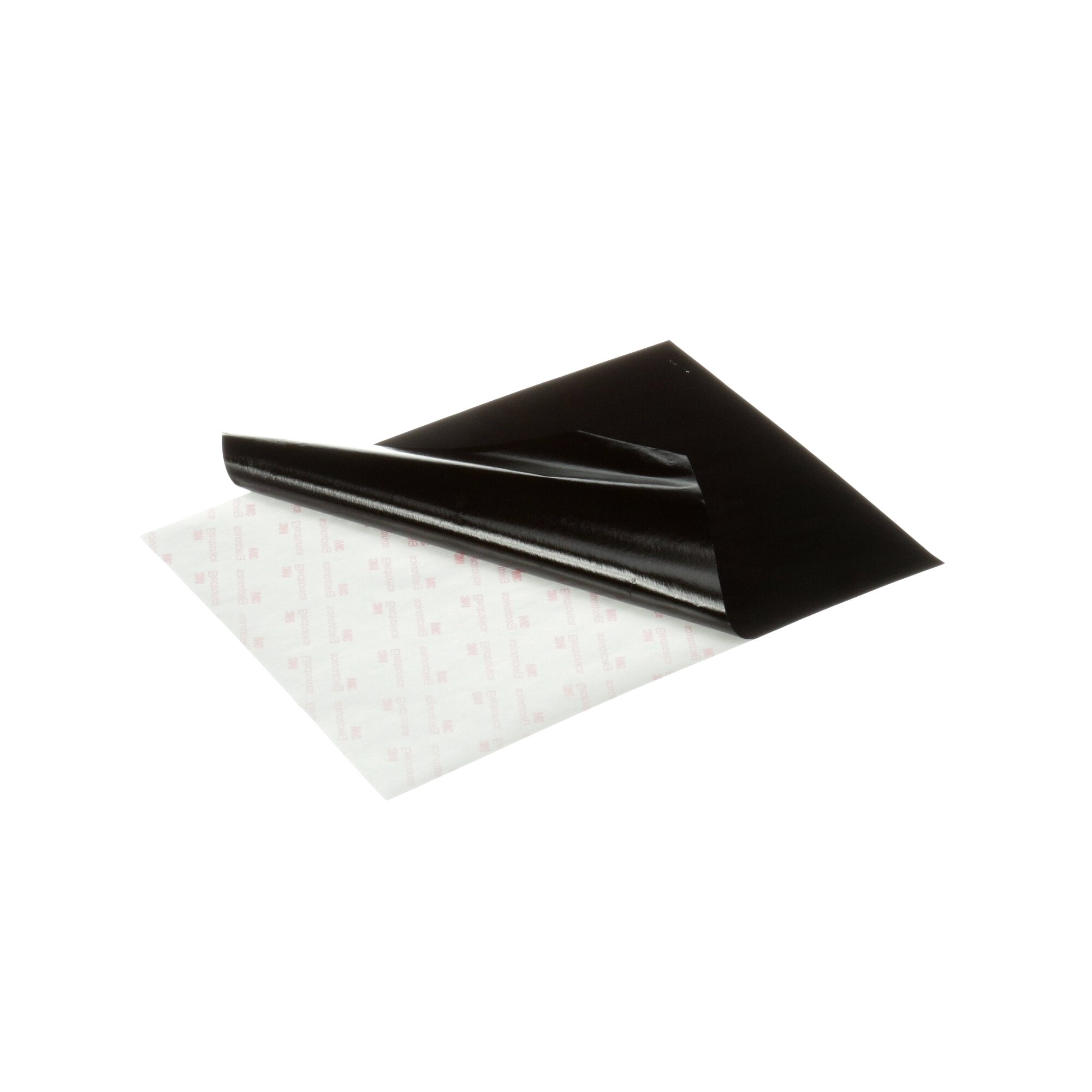

3M Electrically Conductive Single-Sided Tape CEF-3BV, 1240 mm x 50 m

Features

3M Electrically Conductive Single-Sided Tape CEF-3BV consists of a Cu/Ni coated conductive polyester fabric and an electrically conductive pressure-sensitive acrylic adhesive.It offers excellent grounding performance between substrates, and has high EMI shielding performance, typically greater than 60dB at specific frequencies.

• High adhesion
• Good Z-axis conductivity
• Excellent conformability and quick bonding
• Good handling and workability
• Cu/Ni plated fabric offering excellent EMI/EMC shielding performance
• Halogen Free (*Halogen Free is defined as having maximum 900 ppm bromine, maximum 900 ppm chlorine, and maximum 1500 ppm total bromine and chlorine, per IEC 61249-2-21.)
