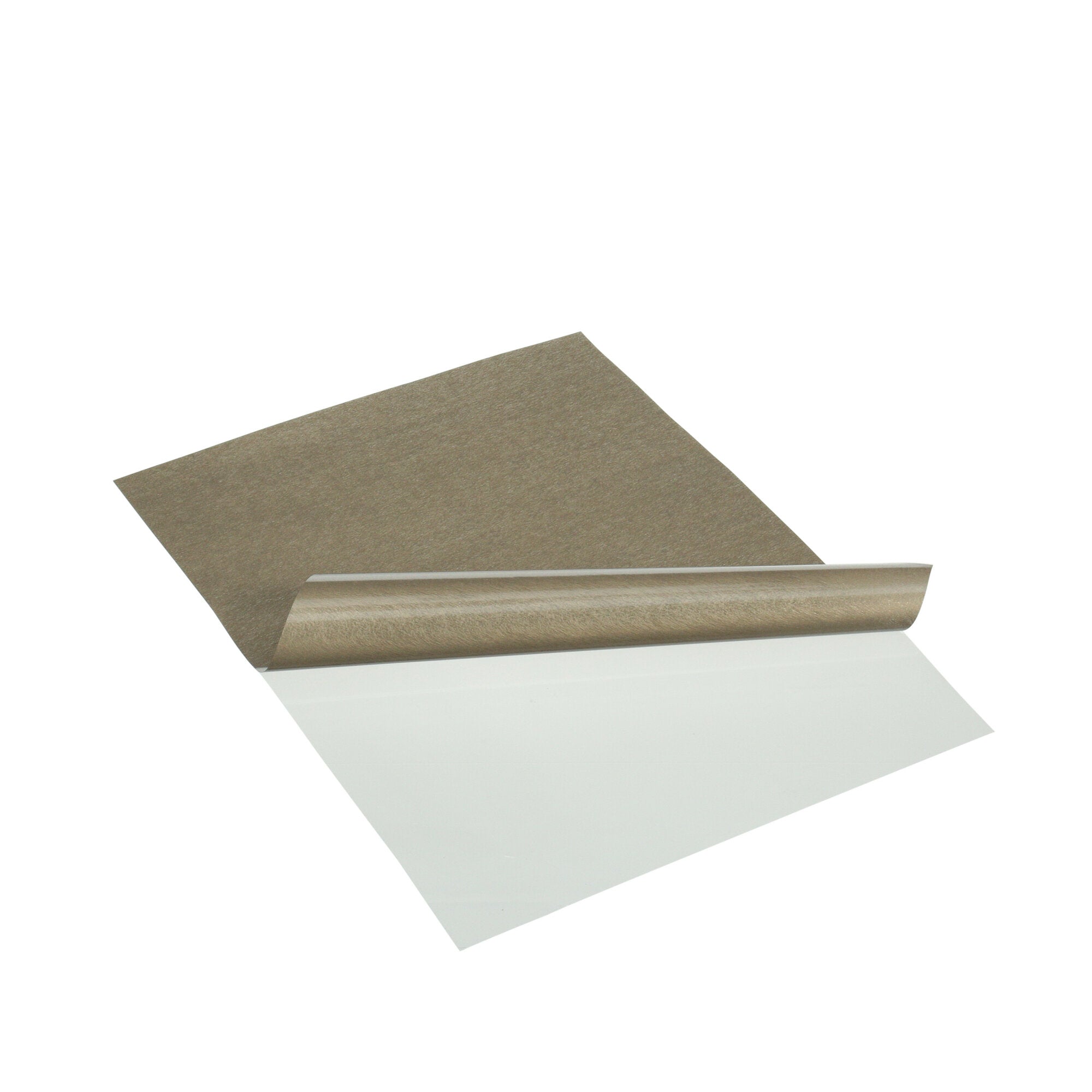

3M Electrically Conductive Thermosetting Film 2201P, 360 mm x 100 m

3M Electrically Conductive Thermosetting Film 2201P, 360 mm x 100 m

by 3M
$7,999.99 - $7,999.99
$7,999.99
$7,999.99 - $7,999.99
$7,999.99
Free shipping
Extended Handling May Be Required
3M Electrically Conductive Thermosetting Film (C-TSF) 2201P is a specialty conductive thermosetting film with excellent adhesion to many substrates, good grounding performance and modest thermal bonding process conditions. 3M C-TSF 2201P was also numbered EAS-2201P... Read more
This product is made to order.

Overview

3M

3M Electrically Conductive Thermosetting Film 2201P, 360 mm x 100 m

3M Electrically Conductive Thermosetting Film (C-TSF) 2201P is a specialty conductive thermosetting film with excellent adhesion to many substrates, good grounding performance and modest thermal bonding process conditions. 3M C-TSF 2201P was also numbered EAS-2201P (Electronic Assembly Solution = EAS) in its developmental phase.Standard Lead Time: 56 Calendar Days
  • Thermoset epoxy/acrylic hybrid
  • Metallized (Ni/Cu/Ni) Polymeric (PET) scrim
  • Good grounding performance
  • Excellent adhesion to many substrates
  • Modest thermal bonding process conditions

Product Details

General Information
Brand
3M™
Adhesive Type
Epoxy/Acrylic Hybrid Resin
Conductivity Type
Thermal
Country Of Origin
United States
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Dimensions and Specifications
Maximum Operating Temperature (Celsius)
95 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
203 Degree Fahrenheit
Minimum Operating Temperature (Celsius)
-40 Degree Celsius
Minimum Operating Temperature (Fahrenheit)
-40 Degree Fahrenheit
Overall Length (Imperial)
109.361 yd
Overall Length (Metric)
100 m
Overall Width (Imperial)
14.173 in
Overall Width (Metric)
360 mm
Total Tape Thickness Without Liner (Imperial)
2.5 mil
Total Tape Thickness Without Liner (Metric)
0.065 mm
Overall Length Imperial
109.361
Usage Information
Application
Interconnecting
Product Usage
Sensors
Material and Composition
Backing (Carrier) Material
Non-woven
Liner Material
PET
Shelf Life
12 Month
Color and Appearance
Product Color
Gray
Certifications and Standards
Factory ISO Certification
No ISO Certification information available
Resources
Datasheet
