Elenco AMFM-108CK AM/FM Radio Kit (Combines ICs & Transistors)

by Elenco
Original price $40.85 - Original price $40.85
Original price
$40.85
$40.85 - $40.85
Current price $40.85
Free shipping
Learn about AM and FM radio technology and the the functional components used in creating AM-FM receivers and amplifiers. 56 page training course is divided into 9 lessons; Audio Amplifier, AM Detector, AM IF, AM... Read more

Overview

Elenco

Elenco AMFM-108CK AM/FM Radio Kit (Combines ICs & Transistors)

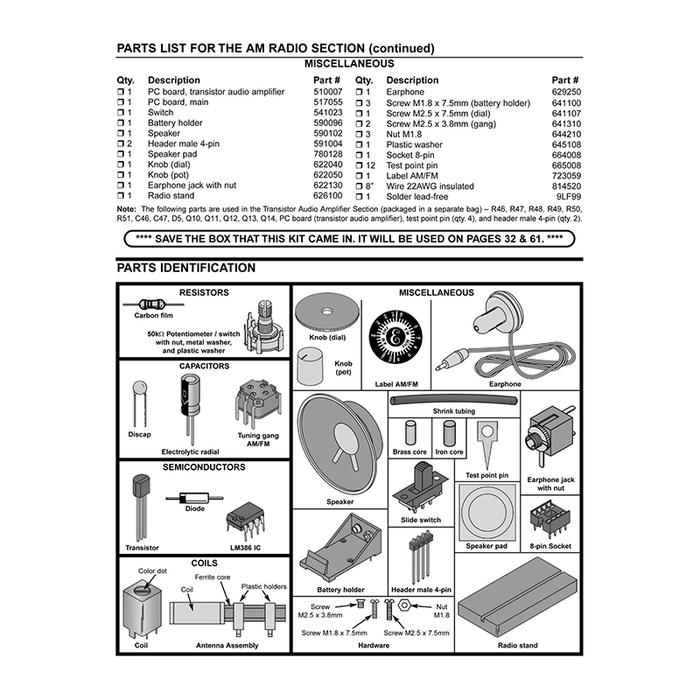

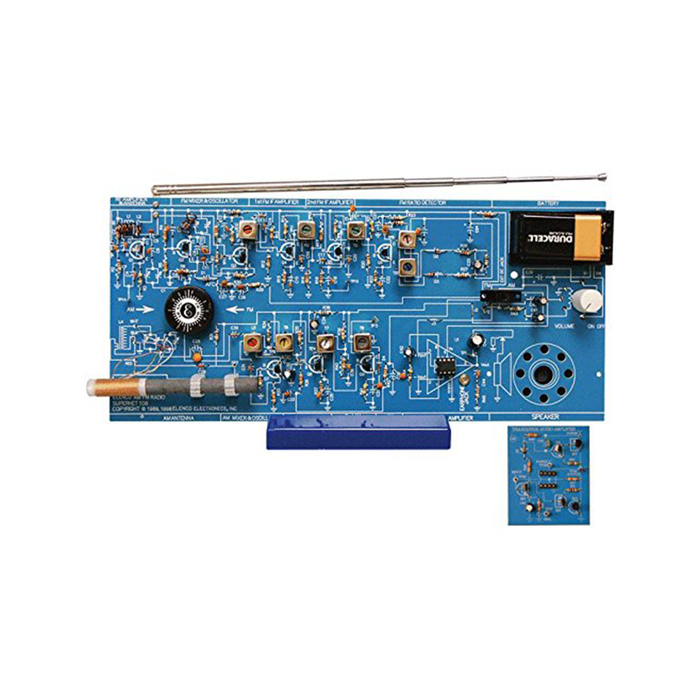

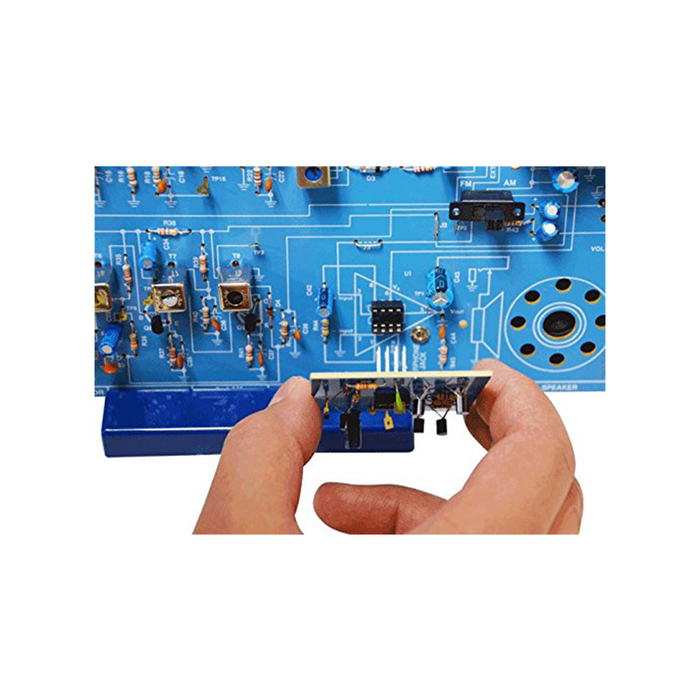

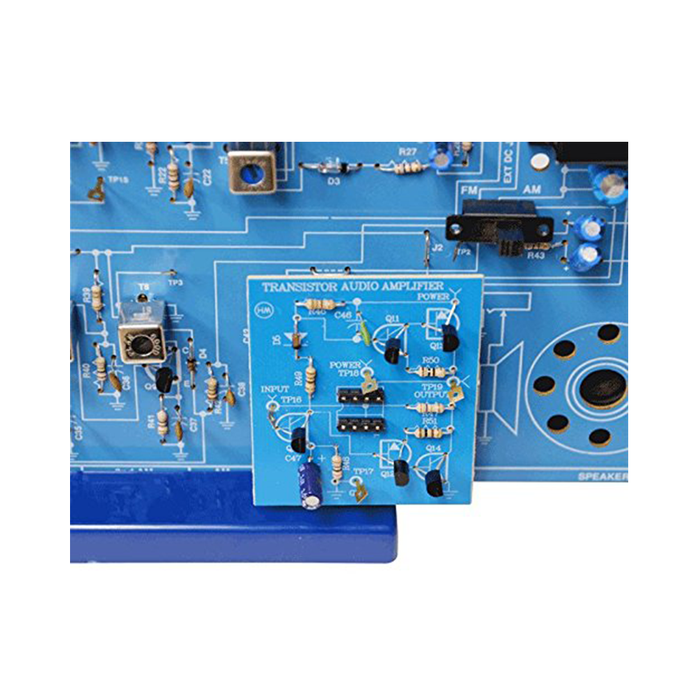

Learn about AM and FM radio technology and the the functional components used in creating AM-FM receivers and amplifiers. 56 page training course is divided into 9 lessons; Audio Amplifier, AM Detector, AM IF, AM Amplifier, AM Mixer & Oscillator, FM Detector, 1st FM IF, 2nd FM IF, FM RF Stages. “Superheterodyne” designed to receive standard AM and FM broadcast frequencies. New transistor module allows you to switch between the modern integrated circuit (IC) technology and the original transistor technology. Includes radio mounting stand. PLEASE NOTE: The AM/FM Radio project is divided into two parts, the AM Radio Section and the FM Radio Section. Initially, only identify the parts that you will need for the AM radio as listed in the manual. DO NOT OPEN the bags listed for the FM radio. A separate parts list will be shown for the FM radio after you have completed the AM radio. 9 volt battery needed but not included.

Product Details

General Information
Manufacturer
Elenco
Part Number
AMFM-108CK
Product Type
DIY Kit
California Residents
Miscellaneous
Skill Level
Rookie
Required Skills
Soldering
Batteries
1 - 9V Battery Required, Not Included.
Features
56 page Training Course is divided into 9 lessons
Audio Amp, AM Detector, AM IF, AM Amp, AM Mixer & Oscillator, FM Detector, 2 x FM IF, FM RF Stages
Electronics training course appropriate for High School and University level curriculum
“Superheterodyne” designed to receive standard AM and FM broadcast frequencies
Electronic kit, assembly required
Item Weight
6 Ounces

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Damiel
Fun Overall

Fun kit, but not as good as it could be. missed some opportunities for teaching, but I had fun doing it.

U
Uri
It rocks, literally

While there is little worth listening to on the radio, this AM/FM kit is the best one that I've built. Great for teaching how and why the electronics works. Handsdown great for learning.

S
Scott
Fun

Easy instructions, fun to build even for adults. Excellent design.

M
MattoCibo
Easy enough for a caveman, but not too easy

Instructions are clear with good pictures. Excellent build, fun to see why and how radios work. You can adjust the sensitivity as well

T
Timo
Five Stars

My daughter got this and after a couple nights working on it finished. It worked!
