MG Chemical 832TC-40L Thermally Conductive Black Epoxy Encapsulating and Potting Compound, 40 L

No reviews
Original price $2,250.99 - Original price $2,250.99
Original price
$2,250.99
$2,250.99 - $2,250.99
Current price $2,250.99
Free shipping
Made to Order, 1 Kit (2 Pails per Kit) per OrderThis is designed to be a high quality solution. It is formulated with undiluted Bis F resin, so it has superior physical properties to conventional... Read more

Overview

MG Chemicals

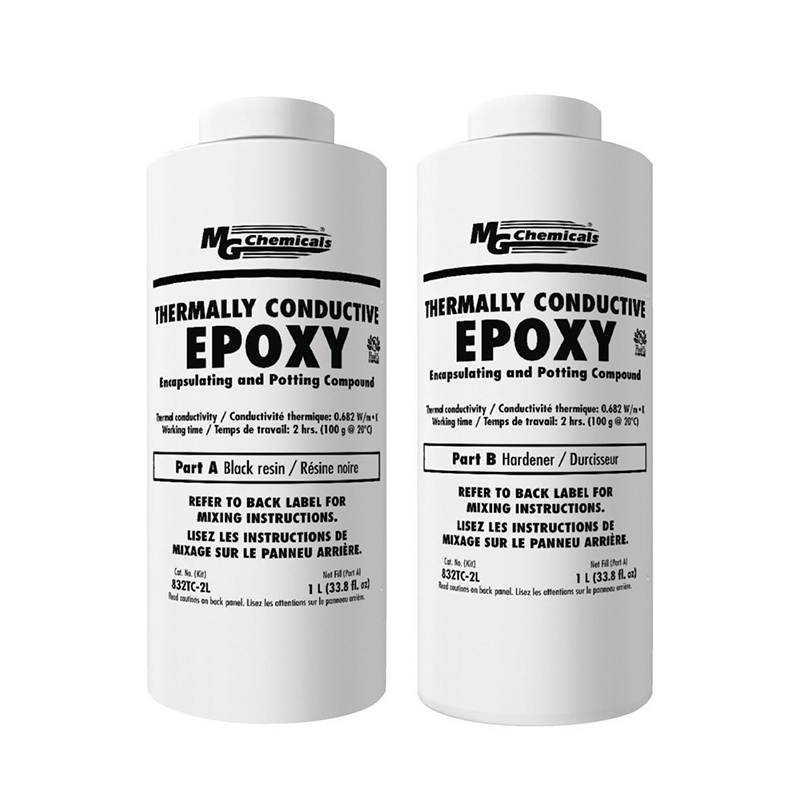

MG Chemical 832TC-40L Thermally Conductive Black Epoxy Encapsulating and Potting Compound, 40 L

Made to Order, 1 Kit (2 Pails per Kit) per Order

This is designed to be a high quality solution. It is formulated with undiluted Bis F resin, so it has superior physical properties to conventional diluted Bis A systems. Cured with a polyamide, it is not as brittle as the more common amine cured thermally conductive systems, and can be machined to shape.

832TC is a 2-part, black, thermally conductive epoxy that offers extreme environmental, mechanical and physical protection for printed circuit boards and electronic assemblies.

This product is designed for applications where thermal management is a concern. Its high thermal conductivity helps protect circuits by reducing the risk of heat buildup. It also provides excellent electrical insulation and protects components from static discharge, vibration, abrasion, thermal shock, environmental humidity, salt water, fungus, and many harsh chemicals.

This thermal potting epoxy has a convenient 1:1 volume mix ratio, making it compatible with most dispensing equipment. 832TC can be cured at room temperature or higher.


Product Details

General Information
Manufacturer
MG Chemical
Part Number
832TC-40L
Product Type
Black Epoxy
Return Policy
Non-Cancellable / Non-Refundable
California Residents
Specifications
Color
Black
Material
Epoxy
Size
40 L
Weight
66.80 kg
147.27 lb
Miscellaneous
What's Included
(x1) Kit (x2 Pails)
Features
Resistivity: 8.2 x 10 12 Ω·cm

Breakdown Voltage: 48 300 V

Dielectric Strength: 386 V/mil

Hardness: 81 D

Tensile Strength: 23 N/mm2

Compressive Strength: 87 N/mm2

Lap Shear:
(stainless steel): 13 N/mm2
(aluminum): 16 N/mm2

Glass Transition Temperature (T): 50 ˚C

CTE Prior Tg: 142 ppm/˚C

CTE After Tg: 114 ppm/˚C

Thermal Conductivity @ 25 ˚C: 0.7 W/(m·K)

Service Temperature Range: -30 –175 ˚C

Intermittent Temperature: 200 ˚C
Country of Origin
Canada
