Overview

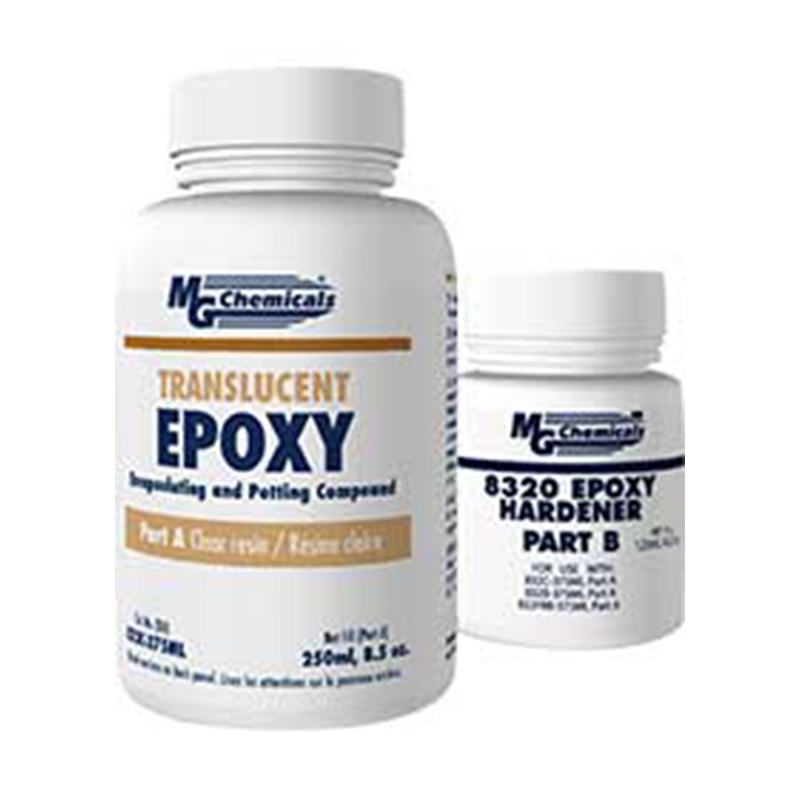

MG Chemical 832C-60L Translucent Epoxy, Encapsulating & Potting Compound, 60 L
- Epoxies
- MG Chemicals
- 832C-60L
Features
Made to Order, 1 Kit (3 Pails) per Order
The 832C epoxy is used to pot or encapsulate printed circuit assemblies in protective blocks. The cured epoxy improves reliability, operational range, and lengthens the life of electrical and electronic parts. Its primary applications are in the automobile, marine, aerospace, aviation, communication, instrumentation, and industrial control equipment.
832C is a rigid, amber clear epoxy that offers extreme environmental, mechanical and physical protection for printed circuit boards and electronic assemblies.
This translucent clear potting epoxy is specifically designed for applications where visual inspection is required. Due to its low mixed viscosity, it can easily penetrate small gaps and cavities. It also provides excellent electrical insulation and protects components from static discharges, vibration, abrasion, thermal shock, environmental humidity, salt water, fungus, and many harsh chemicals.
This translucent epoxy has a convenient 2:1 volume mix ratio, making it compatible with most dispensing equipment. 832C can be cured at room temperature or higher.
Product Details
Breakdown Voltage: 60 400 V
Dielectric Strength: 480 V/mil
Dissipation Factor @ 1 MHz: 0.02
Dielectric Constant @ 1 MHz: 2.8
Hardness: 84 D
Tensile Strength: 45 N/mm2
Compressive Strength: 164 N/mm2
Lap Shear:
(stainless steel): 17 N/mm2
(aluminum): 18 N/mm2
Glass Transition Temperature (T): 53 ˚C
CTE Prior Tg: 150 ppm/˚C
CTE After Tg: 161 ppm/˚C
Thermal Conductivity @ 25 ˚C: 0.3 W/(m·K)
Service Temperature Range: -40 –140 ˚C
Intermittent Temperature: 175 ˚C
