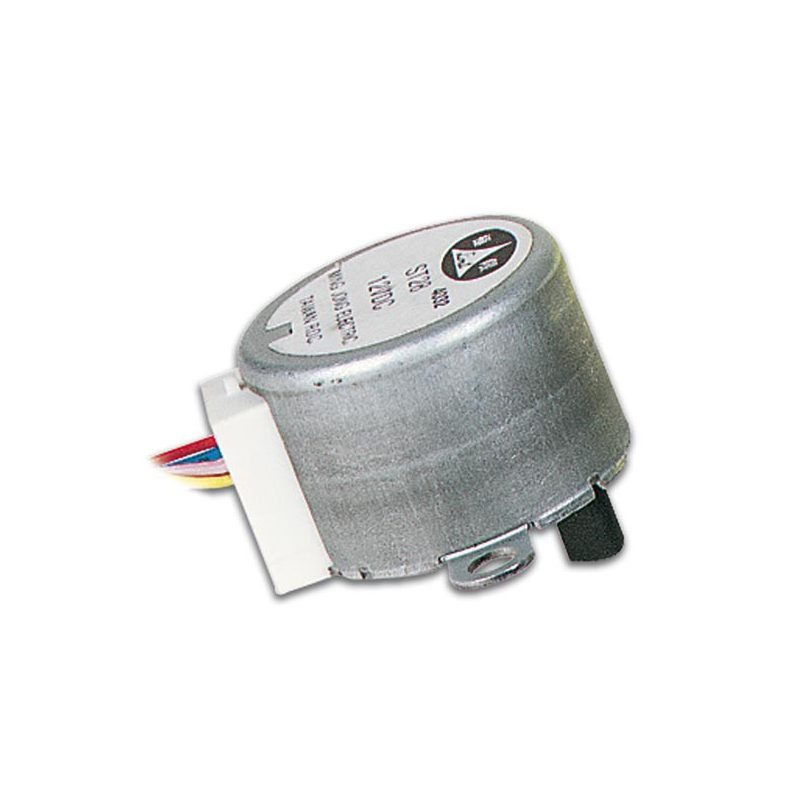

Velleman MOTS1 12VDC STEPPER MOTOR 32mA

Features

Features

• applications:

-office machines

-automated machines

-split air conditioners

Specifications

• resistance: 280 ohm
• rated voltage: 12 Vdc
• current: 32 mA
• impedance: 380 ohm
• phase: 4
• step angle / step: 5.625° / 64
• reduction ratio: 1/64
• detent torque: 350 gf.cm
• pull-in torque: 300 gf.cm
• max. starting pulse rate: 550 pps
• max. slewing pulse rate: 90 pps
• temperature range: 25 °C
• noise: 40 dB
• cable: 420 mm AWG 1095#28
• terminal: JST SPH-002T-P0.5S
• insulation strength: AC 600 V - 1 sec. cut-off current: 10 mA
• colours:

-1: B1: pink

-2: A1: orange

-3: A2: yellow

-4: B2: blue

-5: GND: red

-6: GND2 (for MOTS2): brown
