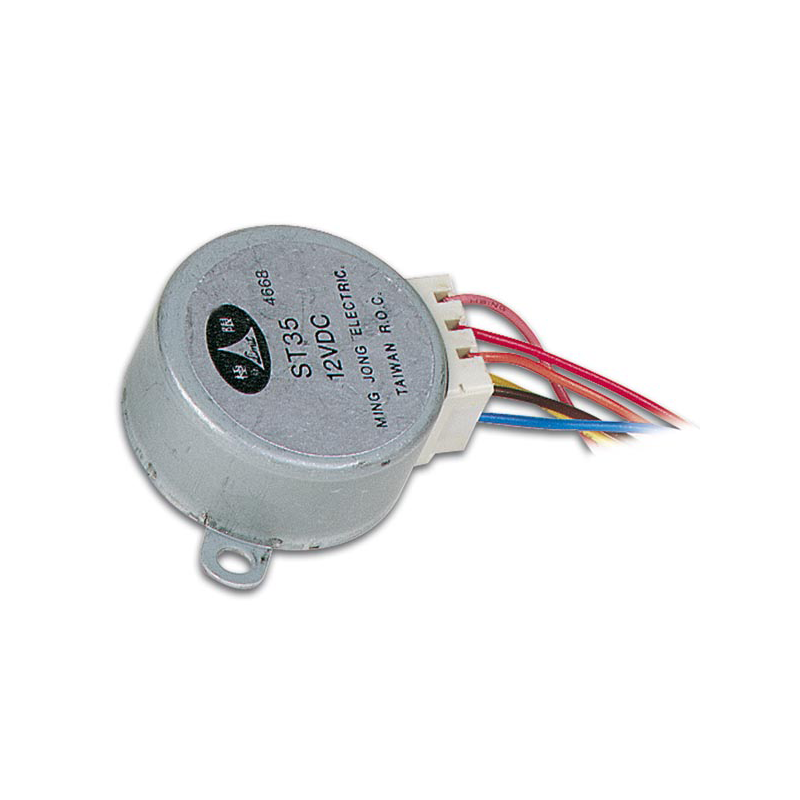

Velleman MOTS2 12VDC Stepper Motor 60mA

Velleman MOTS2 12VDC Stepper Motor 60mA

by Velleman
No reviews
$24.71 - $24.71
$24.71
$24.71 - $24.71
$24.71
Free shipping
Features applications: office machines automated machines split air conditioners Specifications resistance: 170 ohm rated voltage: 12 Vdc current: 60 mA impedance: 200 ohm phase: 4 step angle / step: 7.5° / 48 reduction ratio: 1/85... Read more

Overview

Velleman

Velleman MOTS2 12VDC Stepper Motor 60mA

Features

  • applications:
    • office machines
    • automated machines
    • split air conditioners

Specifications

  • resistance: 170 ohm
  • rated voltage: 12 Vdc
  • current: 60 mA
  • impedance: 200 ohm
  • phase: 4
  • step angle / step: 7.5° / 48
  • reduction ratio: 1/85
  • detent torque: 6.94 ozf.in
  • pull-in torque: 9.03 ozf.in
  • max. starting pulse rate: 350 pps
  • max. slewing pulse rate: 800 pps
  • temperature range: 113 °F
  • noise: 40 dB
  • cable: 450 mm AWG 1007#26
  • terminal: JST SXH-001T-P0.6
  • insulation strength: AC 600 V - 1 sec. cut-off current: 10 mA

Product Details

General Information
Manufacturer
Velleman
Part Number
MOTS2
Product Type
Motor
