About this item

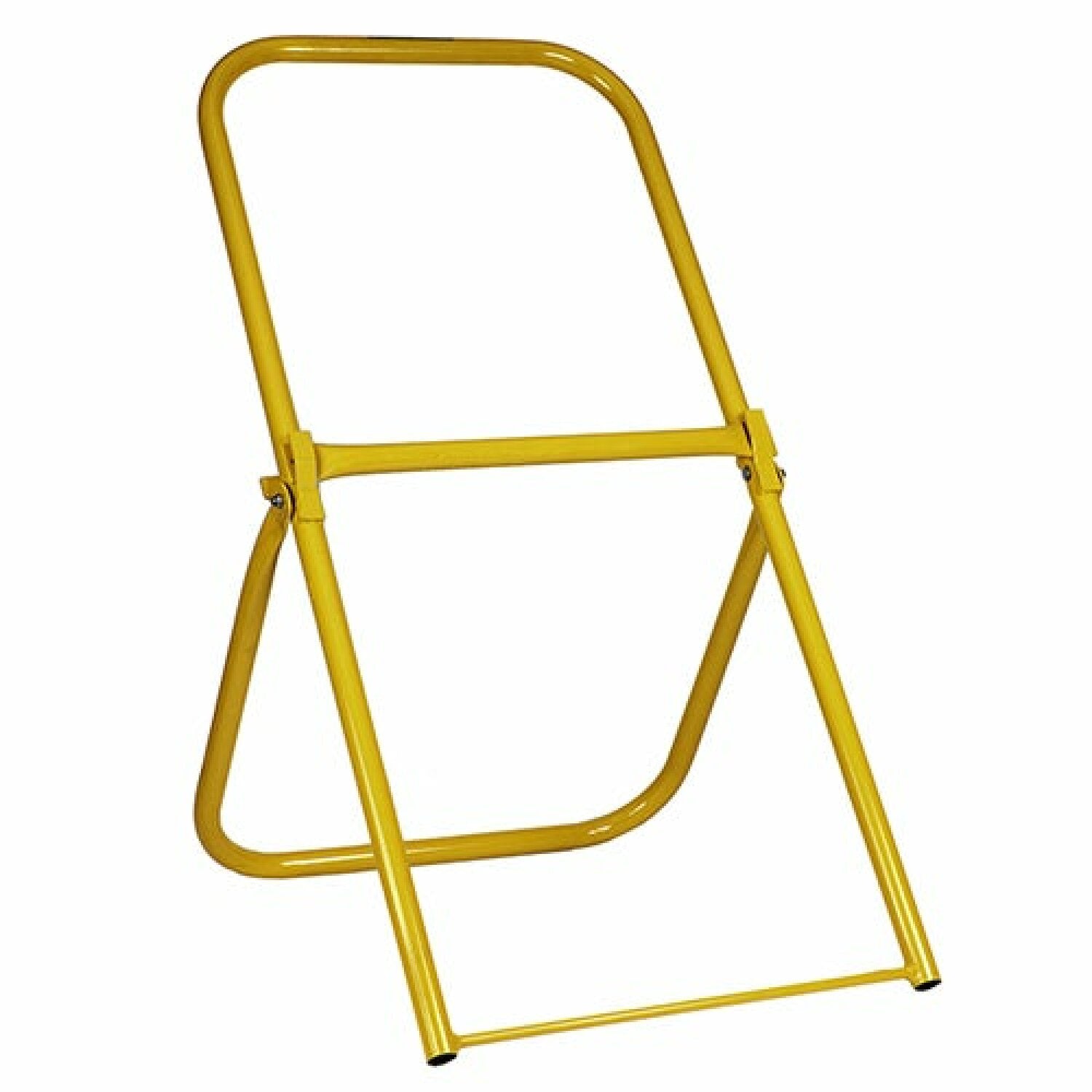

GMP 70407 XL Cable Reel Stand
Downloads
No files available.
Key points
- The reel caddy supports reels up to 30 in. (762mm) in diameter X 16 in. (406mm) width and easily accommodates multi-port deployment on cardboard or plastic reels. The caddy is quick and simple to set up with one hand. Will support reels up to 200 lbs. (90kg) with a minimum 1 1/2 in. (38mm) spindle diameter.
- Flange keeps port away from caddy during payout.
- The XL reel caddy supports reels up to 33 in. (838mm) in diameter and 24 in. (610mm) in width and is quick and simple to setup with one hand
- The XL can also be used to dispense mule tape or small reels of Microduct. The supplied two shafts accommodate reels with arbor diameters between 2 (51mm) and 3 (76mm) inches
Description
These large-diameter Reel caddies can be used to support and dispense drop cable quickly and easily. The caddy is lightweight and folds flat for compact storage. It’s fabricated from durable powder-coated steel tubing for years of dependable service.
