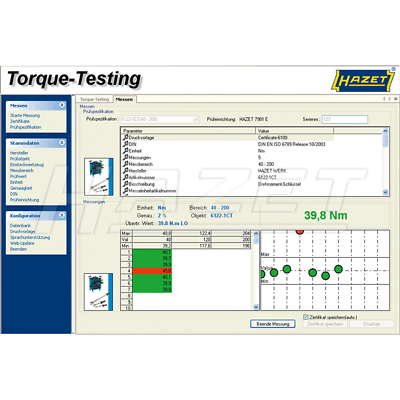

Hazet 7901E-D Torque Testing Software

Features

Application:

For creating, memorizing and printing professional torque test certificates

For the electronic torque testers 7901 E, 7902 E and 7903 E

Database (updates will be available) of all current HAZET torque wrenches (whose test values are in the range of 1 –1000 Nm) and insert tools included

Optional expansion of the database to include data of other manufacturers, further release torque wrenches (click-type), insert tool holders, measuring ranges, test values, units, tolerances and standards

Software for creating user-own certificate layouts and optional integration of company logos

Language tool included. German and English is already available. By means of the language tool, the user creates the operating surface, tables and designation of boxes in any required language

Internet update function

Detailed documentation included

System requirements

Operating system: Windows 7® / Windows 8® / Windows 10® (64 bit)

Required storage space: min. 50 MB free storage space

Main storage: min. 256 MB

Connections: 1. USB port for software

2. Ports for test units

COM port (connection cable included with the electronic torque tester)

Graphic resolution: min. 1024 x 768

Caution:

If the hardware does not have a COM port, the test unit can also be connected with a USB adapter to COM port (RS 232) (not included in delivery)

Made in Germany

Net weight: 0.1 kg
