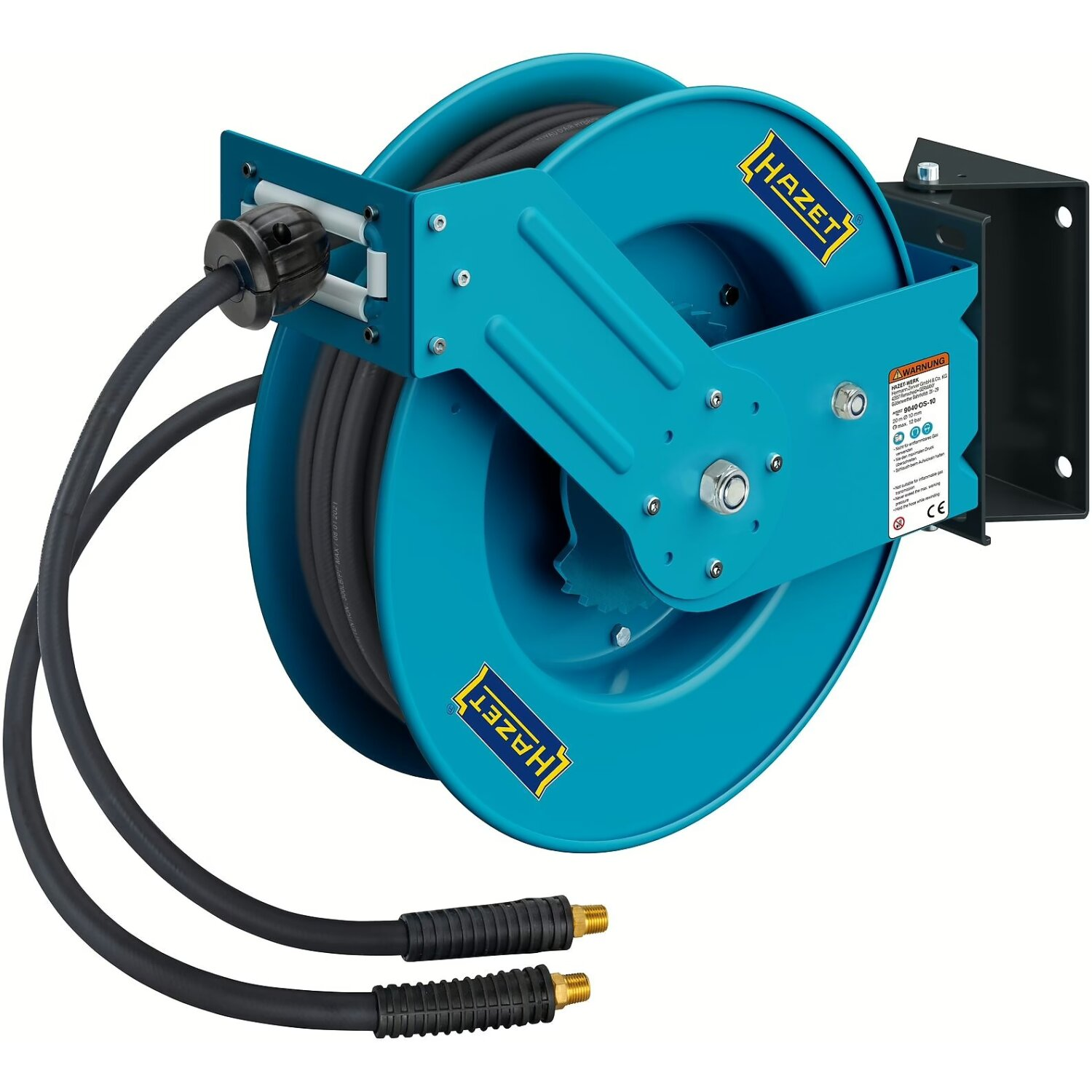

Hazet 9040OS-10 Hose Reel Open

Hazet

4000896252602

9040OS-10

Hose reel Open

400 mm

10 mm

Robust steel design with roller guide
Hose, inside ⌀: 10 mm
For compressed air
German air connection nipple for air inlet (9000-015)
End stop
Spring return with ratchet locking holders
Hybrid polymer hose, black
Integrated roller inlet
Swivel base – Maximum swivel range: 180°
Open design against accumulation of dirt
Visual inspection of the hose
Length of connection hose: 1 m
Installation via metal bracket or swivel base (included)
Drill template on cardboard packaging for easy installation

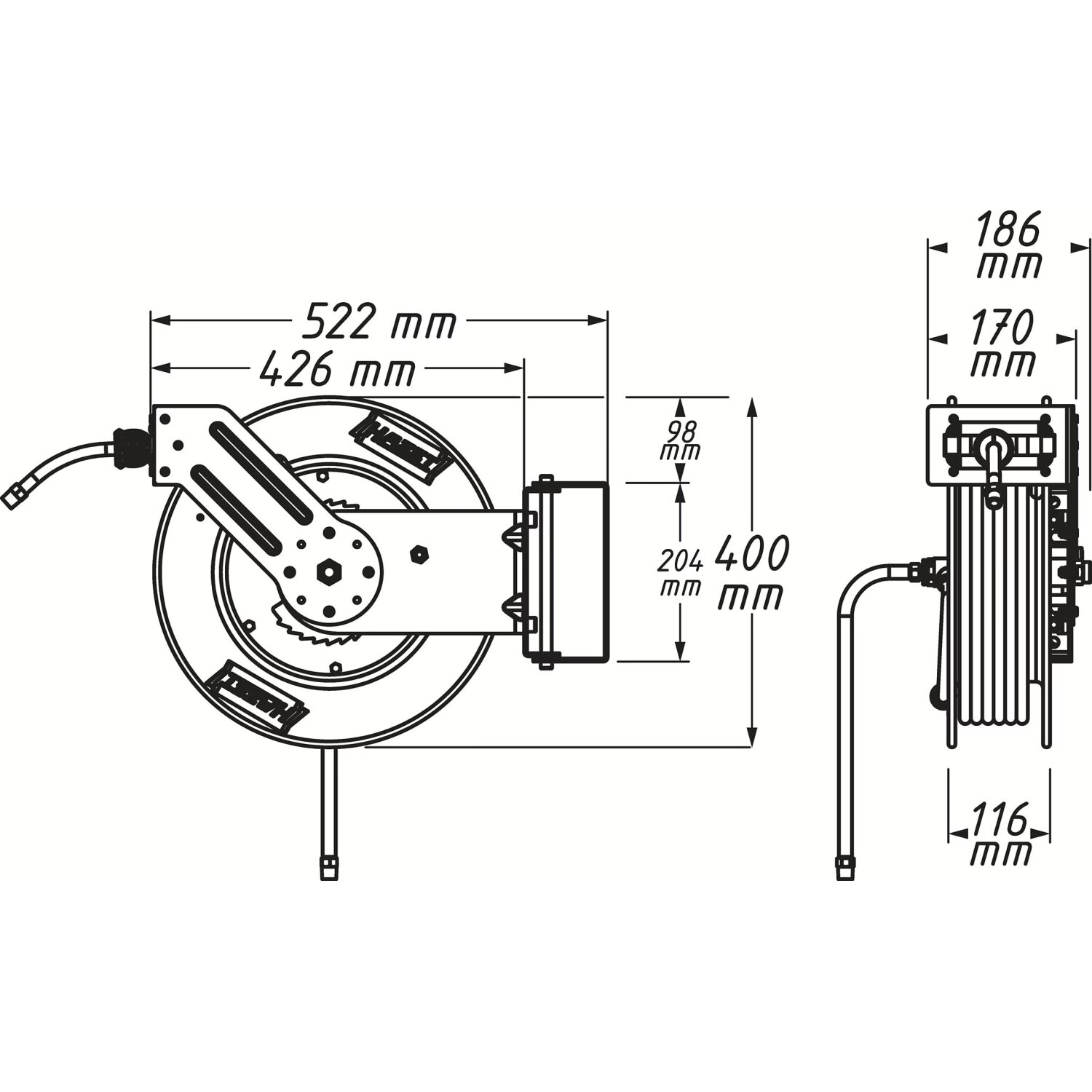

Dimensions: 400 x 186 x 522 mm (Including swivel base)
Can be used with HAZET safety clutch 9000-061
