3M Heat Shrinkable Medium Wall Polyolefin Tubing MDT-0800-48A-Red, 4Ft

3M Heat Shrinkable Medium Wall Polyolefin Tubing MDT-0800-48A-Red, 4Ft

by 3M
$320.99 - $320.99
$320.99
$320.99 - $320.99
$320.99
Free shipping
Extended Handling May Be Required
3M Heat Shrink Cable Sleeve MDT is a flexible, medium wall tubing that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio that offers primary electrical insulation for 1 kV rated... Read more

Overview

3M

3M Heat Shrinkable Medium Wall Polyolefin Tubing MDT-0800-48A-Red, 4Ft

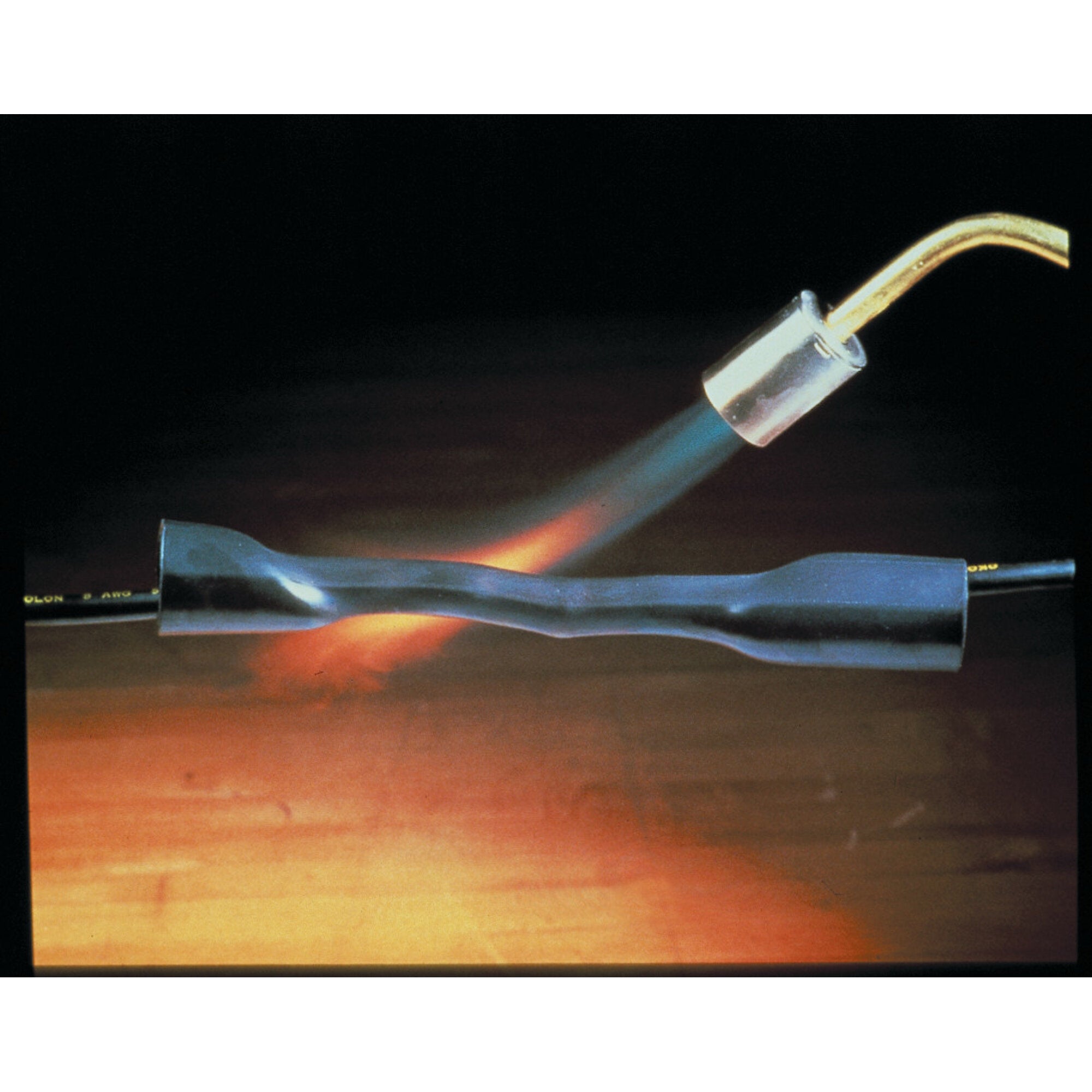

3M Heat Shrink Cable Sleeve MDT is a flexible, medium wall tubing that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio that offers primary electrical insulation for 1 kV rated applications. The flame retardant polyolefin construction features a thermoplastic sealant to provide moisture seal protection.3M™ Heat Shrink Cable Sleeve MDT isa flame retardant sleeve offers reliable performance for electrical splices, connections and terminations. The factory applied, heat activated, thermoplastic sealant acts as a barrier against adverse environmental conditions. It is fast shrinking for easy handling and installation while maintaining maximum operating reliability and system protection. It withstands temperatures of 67 to 230 degrees F ( 55 to 110 degrees C). ABS, SAE AS23053/15, Class 2 Certified and RoHS 2011/65/EU Compliant.
  • Superior resistance to abrasion, corrosion and chemicals
  • Offers reliable performance for electrical splices, connections and terminations
  • Suitable for large transitions, splices and battery cables
  • Made of black cross-linked polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant

Product Details

General Information
Brand
3M™
Product Type
Heat Shrink MDT
Tubing Type
Medium Wall
Country Of Origin
United States
Sold As
Case
California Residents
Proposition 65 Warning
Dimensions and Specifications
Cable Size Range
8-3 AWG
Expanded Inner Diameter
0.8 in
Expanded Inner Diameter (Metric)
20.3 mm
Inner Diameter After Shrink (Imperial)
0.27 in
Inner Diameter After Shrink (Metric)
6.77 mm
Inner Diameter Before Shrink (Imperial)
0.8 in
Inner Diameter Before Shrink (Metric)
20.3 mm
Maximum Operating Temperature (Celsius)
110 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
230 Degree Fahrenheit
Minimum Shrink Temperature (Celsius)
121 Degree Celsius
Minimum Shrink Temperature (Fahrenheit)
250 °F
Operating Temperature (Celsius)
-55 to 100 Degrees Celsius
Operating Temperature Range (Celsius)
-55 °C to 110 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 230 °F
Overall Length (Imperial)
4 ft
Overall Length (Metric)
1.22 m
Recovered Inner Diameter
0.22 in
Recovered Inner Diameter (Metric)
5.1 mm
Sleeve Length
48 in
Tensile Strength (Imperial)
2400 Pound-Force Per Square Inch
Minimum Shrink Temperature Fahrenheit
250 °F
Operating Temperature Celsius
-55 to 100 Degrees Celsius
Overall Length Imperial
4.0
Width
6.46 in
16.4 cm
Height
6.38 in
16.2 cm
Length
51.02 in
129.6 cm
Volume
2101.18 cubic inch
34432.13 cm3
Weight
7.1 lb
3.22 kg
Other Details
Adhesive Lined
Yes
Chemical Resistant
Yes
Dielectric Strength
500 mV
Elongation
4.75 %
Flame Retardant
Yes
Shrink Ratio
3:1
Units Per Case
20.0
Tensile Strength Imperial
2400 Pound-Force Per Square Inch
Material and Composition
Adhesive Material
Hot melt adhesive layer
Material
Polyolefin
Shelf Life
3600
Color and Appearance
Product Color
Black
Certifications and Standards
Flammability Rating
Self-Extinguishing
