3M Scotchcast Sheath Seal 5832 (2131)

by 3M
No reviews
Original price $475.99 - Original price $475.99
Original price
$475.99
$475.99 - $475.99
Current price $475.99
Free shipping
3M Sheath Seal Kit is used to seal the sheath area for multi conductor cables with or without ground wires. This kit includes 1 wraparound mold body, 2 bags 3M Scotchcast Flame Retardant Compound 2131,... Read more
This product is made to order. Please allow 45 days for production.

Overview

3M

3M Scotchcast Sheath Seal 5832 (2131)

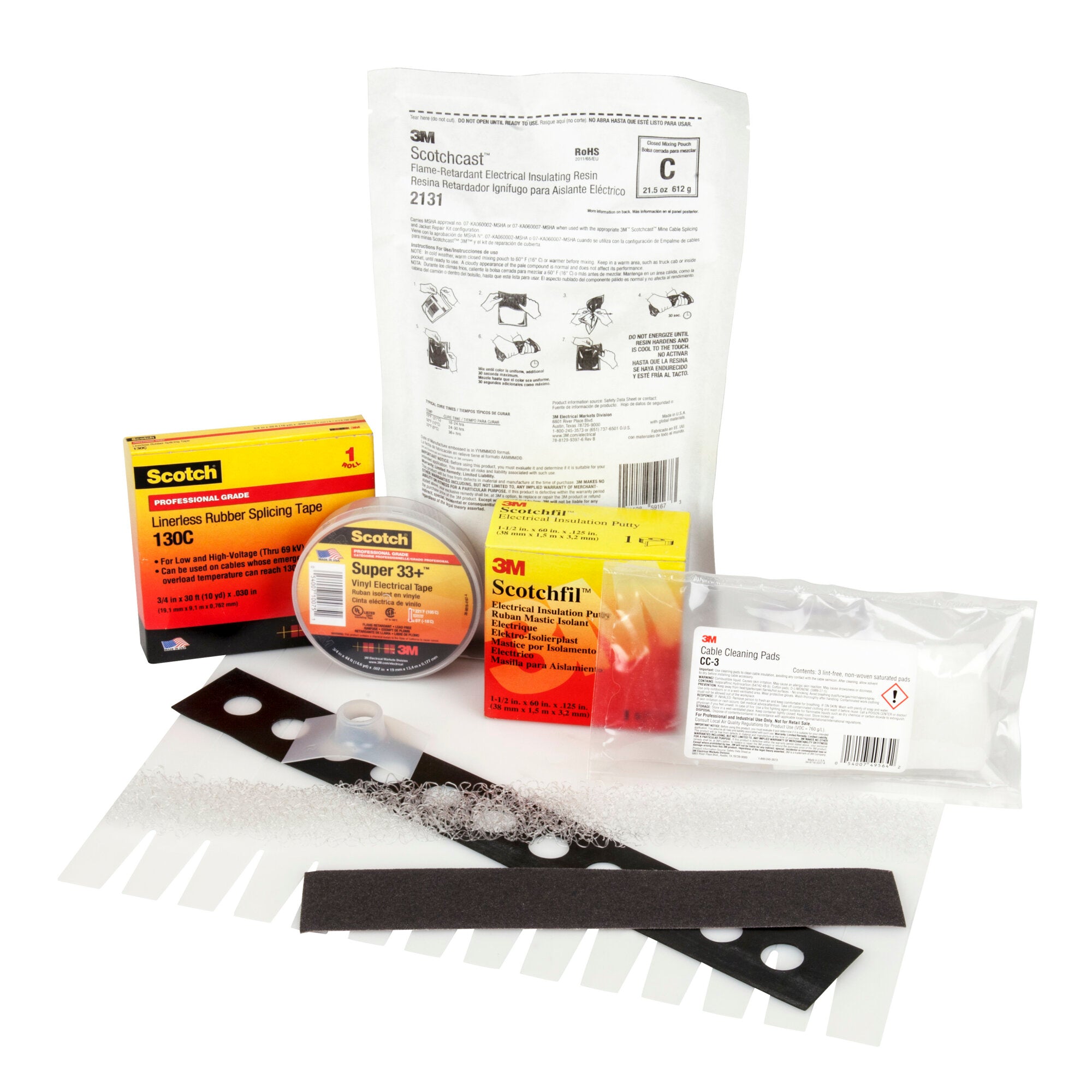

3M Sheath Seal Kit is used to seal the sheath area for multi conductor cables with or without ground wires. This kit includes 1 wraparound mold body, 2 bags 3M Scotchcast Flame Retardant Compound 2131, 1 3M Three M Ite Elek Tro Cut Abrasive Cloth, 1 roll Scotch Super 33+ Vinyl Electrical Tape, 2 rolls Scotch Linerless Rubber Splice Tape 130C and 3M Scotchfil Electrical Insulation Putty.3M™ Sheath Seal Kit is capable of offering a single seal. This kit works with copper or aluminum cables. A flame retardant compound is included in this kit that helps to replace the cable jacket when splicing or repairing mine and portable cables. RoHS 2011/65/EU Compliant‎.
  • Seals the sheath area for multi-conductor cables
  • Offers a single seal
  • Seals copper or aluminum cables
  • Flame-retardant compound 2131 replaces the cable jacket when splicing
  • RoHS 2011/65/EU Compliant‎

Product Details

General Information
Brand
Scotchcast™
Country Of Origin
United States
Lead Time
45 days
California Residents
Dimensions and Specifications
Conductor Sizes (Imperial)
4/0 AWG-500 kcmil
Inner Diameter Before Shrink (Imperial)
3.75 in
Inner Diameter Before Shrink (Metric)
95.3 mm
Maximum Conductor Size (Imperial)
500 kcmil
Maximum Conductor Size (Metric)
240 mm²
Maximum Jacket Or Armor Outside Diameter
3.75 in
Minimum Conductor Size (Imperial)
4/0 AWG
Minimum Conductor Size (Metric)
120 mm²
Maximum Conductor Size Imperial
500 kcmil
Maximum Conductor Size Metric
240 mm²
Minimum Conductor Size Imperial
4/0 AWG
Minimum Conductor Size Metric
120 mm²
Other Details
Cable Accessory Products
Electrical Resins
Units Per Case
1.0
Material and Composition
Shelf Life
1080
