3M Scotchlok Electrical IDC 801

3M Scotchlok Electrical IDC 801

by 3M
No reviews
$12.50 - $12.50
$12.50
$12.50 - $12.50
$12.50
Free shipping

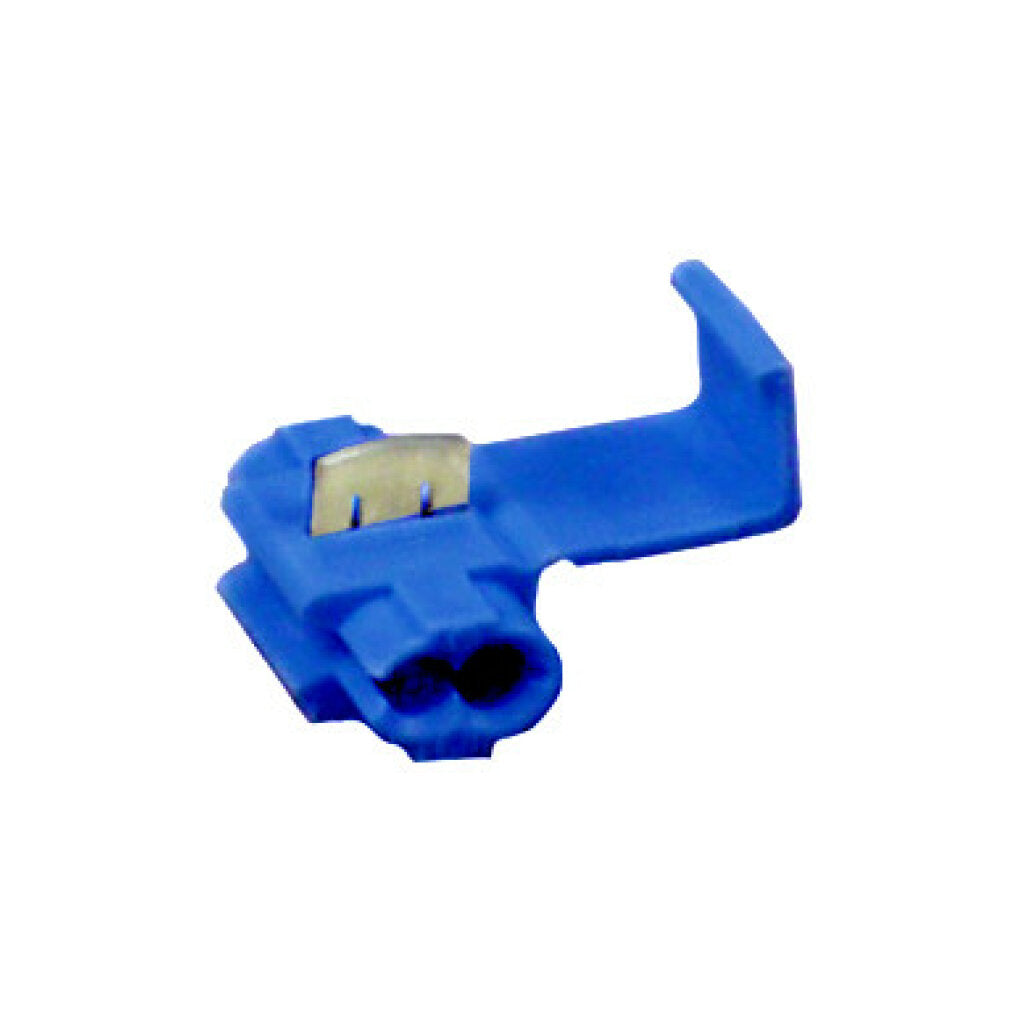

3M Scotchlok Insulation Displacement Connector 801 is a double run or tap connector for tap or parallel splicing. It is suitable for general purpose electrical connections on an auto, boat, van or trailer. Polypropylene insulated,... Read more
Please allow 2 days for production.

Overview

3M

3M Scotchlok Electrical IDC 801

3M Scotchlok Insulation Displacement Connector 801 is a double run or tap connector for tap or parallel splicing. It is suitable for general purpose electrical connections on an auto, boat, van or trailer. Polypropylene insulated, self stripping and flame retardant.3M™ Scotchlok™ Insulation Displacement Connector 801 is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Blue, polypropylene-insulated connector is suitable for tap or parallel splicing
  • Suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring
  • Accommodates 18 to 16 AWG solid/stranded or 14 AWG stranded
  • UL Listed and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
Scotchlok™
Connection Type
Double Run or Tap
Connector Style
Insulation Displacement
Product Type
Connector
Country Of Origin
United States
Lead Time
2 days
California Residents
Proposition 65 Warning
Dimensions and Specifications
Conductor Sizes (Imperial)
14 AWG (Stranded)
Conductor Sizes (Metric)
2.5 mm² (Stranded)
Maximum Conductor Size (Imperial)
16 AWG
Maximum Conductor Size (Metric)
1.5 mm²
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
221 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Minimum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Metric)
1 mm²
Run Maximum Insulation Outer Diameter (Imperial)
0.145 in
Run Maximum Insulation Outer Diameter (Metric)
3.7 mm
Tap Maximum Insulation Outer Diameter (Imperial)
0.145 in
Tap Maximum Insulation Outer Diameter (Metric)
3.7 mm
Voltage Application
Low Voltage
Conductor Sizes Imperial
18 AWG
14 AWG (Stranded)
16 AWG
Maximum Conductor Size Imperial
16 AWG
14 AWG (Stranded)
Maximum Conductor Size Metric
1.5
Minimum Conductor Size Imperial
18 AWG
Minimum Conductor Size Metric
1 mm²
Other Details
Connector / Connector Tool
3M Crimping Tool E-9BM and/or 9" Lineman's Pliers
Flame Retardant
Yes
Grease Filling Against Corrosion
No
Moisture Resistant
No
Package Quantity
50
Recommended Crimping Tool
E-9BM or 9 in. Linemans Pliers
UL File Number
E23438
Units Per Case
1000.0
Material and Composition
Insulation Material
Polypropylene
Material
Insulator: FR Polypropylene, U-contact: Tin-plated Brass
Color and Appearance
Insulation Color
Blue
Product Color
Blue
Packaging and Shipping
Packaging
Pouch
