3M Scotchlok Female Disconnect 972-A

by 3M
Original price $840.99 - Original price $840.99
Original price
$840.99
$840.99 - $840.99
Current price $840.99
Free shipping
Work in hot conditions by using this 3M Scotchlok 972-A Fuse Holder Female Disconnect. It's made of blue polypropylene insulation and is used specifically to install a blade-type automotive fuse in between a power source... Read more
Please allow 2 days for production.

Overview

3M

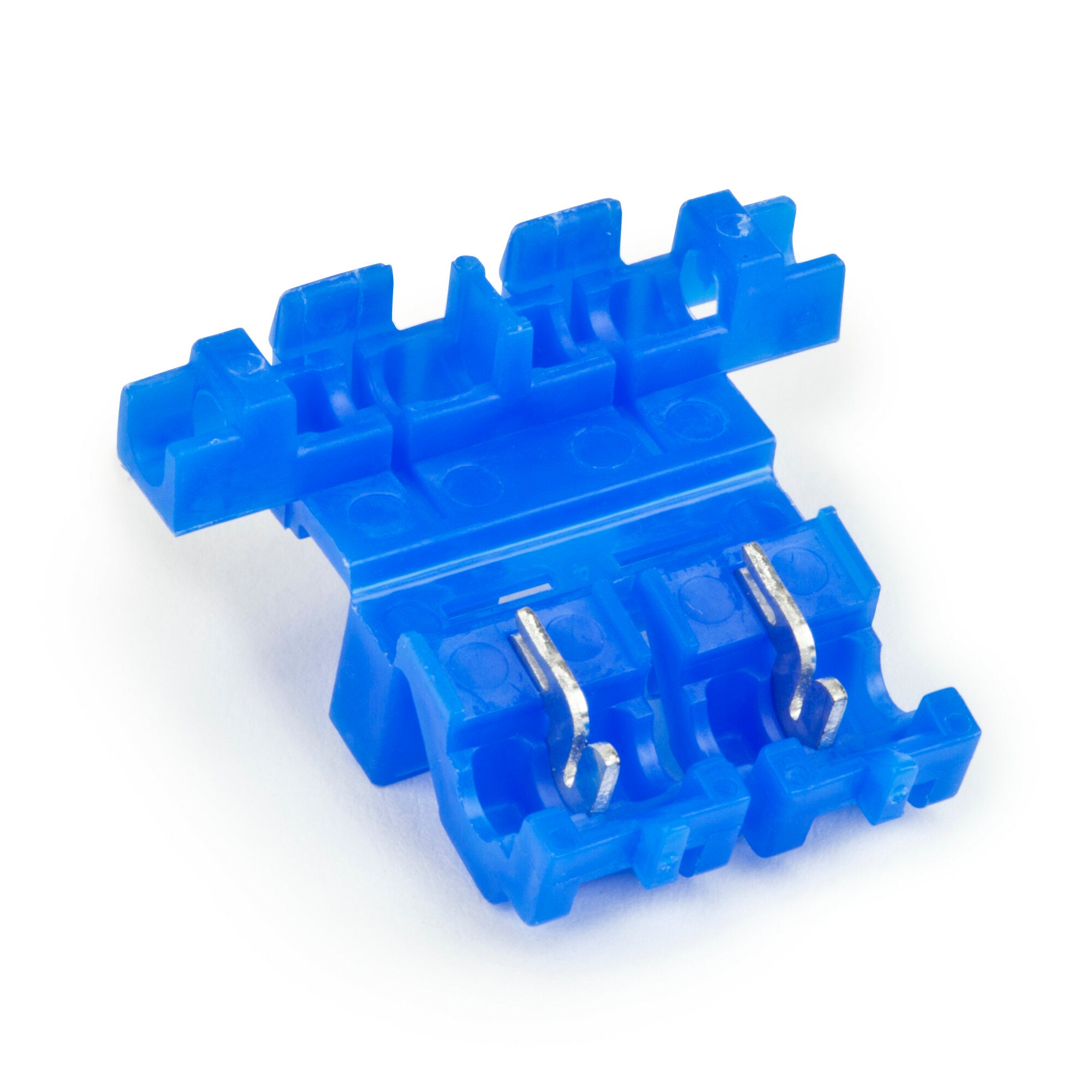

3M Scotchlok Female Disconnect 972-A

Work in hot conditions by using this 3M Scotchlok 972-A Fuse Holder Female Disconnect. It's made of blue polypropylene insulation and is used specifically to install a blade-type automotive fuse in between a power source and a device. 3M fuse holders work well with solid or stranded wires ranging in sizes from 18 to 14 AWG, even in high temperatures up to 221 degrees F (105 degrees C).
  • Color-coded for quick and easy identification of the wire size
  • Brass element construction for good conductivity and tin plating for corrosion resistance
  • Withstands temperatures of 221 °F (105 °C)
  • Made of insulated and self-stripping polypropylene

Product Details

General Information
Brand
Scotchlok™
Connection Type
Wire
Connector Style
Insulation Displacement
Product Type
Connector
Terminal Type
Fuse
Wire Connector Type
IDC Connectors
Country Of Origin
Taiwan
Lead Time
2 days
California Residents
Dimensions and Specifications
Conductor Sizes (Imperial)
14 AWG
Conductor Sizes (Metric)
2.5 mm²
Diameter (D)
0.23 Inch
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
221 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Overall Diameter (Imperial)
0.23 in
Overall Width (Imperial)
0.37 in
Pad Width
0.25 in
Run Maximum Insulation Outer Diameter (Imperial)
0.145 in
Run Maximum Insulation Outer Diameter (Metric)
3.7 mm
Tap Maximum Insulation Outer Diameter (Imperial)
0.145 in
Tap Maximum Insulation Outer Diameter (Metric)
3.7 mm
Conductor Sizes Imperial
18 AWG
14 AWG
Other Details
Connector / Connector Tool
Connector
Fastener Orientation
Female
Flame Retardant
No
Grease Filling Against Corrosion
No
Interrupt Free Shifting
No
Max. Number Of Cores
1
Moisture Resistant
No
Package Quantity
1000
Family
IDC for Electrical Applications
Material and Composition
Insulation Material
Polypropylene
Material
Plastic
Color and Appearance
Insulation Color
Blue
Packaging and Shipping
Packaging
Bulk
