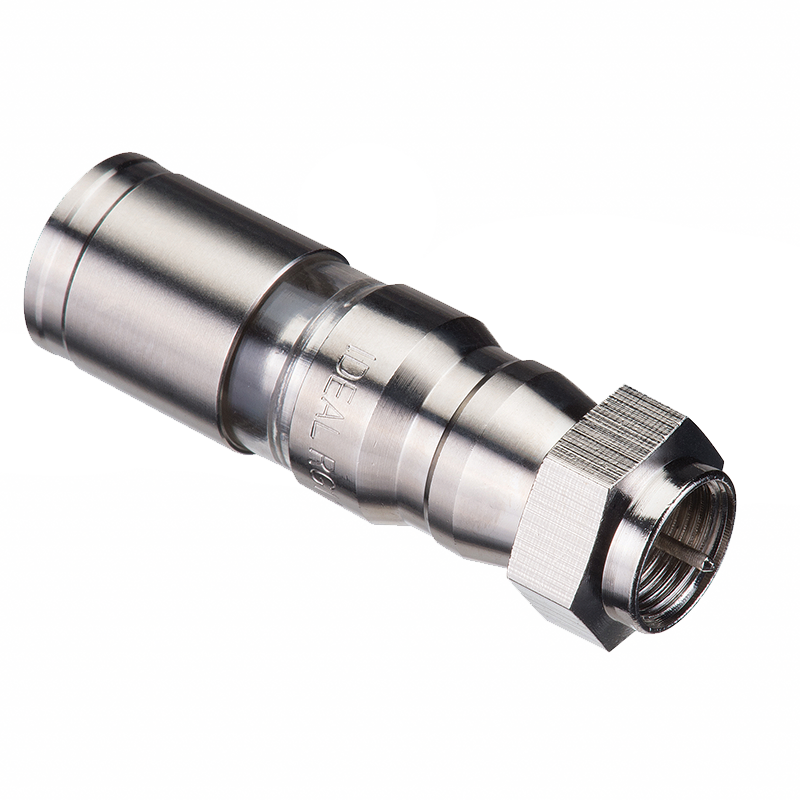

Ideal 89-211 InSITE RTQ RG-11 F Compression Connector - 10/Pack

by IDEAL
No reviews
Original price $79.99 - Original price $79.99
Original price
$79.99
$79.99 - $79.99
Current price $79.99
Free shipping
Connector Model: 11FISRTQ Features InSITE™ Technology Accepts RG-11/RG-11 Quad coax cables Center conductor range: 18-14 AWG Solid (.062” - .066”) Dielectric diameter range: .280” - .285” Outer jacket diameter range: .390” - .416” Recommended cable... Read more

Overview

IDEAL

Ideal 89-211 InSITE RTQ RG-11 F Compression Connector - 10/Pack

Connector Model: 11FISRTQ

Features InSITE™ Technology

Accepts RG-11/RG-11 Quad coax cables

Center conductor range: 18-14 AWG Solid (.062” - .066”)

Dielectric diameter range: .280” - .285”

Outer jacket diameter range: .390” - .416”

Recommended cable prep/stripping tool: 45-111

Recommended compression tool: 30-793 OmniSeal™ PRO XL



Installing one-piece compression RG-11 F connectors just got easier. No more uncertainty when inserting the cable into the connector. No more collapsed center pins. No more wasted connectors and rework time on the job.

With the patented InSITE™ Technology feature, now standard on all IDEAL RG-11 compression connectors, field termination of these blind entry connectors is simpler, faster and now provides a higher performance connection for all video based applications.

The InSITE window is a 360° clear window which allows the installer to verify that the prepped cable has been inserted far enough into the connector to make contact with the fixed pin-before the connector is compressed.

All IDEAL compression connectors require a ¼” x ¼” industry standard coax preparation. The prepped cable is then inserted into the connector until the folded braiding is visible within the InSITE window. No measuring, no jacket marking, no guesswork – a confident connection every time.

In addition to the InSITE feature, other improvements have been made to our RG-11 F connectors:



Increased ranges of compatible cable jacket diameters – works with more cable types and cable manufacturers

RTQ™ design allows Regular/Tri/Quad shield cables to work in the RG-11 non-plenum connector

Lower cable insertion force – easier to push the connector on to the cable

A redesigned funneled pin entry - centers angled pins, reduces pin collapsing



A patented compression sleeve design allows Regular (dual), Tri and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors.

RG-11 sized connectors are available for use in applications and installations from 5MHz to 3GHz, including CATV and satellite trunk/distribution lines. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aides in cable retention

An RG-11 Plenum sized version is available and features a fitted mandrel for the smaller diameter plenum cable dielectric and thinner flame retardant jacket material.

All RTQ™ connectors require an industry standard ¼” x ¼” cable preparation and are permanently attached to the cable when using an IDEAL OmniSeal™ Pro compression tool.



RTQ™ design allows Regular/Tri/Quad shield cables to work in a single connector – no need to carry cable specific connectors

Designed for use in cable and satellite TV installations

WeatherProof™ - internal O-ring and patented back seal prevent moisture migration for indoor/outdoor use

Compresses in 30-793 tool without tool adjustment or adapters

Return loss: >25dB up to 1 GHz

All brass, with nickel plated bodies

Fixed pin won’t come lose or pop out of the connector

Designed for optimal performance on 75Ω coaxial cables

Frequency range: 0 MHz to 3 GHz

>40 pounds cable retention on all models

7/16” nut diameter with 3/8-32 thread


Product Details

General Information
Manufacturer
IDEAL
Part Number
89-211
Product Type
Compression Connector
California Residents
Specifications
Color
Metallic
Material
Nickel Plated Brass
Miscellaneous
What's Included
InSITE RTQ RG-11 F Compression Connector - 10/Pack
Features
The InSITE window a 360 clear window which allows the installer to verify that the prepped cable has been inserted far enough into the connector to make contact with the fixed pin before the connector is compressed
