Aven 26100-244 Mighty Cam 3.0 USB Camera 5M with ezMeasure Software

by Aven
Original price $899.99 - Original price $899.99
Original price
$899.99
$899.99 - $899.99
Current price $899.99
Free shipping
Inspect From Your PC In Real TimeAven’s Mighty Cam is equipped with a 6 megapixel sensor and a USB 3.0 output, providing stunning, true-to-life images with minimal lag time.Save Images, Make Measurements, Create ReportsThe included... Read more

Overview

Brand img

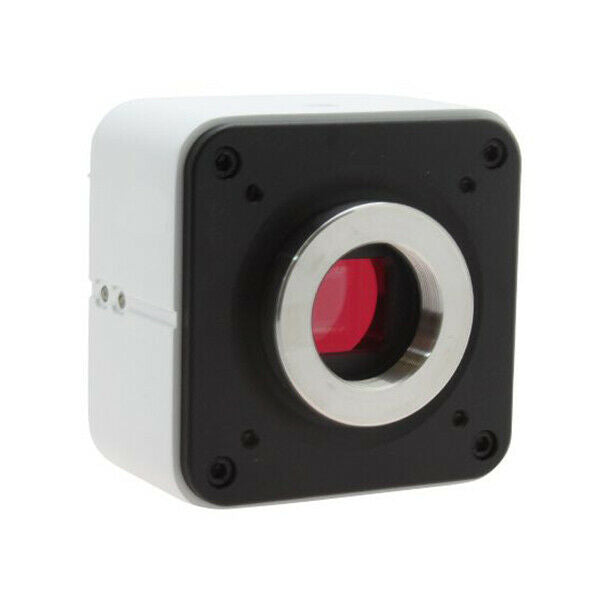

Aven 26100-244 Mighty Cam 3.0 USB Camera 5M with ezMeasure Software

Inspect From Your PC In Real Time

Aven’s Mighty Cam is equipped with a 6 megapixel sensor and a USB 3.0 output, providing stunning, true-to-life images with minimal lag time.

Save Images, Make Measurements, Create Reports

The included software provides an easy-to-use, yet sophisticated interface for saving high resolution images, writing annotations, generating reports and accurate measurements. This user-friendly interface is ideal for saving critical data and sharing information.

Real-Time Depth Of Field Adjustment

When inspecting at high magnification, certain areas of specimen may not be in focus depending on the depth of the object. With the Real-Time Depth of Field feature, operators can adjust the focus parameters, with no need to adjust the physical optics.

Create Panoramic Images

The software provides a "real-time image stitching" function. It can generate large-sized panoramic images in a few seconds. Requires a gliding stage for optimal performance.

Excellent Image Performance

The use of a state-of-the-art ISP color-interpolation algorithm effectively corrects the color deviation of the sensor's spectral response, to simulate the human eye's sensitivity to color. The true color in the eyepiece, whether it is a biological bright field, stereo or fluorescence image.

Professional Grade Image Sensor

Mighty Cam utilizes a Sony 6 megapixel CMOS 1/1.8" sensor-IMX178, with 2.4 x 2.4 ?m pixels. The resolution of the captured image can reach 3072 x 2048.

C/CS Mount

Mighty Cam features a universal C/CS Mount, the Mighty Cam is compatible with industry standard trinocular microscopes and video lenses.

Mighty Cam Inspection Systems

Mighty Cam is a great addition to an existing inspection system, and is also available as part of these pre-designed systems


Product Details

General Information
Manufacturer
Aven
Part Number
26100-244
Product Type
Microscopes
