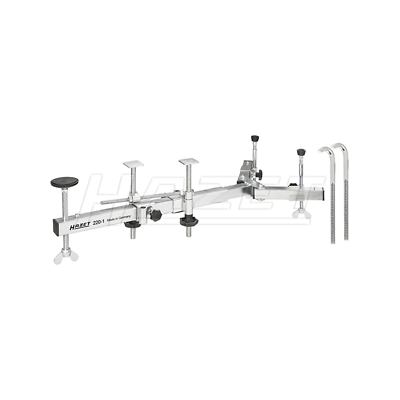

Hazet 220-1 Universal Engine Support

Features

Product information

Application:

Supports engine during maintenance work on thrust bearings, timing belts, water pumps or tensioner rollers

    For transverse engines

    Suitable for nearly all vehicle types

    After loosening the engine mount, the engine support safely holds the vehicle engine in the engine compartment (time savings and higher safety at work)

    Installation of the engine support underneath the motor vehicle allows optimal access during repair work (engine is supported from below), ensuring optimal working conditions in the engine compartment from above. This allows for optimal work in the engine compartment (from above).

    The most important advantage compared to work with engine lifting beam or engine crane (both are mounted above the engine and may obstruct repair works) is that the engine compartment is freely accessible

    Note for use of engine lifting beams:

    - The fenders of newer vehicles often slope or are made of plastic material. This means that, unlike with the HAZET universal engine support, classic engine lifting beams are often unsuitable and not mountable without damage

    Rubber covered feet with ball bearings allow flexible adjustment of the engine support

    Variable length: 620 – 900 mm

    Including 2 assembly holders

    Fully galvanised for optimal surface protection

    Manual operation through T-handles or wing screws

    Maximum loading capacity: 250 kg

    Made in Germany

    Net weight: 8.9 kg
