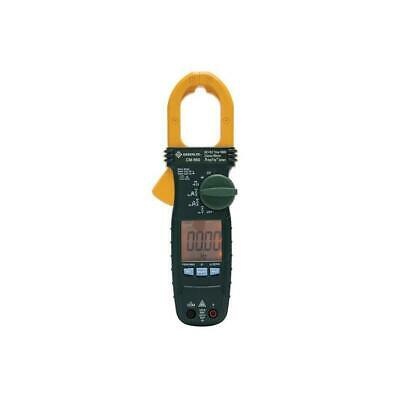

Greenlee CM-960-C Calibrated Clamp Meter, AC/DC, 600 Amp

Features

CM-960 Clamp meter with Certificate of Calibration

Measures AC+DC current

AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives

Also measures DC voltage, resistance, capacitance and frequency

Tests continuity and diodes

Peak-RMS measures motor inrush current

Backlight & relative mode for added versatility

AmpTip™ increases accuracy on small wires and low current

Two voltage detection modes - non-contact or using a single test lead

Data hold

Recording of Maximum, Minimum, and Average readings

Lifetime warranty with Greenlee

Amperage Measurement 60, 600 Amps AC+DC

Display LCD, 6000 Count

Frequency Rating Voltage and AmpTip&#8482 current: 50/60 Hz. High current: 50 to400 Hz

Includes (2) 1.5V AAA batteries, test leads, carrying case

Jaw Opening 1.18'' (30 mm)

Measurement Category CAT III 600V, CAT IV 300V

Replacement Part TSG-3 test leads, TC-10 carrying case

Resistance Measurement 600, 6k, 60k Ohms

Standard CAT III, C/US UL Listed, CE

True Power AC+DC True RMS

Voltage Measurement 600 Volts AC+DC
