Details
Features

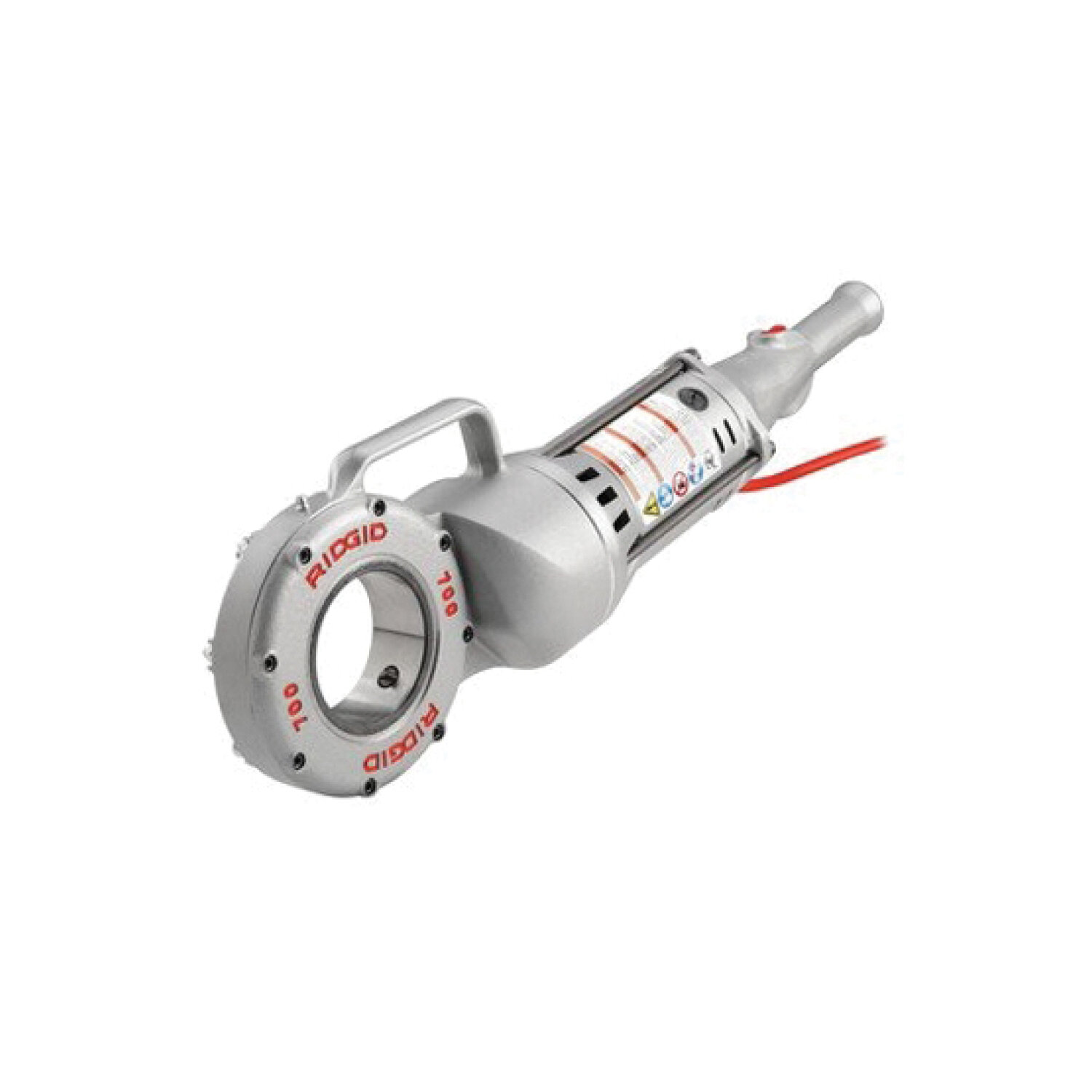

Designed for pipe and conduit threading in heavy-duty mechanical, electrical, and plumbing applications
Highly durable and proven to be the industry workhorse for decades
For 12-R Die Heads for ⅛ to 2" pipe capacity, it threads bolts ¼ to 1"
Also drives 141 & 161 Geared Threaders (for increased pipe capacity of 2½ to 6")
Size
Threading Capacity:
1/8" to 2" (6 - 50 mm) Pipe
1/4" to 1" (8 - 25 mm) Bolt* (*Using 00-RB Die Heads)
Switch: Double Throw Reversible
Motor Type: Single Phase, Universal
Gear Head: Spur gear reduction face gear drive; spring-loaded adapter pawls; hardened steel spindle gear
Compatible Die Heads: 12-R; with adapters: 00-R, 00-RB, 11-R
Certifications/Approvals: UL, CSA, RoHS, WEEE
