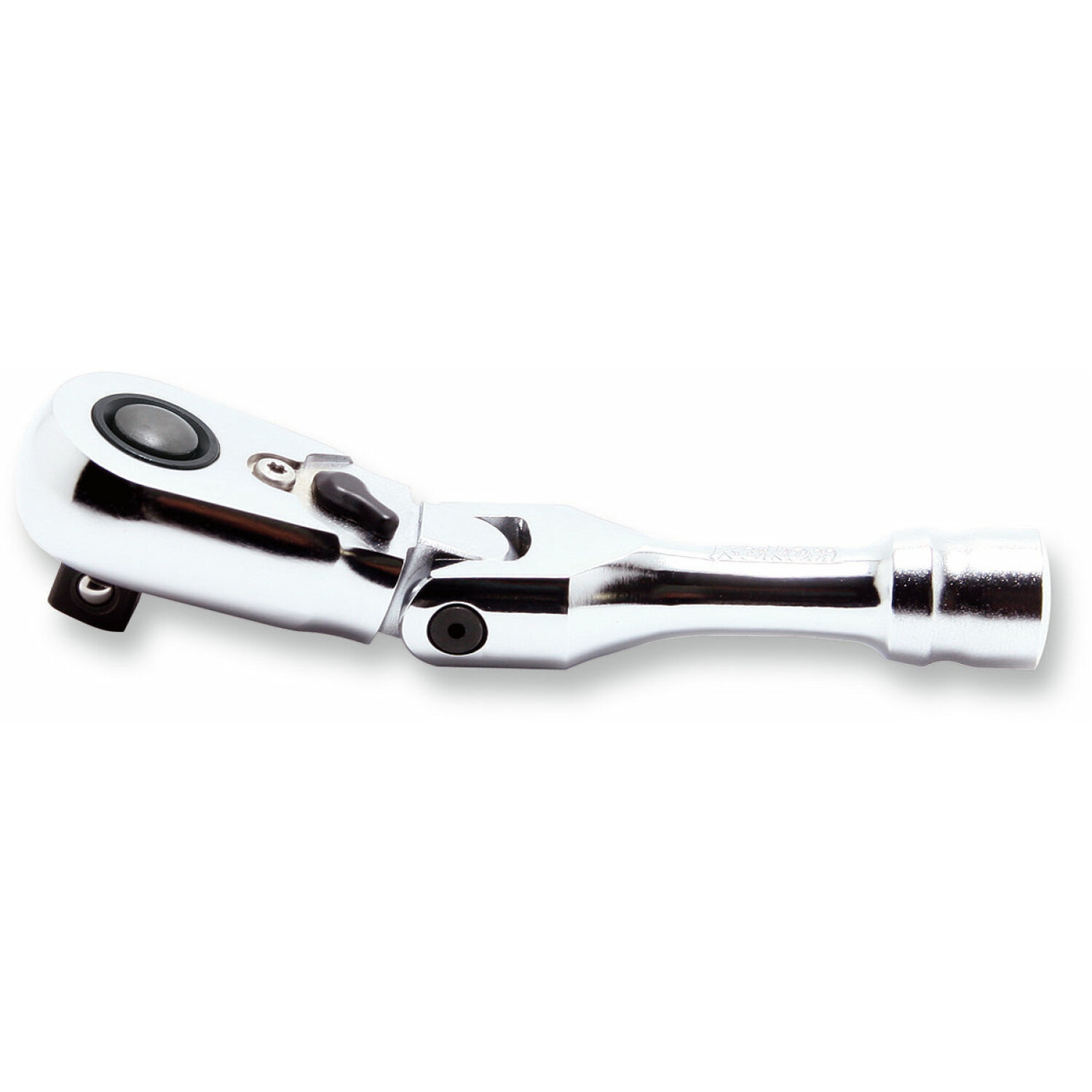

Ko-ken 3726ZSB 3/8" Sq.Dr. Ratchet Handle 72 teeth Short, Flexible Head Length 100mm Quick Release Z-series
by
Ko-Ken Tools
About this item
Ko-ken 3726ZSB 3/8" Sq.Dr. Ratchet Handle 72 teeth Short, Flexible Head Length 100mm Quick Release Z-series
- 3726ZSB
- Ko-Ken Tools
- Ratchets and Handles
Features
Downloads
No files available.
Key points
- Input Drive Size : 3/8"
- Drive Shape : Square
- Head Type : Flex Quick-Release
- Gear Teeth : 72 Teeth

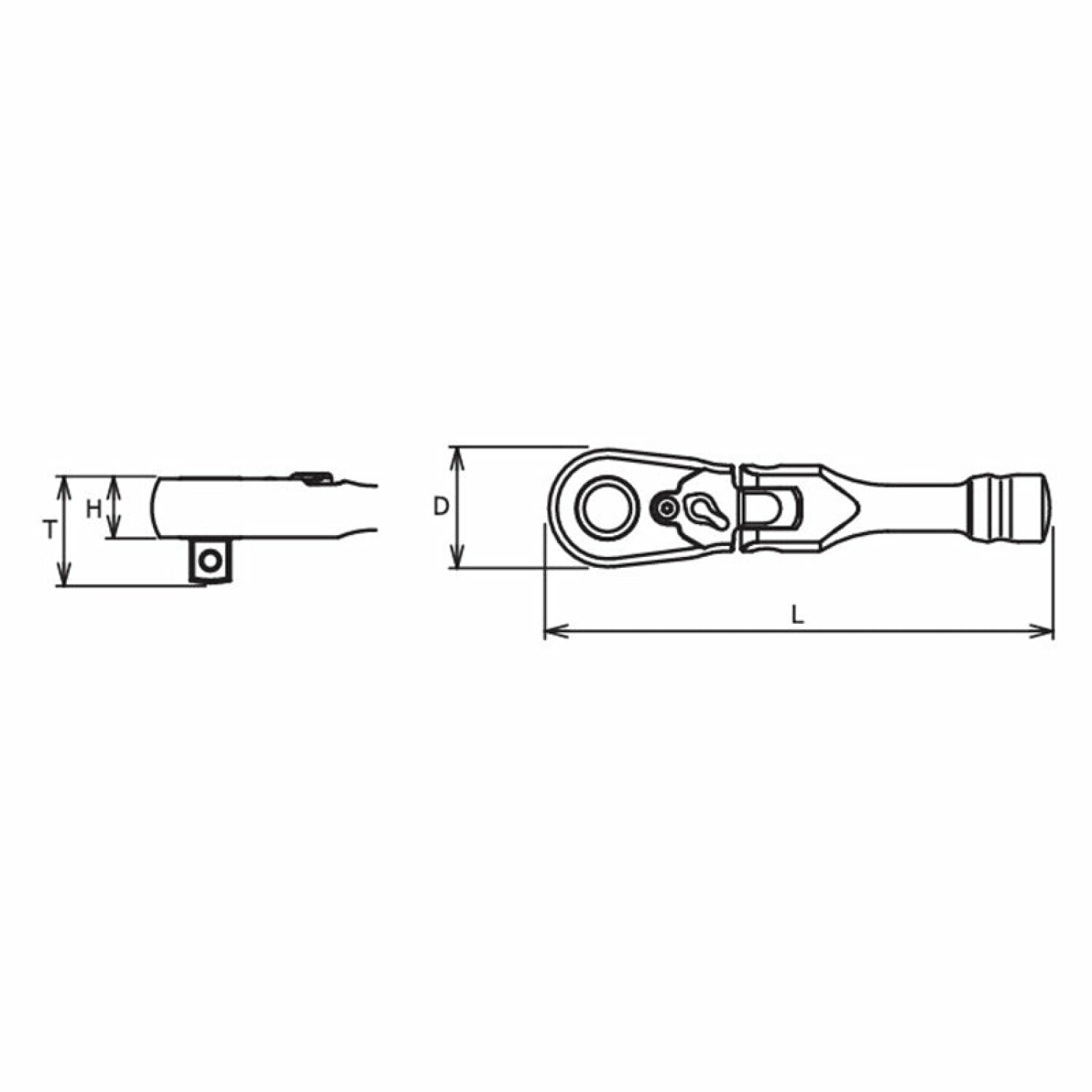

- T Size : 24.5mm
Description
Ko-ken ratchets are known for their very low backlash, small head sizes, and high torque ranges. We designed the new 72 tooth ratchet without compromising on our traditional strengths. The patented design of the 72T combines the low backlash, small size, and has a 10% higher torque limit in comparison to the 36 tooth ratchet. The legacy 36 tooth ratchets move 10°/click. The new 72 tooth ratchets move 5°/click The design changes include moving from the single pawl of the 36 tooth design to the patented dual pawl of the 72 tooth design. The dual pawl 72 tooth design utilizes a single spring. We took four years of testing to perfect the low spring pressure needed to maintain Ko-ken's hallmark low-torque backlash. The finer 72 teeth design creates more surface area contact with the gear; thus, it has a 10% higher torque upper limit.72 Tooth Z-Series Ratchets with quick release button mechanism. The patented design of the 72T incorporates dual pawls. Ko-ken has ensured that their hallmark low backlash and small size are preserved. Through extensive testing over four years, they have achieved a delicate balance of low spring pressure to maintain the low-torque backlash characteristic of Ko-ken tools. Additionally, the finer 72 teeth design provides increased surface area contact with the gear, resulting in a 10% higher torque upper limit
