About this item
Ridgid 76475 K50-4 230V 50/60Hz Comb 4
- 76475
- Ridgid
- Drain Cleaning
Features
Downloads
No files available.
Key points
- Compact, versatile, professional’s machine. Capable of running three different size cables: 5⁄16" (8 mm), 3⁄8" (10 mm) and 5⁄8" (16 mm). The perfect, all-around sink, shower and floor drain machine. Weighs less than 40 lbs (18 kg)
- Unique, easy-to-use, instant-acting cable clutch maximizes operator control: Pull handle down and cable spins at 400 RPM. Release handle, cable stops instantly
- Uses sections of 5⁄8" (16 mm) cable, cleans 1 1⁄4 " (32 mm) to 4" (110 mm) lines up to 100' (30 m). C-8 best for 1 1⁄4 " (32 mm) - 3" (75 mm) drains. C-9 best for 2" (50 mm) - 4" (110 mm) drains
- Equipped with an A-17 adapter, runs up to 50' (15 m) of 5⁄16" (8 mm) or 35' (11 m) of 3⁄8" (10 mm) continuous length cable. 5⁄16" (8 mm) best for 3⁄4" (20 mm) to 1 1⁄2" (40 mm) lines. 3⁄8" (10 mm) best for 1 1⁄4" (32 mm) to 2" (50 mm) lines
- Equipped with 300W motor
Description

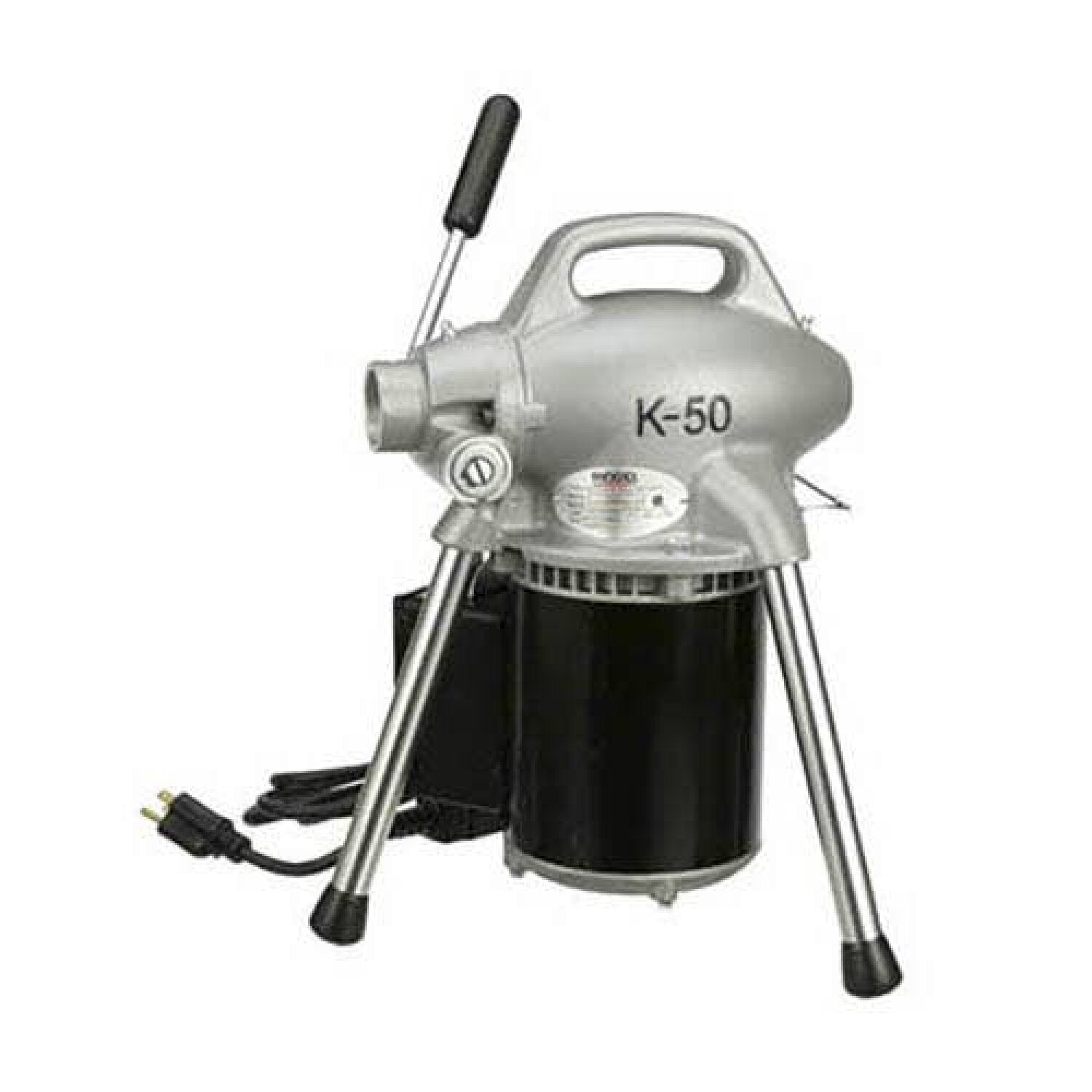

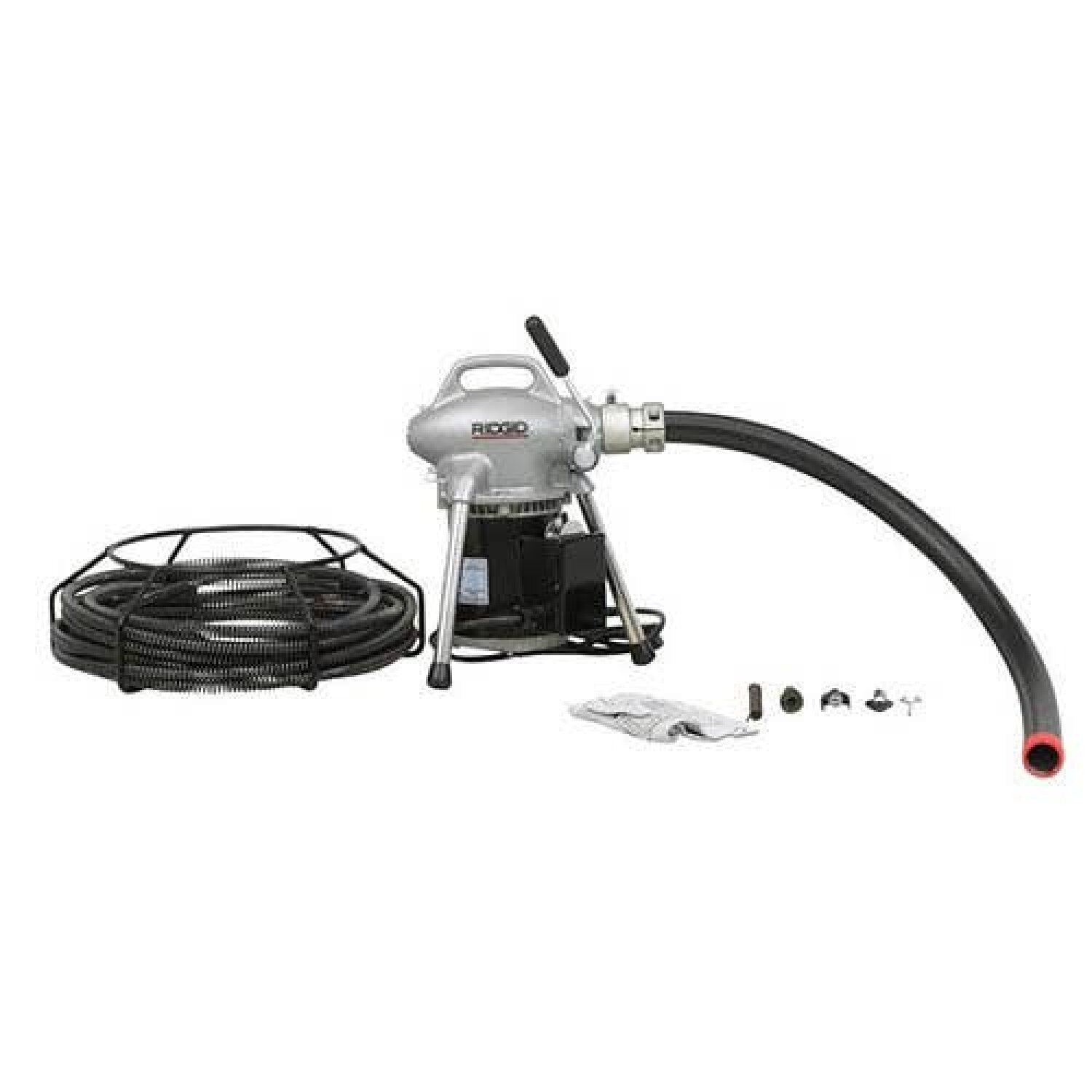

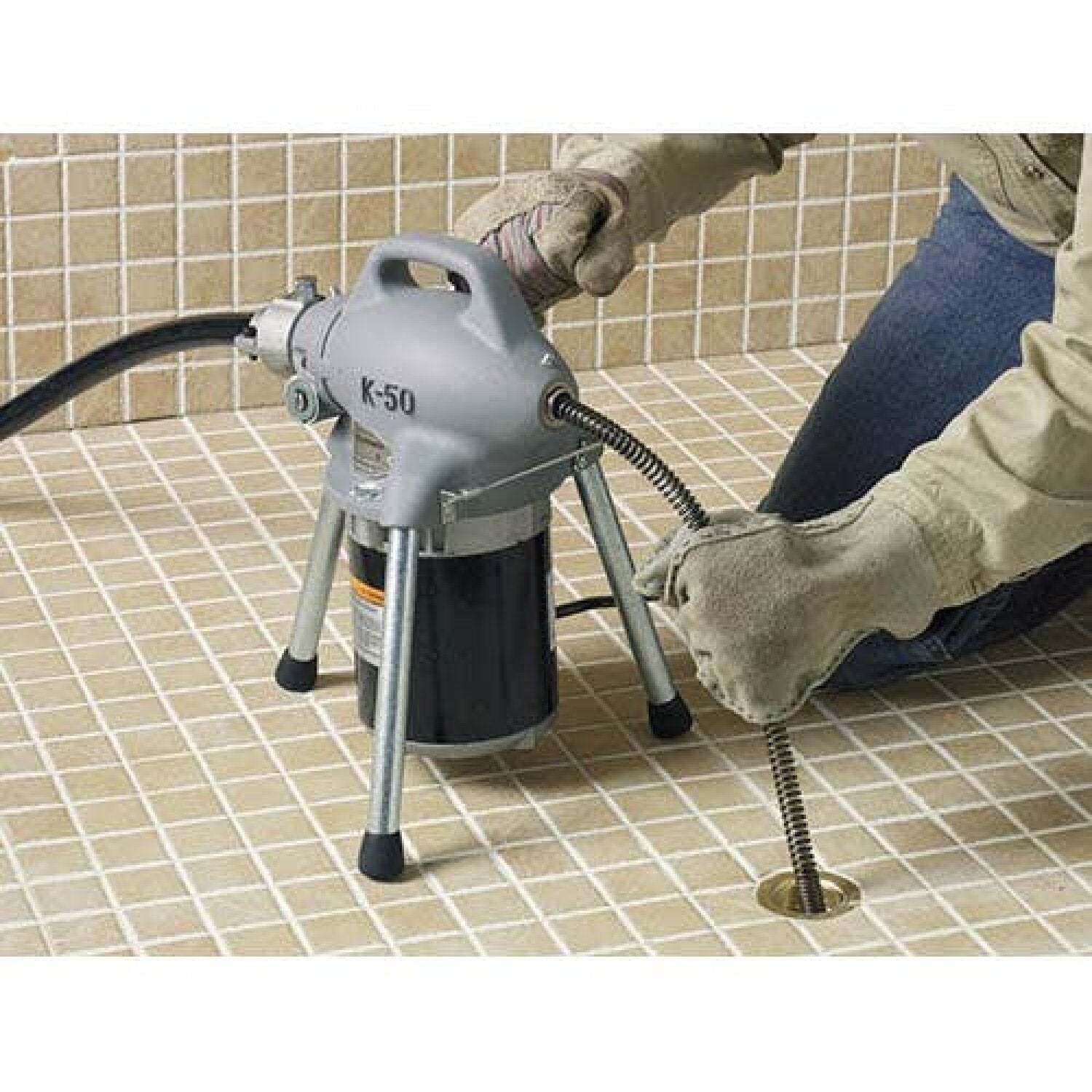

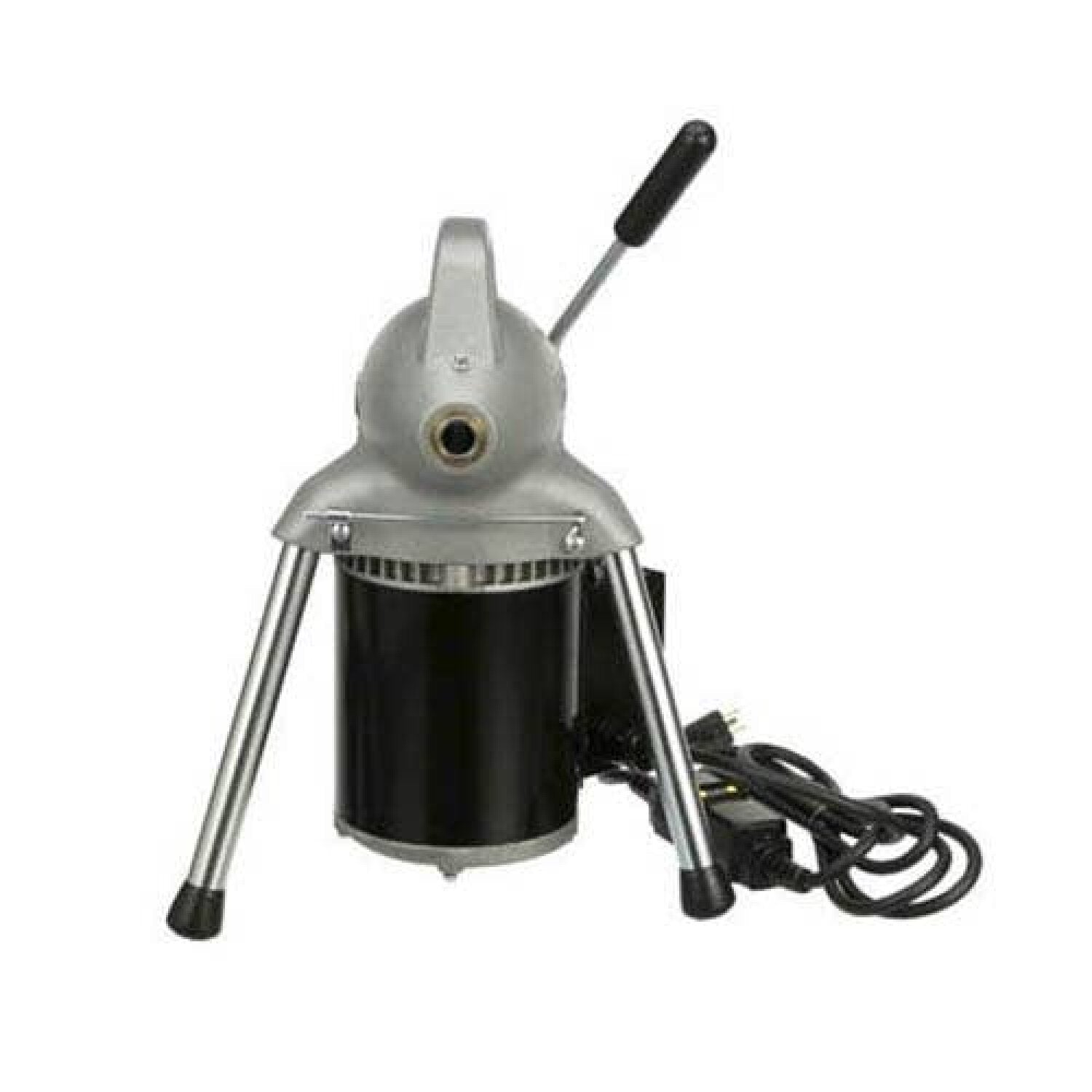

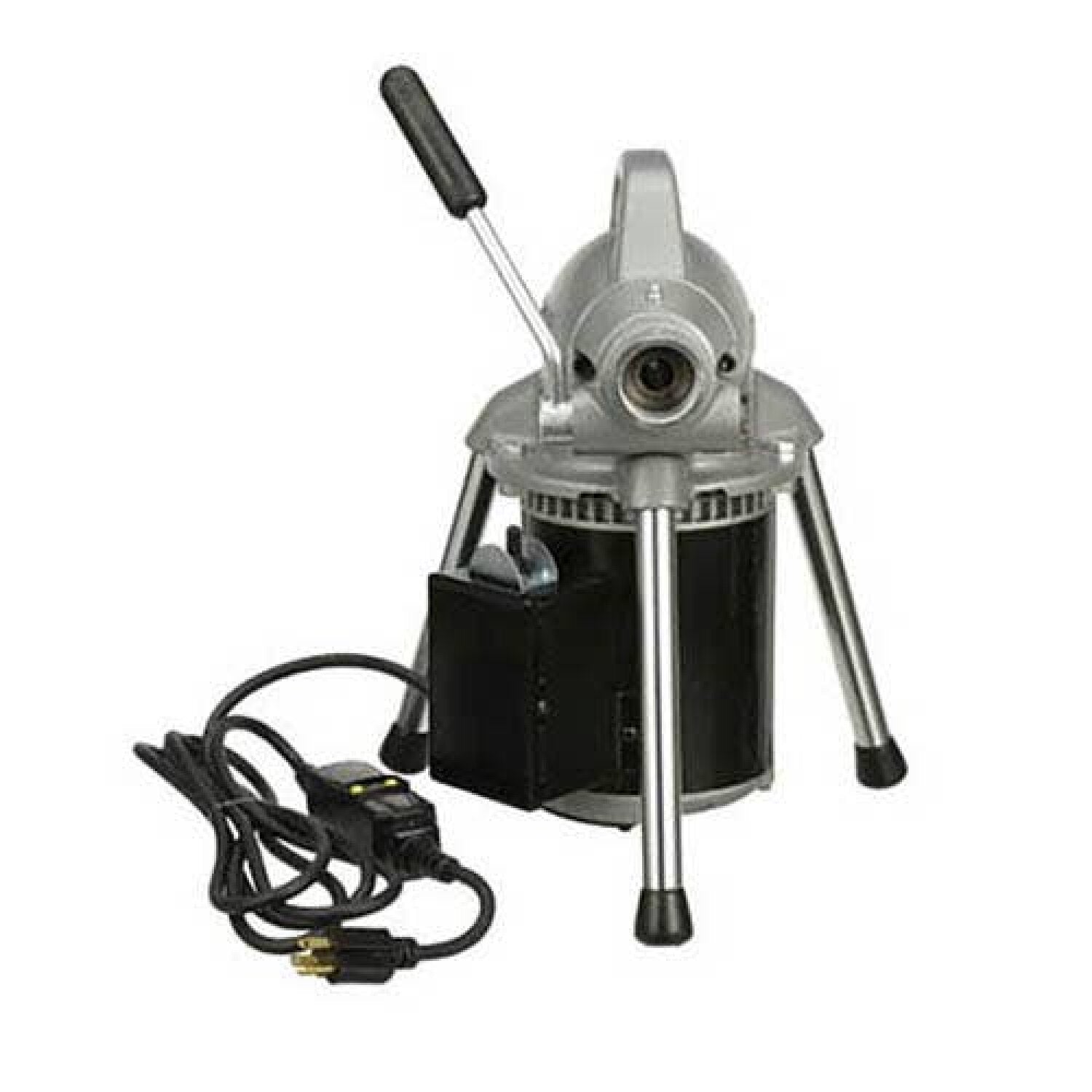

The RIDGID K-50-4 230V (76475) Sectional Drain Cleaning Machine for 3/4 in. to 4 in. Drain Lines, with A-30 Cable Kit (230V) is a portable drain cleaning machine designed to clean 1 1/4 in. to 4 in. drain lines. Applications include sink, shower and floor drains. The machine is capable of running three different size cables: 5/16", 3/8" and 5/8". The K-50 machine is driven by a 1/6 HP motor that has a grounded electrical system. An integral Ground Fault Interrupter (GFCI) is built into the line cord. A toggle switch provides FORWARD/OFF/REVERSE control of the motor. The K-50 is designed to use 5/8" diameter sectional-type cable that has a quick change coupling system for disconnecting tools. The cable is manually fed in and out of the drain and rotates at a speed of 400 RPM. The rotation of the cable is controlled by a clutch handle. The cable stops instantly when the clutch handle is released.
RIDGID Product Overview - K-50 Sectional Drain Cleaning Machine
